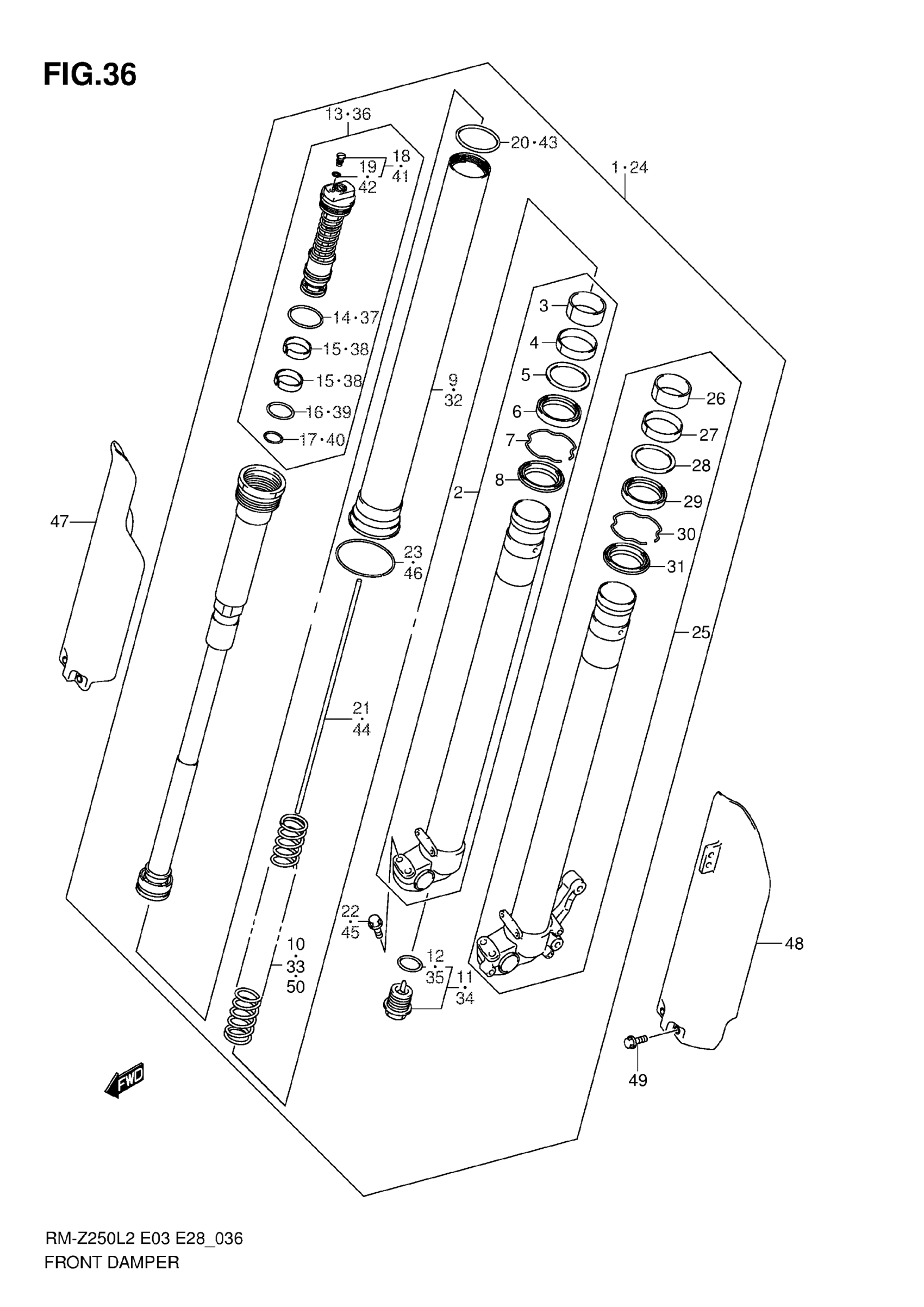

Suzuki RM-Z250L2 (2013) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-49H10

Unavailable

2

TUBE, INNER RH

51110-28H10

$459.98

3

BUSH, GUIDE

51121-28H10

$17.37

4

BUSH, GUIDE

51167-28H10

$28.18

5

SPACER, SEAL

51158-36F00

$9.37

6

SEAL, OIL

51153-37F80

$29.48

7

RING, OIL SEAL STOPPER

51156-27C40

$5.19

8

SEAL, DUST

51173-37F80

$26.58

9

TUBE, OUTER

51130-10H10

Unavailable

10

SPRING, FRONT (K=4.61)

51171-28H00

Unavailable

11

BOLT, CENTER

51170-37FC0

$182.88

12

O RING

51177-36E20

$4.10

13

BOLT, FORK

51351-49H10

Unavailable

14

O RING

51117-37F80

$6.93

15

BUSH, FORK BOLT SLIDE

51123-28H10

$18.02

16

O RING

51174-36E40

$4.25

17

O RING

51175-37F80

$5.83

18

..BOLT,PLUG

51357-36F20

$14.37

19

...O-RING

51358-28E30

$4.28

20

O RING

51118-37F80

$6.93

21

ROD, PUSH

51191-10H10

$23.10

22

BOLT

51328-37F80

$7.25

23

RING STOPPER

51211-37FC0

$10.18

24

DAMPER ASSY, FRONT FORK LH

51104-49H10

Unavailable

25

TUBE, INNER LH

51120-28H10

Unavailable

26

BUSH, GUIDE

51121-28H10

$17.37

27

BUSH, GUIDE

51167-28H10

$28.18

28

SPACER, SEAL

51158-36F00

$9.37

29

SEAL, OIL

51153-37F80

$29.48

30

RING, OIL SEAL STOPPER

51156-27C40

$5.19

31

SEAL, DUST

51173-37F80

$26.58

32

TUBE, OUTER

51130-10H10

Unavailable

33

SPRING, FRONT (K=4.61)

51171-28H00

Unavailable

34

BOLT, CENTER

51170-37FC0

$182.88

35

O RING

51177-36E20

$4.10

36

BOLT, FORK

51351-49H10

Unavailable

37

O RING

51117-37F80

$6.93

38

BUSH, FORK BOLT SLIDE

51123-28H10

$18.02

39

O RING

51174-36E40

$4.25

40

O RING

51175-37F80

$5.83

41

..BOLT,PLUG

51357-36F20

$14.37

42

...O-RING

51358-28E30

$4.28

43

O RING

51118-37F80

$6.93

44

ROD, PUSH

51191-10H10

$23.10

45

BOLT

51328-37F80

$7.25

46

RING STOPPER

51211-37FC0

$10.18

47

PROTECTOR, RH

51501-28H21

Unavailable

48

PROTECTOR, LH

51510-28H30

Unavailable

49

BOLT (6X10)

09111-06098

$2.92

50

SPRING, FRONT (SOFT K=0.45) | OPT

51171-28H10

$175.18

50

SPRING, FRONT (HARD K=0.49) | OPT

51171-28H20

Unavailable
