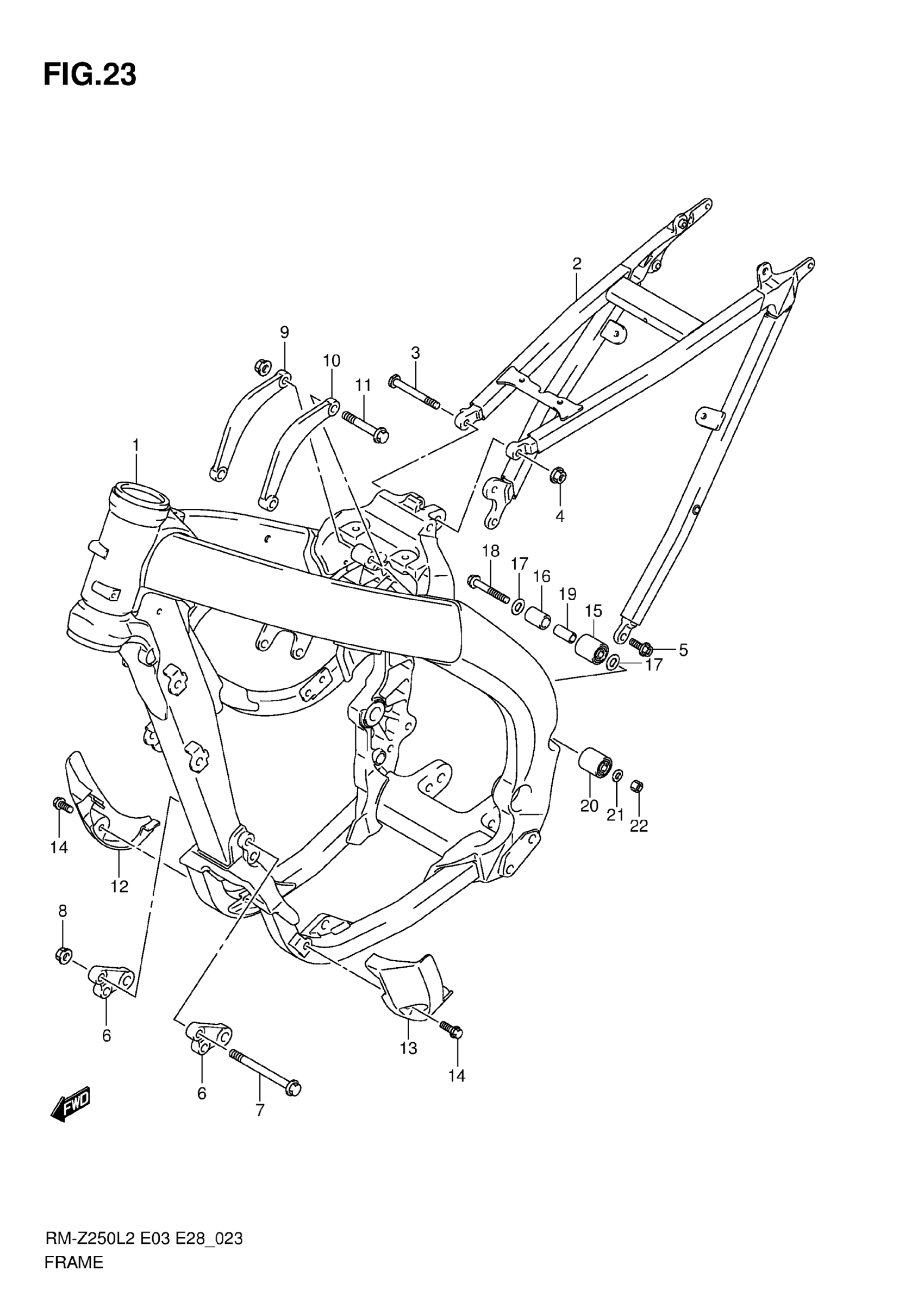

Suzuki RM-Z250L2 (2013) FRAME Diagram

#

Description
Price

1

FRAME

41100-49H10

Unavailable

2

RAIL, SEAT

41200-49H10

Unavailable

3

BOLT, UPPER

41311-28H20

$19.12

4

NUT

09159-08146

$7.22

5

BOLT (8X20)

09103-08426

$4.60

6

BRACKET, ENGINE MOUNT FRONT

41991-10H01

Unavailable

7

BOLT (8X95)

09103-08433

$3.93

8

NUT

09159-08146

$7.22

9

BRACKET, ENG MOUNT UPPER RH

41994-49H00

Unavailable

10

BRACKET, ENG MOUNT UPPER LH

41995-49H00

Unavailable

11

.BOLT (8X55)

09103-08339

$3.49

12

PROTECTOR, FRONT RH

42520-10H02

$30.53

13

PROTECTOR, FRONT LH

42530-49H00

$27.23

14

BOLT (6X16)

09116-06200

$3.16

15

ROLLER, CHAIN UPPER

43911-28H00

$10.32

16

COLLAR, CHAIN RPLLER

43912-28H00

Unavailable

17

WASHER (8.5X23X1.5)

09160-08081

$2.56

18

BOLT (8X45)

09103-08207

$2.51

19

SPACER (8.6X12.2X25.5)

09180-08214

$5.18

20

ROLLER, CHAIN LOWER

43910-35G00

$65.18

21

SHIM (8X12X1)

09181-08111

$1.93

22

NUT

08319-2108A

$2.12
