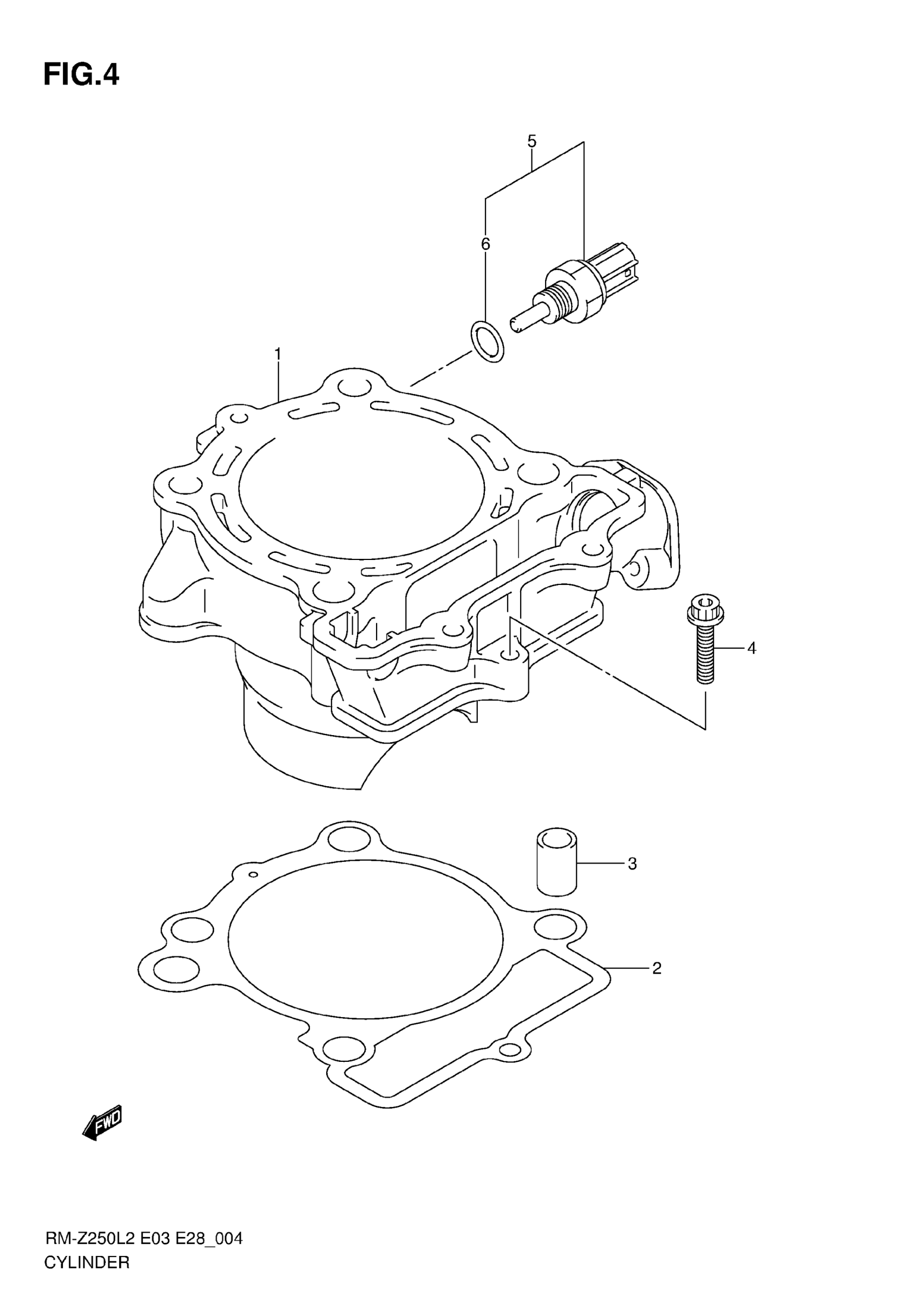

Suzuki RM-Z250L2 (2013) CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 11211-49H10-0F0.

11211-49H12-0F0

$549.22

2

.GASKET,CYLINDER

11241-49H10

$12.65

3

PIN

04211-13189

$2.25

4

BOLT

07120-0625A

$2.57

5

SENSOR, WATER TEMP

13650-14G00

$51.19

6

.O RING

13655-14G00

$10.48
