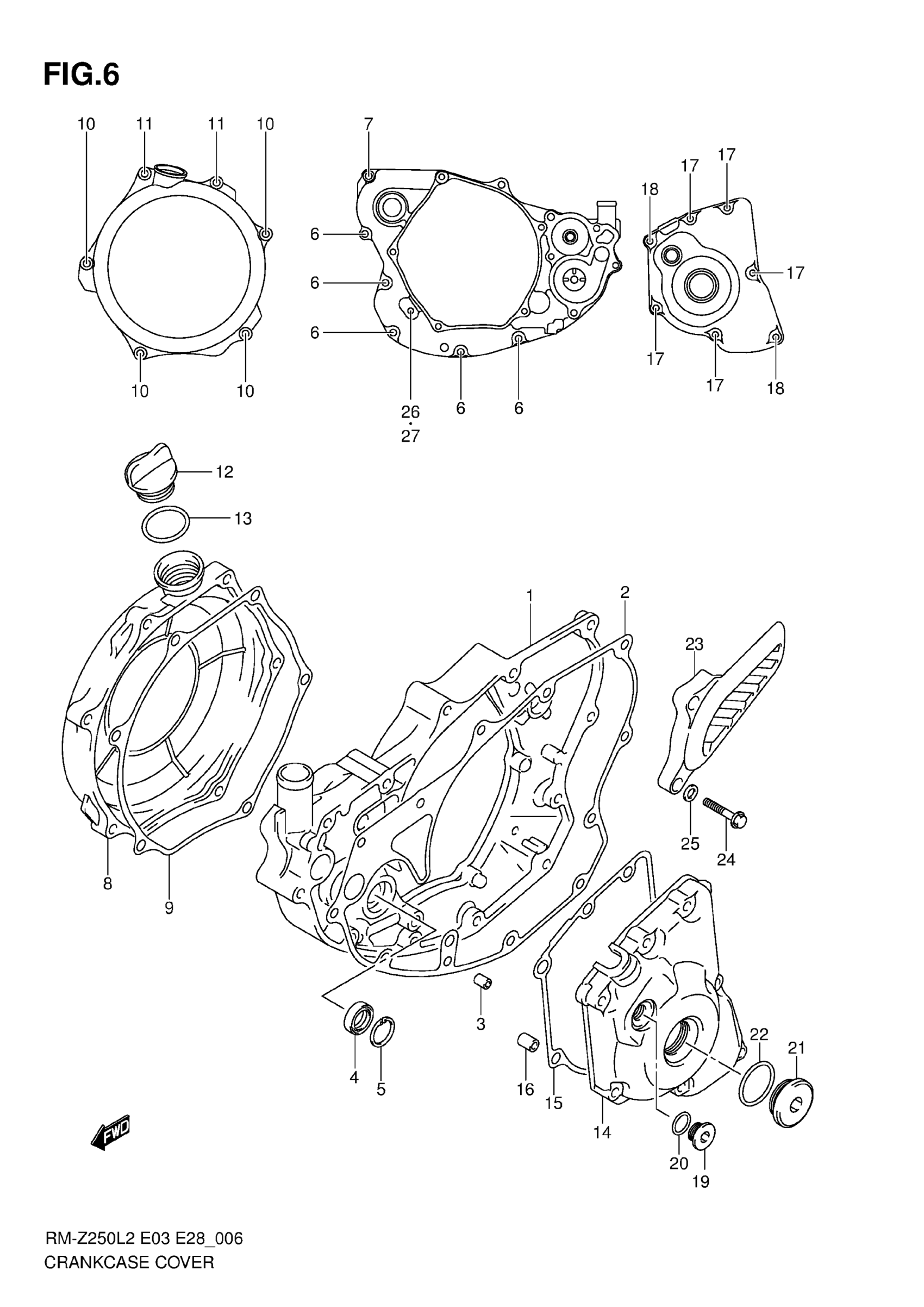

Suzuki RM-Z250L2 (2013) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-10H20.

11340-10H30

$386.92

2

GASKET, CLUTCH COVER

11482-10H00

$18.80

3

PIN

04211-09109

$1.70

4

SEAL,OIL (12X22X6)

09282-12012

$19.53

5

CIRCLIP

08331-41249

$2.31

6

BOLT

01547-0625A

$2.09

7

BOLT

01547-0630A

$2.38

8

COVER, CLUTCH OUTER

11371-10H10

$259.30

9

GASKET, CLUTCH COVER OUTER

11484-10H00

$13.42

10

BOLT

01547-0625A

$2.09

11

BOLT

01547-0660A

$2.80

12

PLUG

09259-20008-XC0

$6.97

13

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

14

COVER, MAGNETO

11351-49H00

$307.05

15

GASKET, MAGNETO COVER

11483-49H00

$12.00

16

PIN

04211-09109

$1.70

17

BOLT

01547-0630A

$2.38

18

BOLT

01547-0635A

$2.38

19

PLUG

09248-12007

$5.49

20

O RING (D:1.9,ID:9.8)

09280-10016

$3.13

21

PLUG

09259-26011

$10.26

22

O RING (D:3.1,ID:22.7)

09280-22008

$2.10

23

COVER, ENGINE SPROCKET

11360-35G00

$31.68

24

BOLT

01547-0630A

$2.38

25

WASHER

08322-0106B

$2.31

26

.BOLT

07120-0610A

$2.58

27

GASKET (5.8X13X1.2)

09168-06023

$2.09
