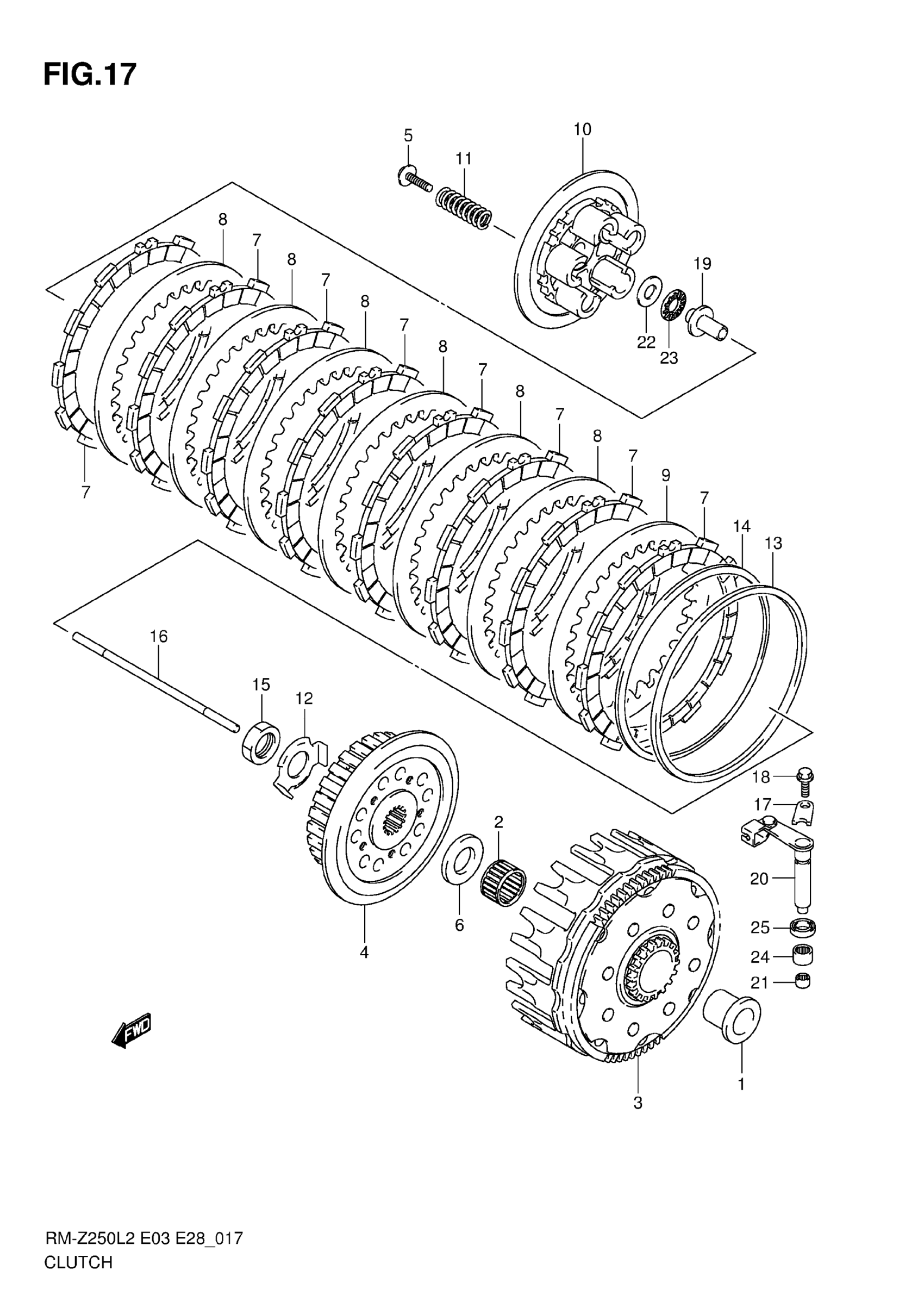

Suzuki RM-Z250L2 (2013) CLUTCH Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVEN GEAR

21251-10H00

$50.30

2

BEARING (27X32X21.8)

09263-27004

$33.15

3

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-49H00.

21200-49H10

$268.97

4

HUB, CLUTCH SLEEVE

21411-10H10

$91.69

5

BOLT, CLUTCH SPRING

21412-45G00

$3.25

6

WASHER (22X45X3)

09160-22083

$14.25

7

PLATE, CLUTCH DRIVE NO.1

21441-40F10

$19.15

8

PLATE, CLUTCH DRIVEN

21451-10H00

$9.89

9

PLATE, CLUTCH DRIVEN

21452-10H00

$15.73

10

DISC, CLUTCH PRESSURE

21462-10H00

$53.30

11

SPRING, CLUTCH

21413-49H00

$6.85

12

WASHER, CLUTCH SLEEVE

21416-10H00

$4.72

13

SEAT, WAVE WASHER

21471-40F00

$14.34

14

WASHER, CLUTH PLATE

21472-10H00

$21.50

15

NUT

09140-18020

$11.37

16

ROD, CLUTCH PUSH

23110-37F00

$18.15

17

RETAINER, CL RELEASE

23117-10H00

$5.10

18

BOLT (6X12)

09103-06233

$2.11

19

PIECE, CLUTCH PUSH

23121-49H10

$33.00

20

CAMSHAFT, CLUTCH RELEASE

23200-49H00

$102.17

21

BEARING, CL RELEASE THRUST

23129-35G00

$10.55

22

WASHER (12X26X0.8)

09181-12016

$2.93

23

BEARING (12X26X2)

09263-12019

$12.48

24

BEARING (10X14X10)

09263-10014

$13.52

25

OIL SEAL (10X17X5)

09285-10004

$3.37
