Description

Price

1

CLEANER ASSY, AIR

13700-49H10

Unavailable

2

FILTER ASSY

13780-10H00

$95.28

3

BASE, FILTER

13790-37F20

$22.22

4

HOLDER, FILTER

13791-35G00

$15.16

5

.BOLT,WING

13831-37F20

$8.07

6

WASHER

13792-13A01

$4.34

7

TUBE, OUTLET

13881-49H00

$106.45

8

CLAMP

13826-28H00

$7.73

9

NUT

08310-00057

$1.84

10

.MUD GUARD

13738-36E10

$26.25

11

.SCREW

13831-35F00

$2.38

12

PLATE

13795-37F20

$17.70

13

GASKET

13796-37F20

$13.73

14

.NUT

09148-06017

$3.20

15

BOLT, AIR CLEANER

01547-0612A

$2.03

16

.SPACER (6.2X10X2.2)

09180-06129

$2.12

17

SENSOR, AIR TEMP

13650-14G10

$52.06

18

O RING

13655-14G10

$9.90

19

BRACKET, AIR TEMP SENSOR

13652-28H00

$12.40

20

SCREW

02112-0516B

$1.93

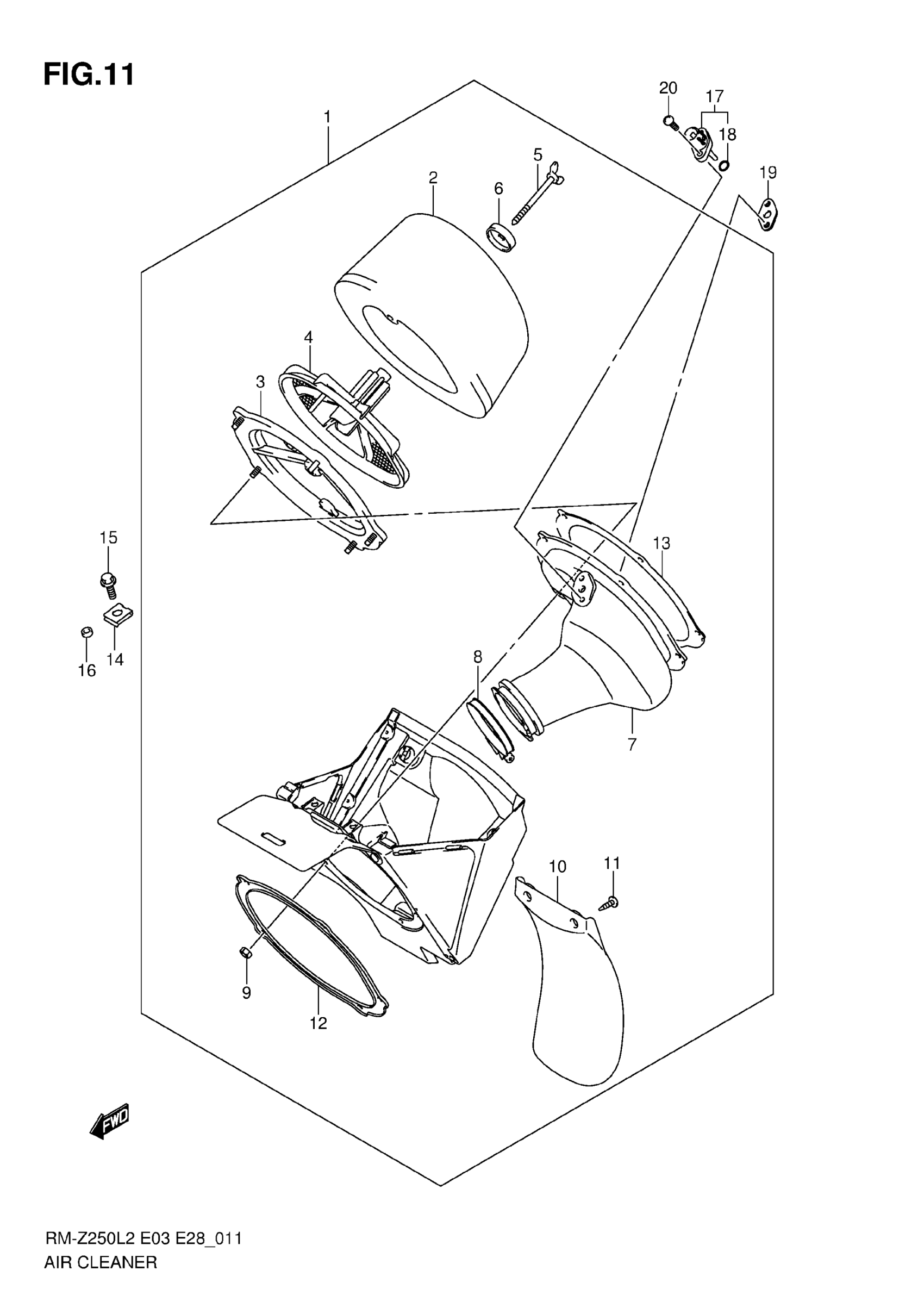

Suzuki RM-Z250L2 (2013) AIR CLEANER Diagram
