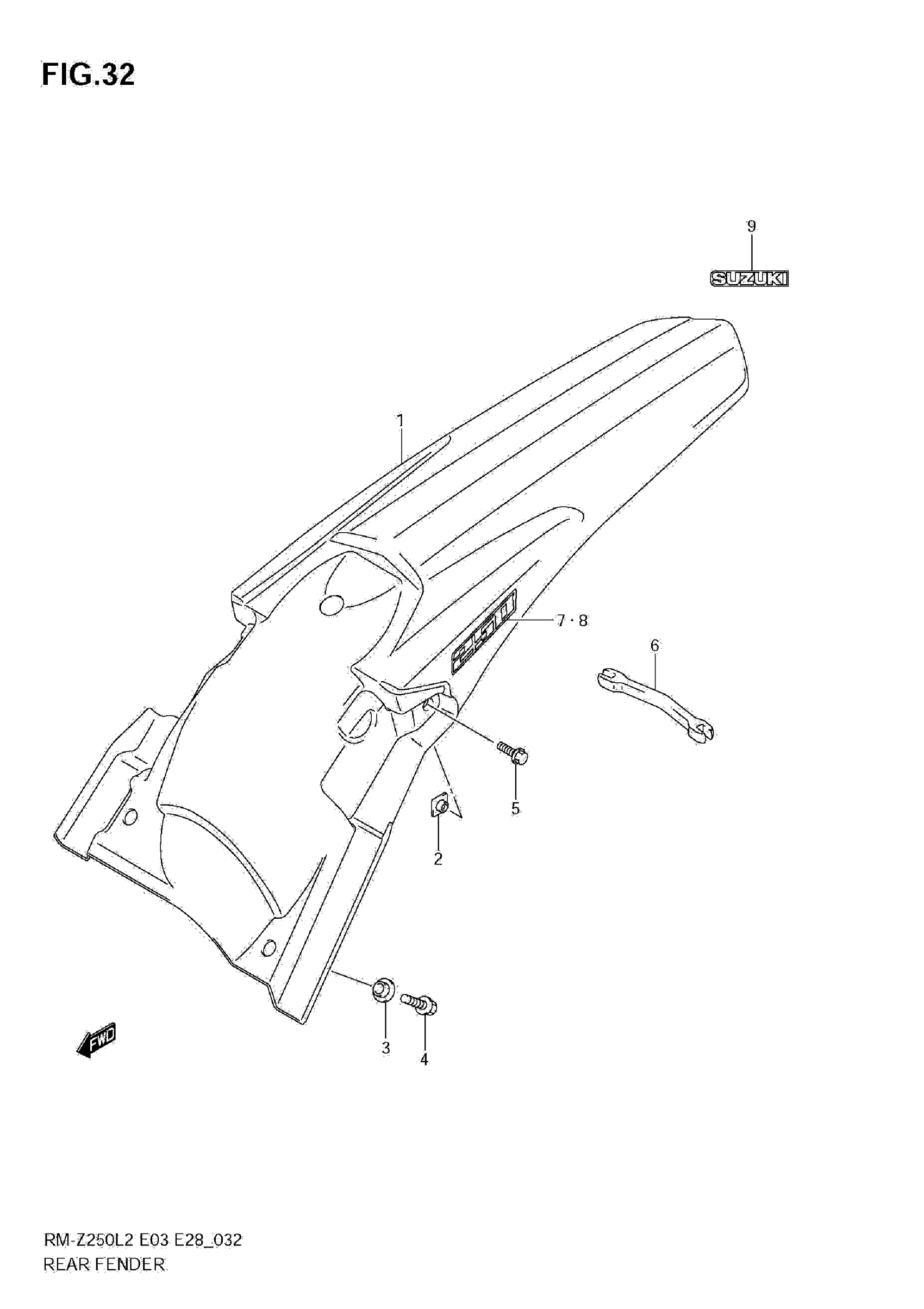

Suzuki RM-Z250L2 (2012) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-49H01-YU1

$72.33

2

NUT, REAR FENDER REAR

63131-02J00

$14.88

3

WASHER, REAR FENDER FRONT

63191-28H00

$9.68

4

BOLT

01547-0620A

$2.01

5

BOLT (6X16)

01547-0616A

$2.01

6

SPANNER (6.4X6.8)

09813-00134

$20.67

7

TAPE, RH

68175-49H00-GY8

$19.60

8

TAPE, LH

68176-49H00-GY8

$19.60

9

EMBLEM,SUZUKI This part replaces 68131-21H00-019.

68131-21H01-019

$10.70
