2012 Suzuki RM-Z250L2 Front Fender Diagram

← All diagrams

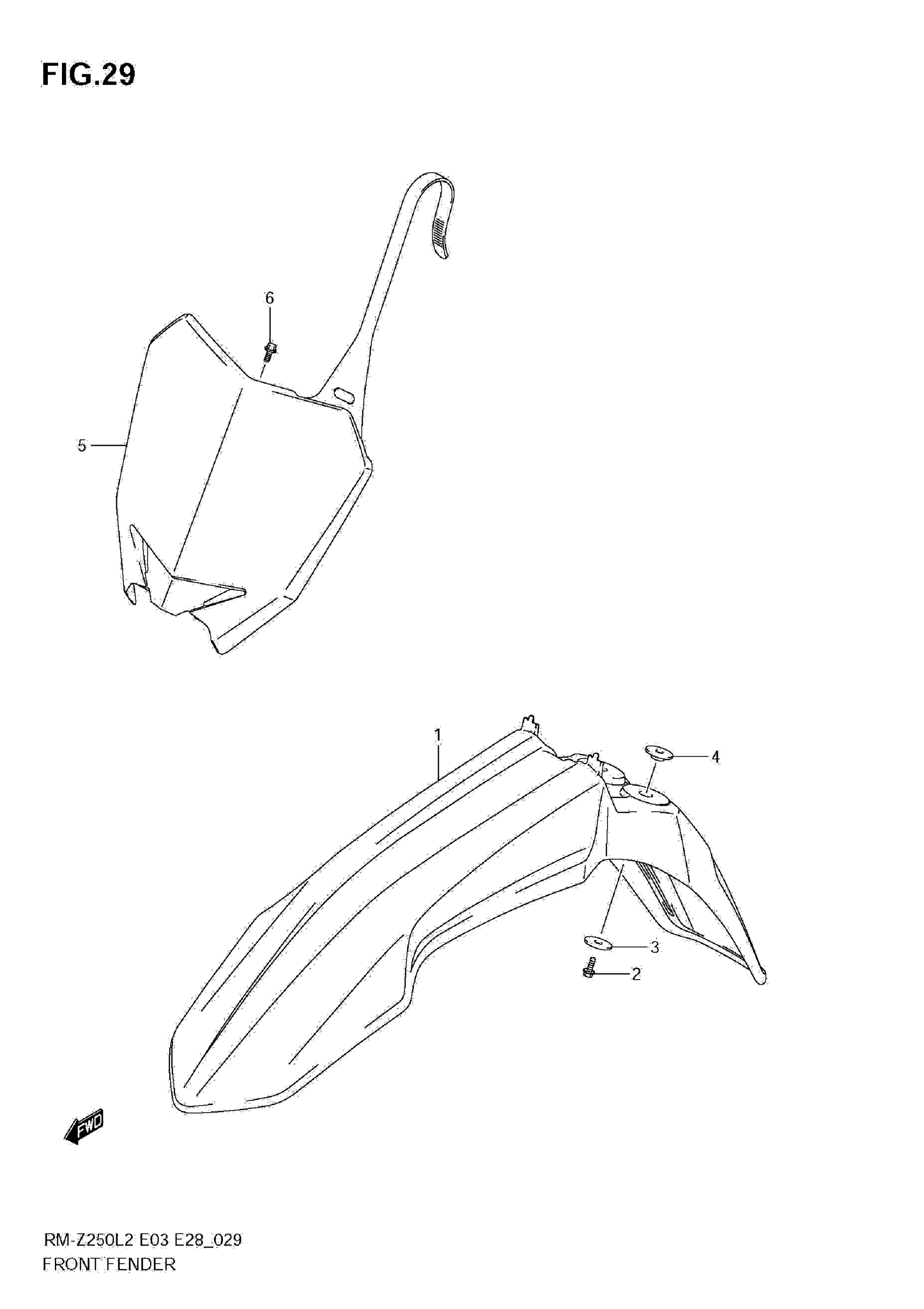

Find the part on the Front Fender diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM-Z250L2 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-28H00-YU1

1
Out of stock

2

BOLT

01547-0616A

4
Out of stock

3

WASHER, LOWER

44135-35G00

4
Out of stock

4

WASHER

09169-06078

4
Out of stock

5

PLATE,NUMBER FR This part replaces 94911-28H01-019.

94911-28H02-019

1
Out of stock

6

BOLT (6X12)

09116-06197

1
Out of stock
