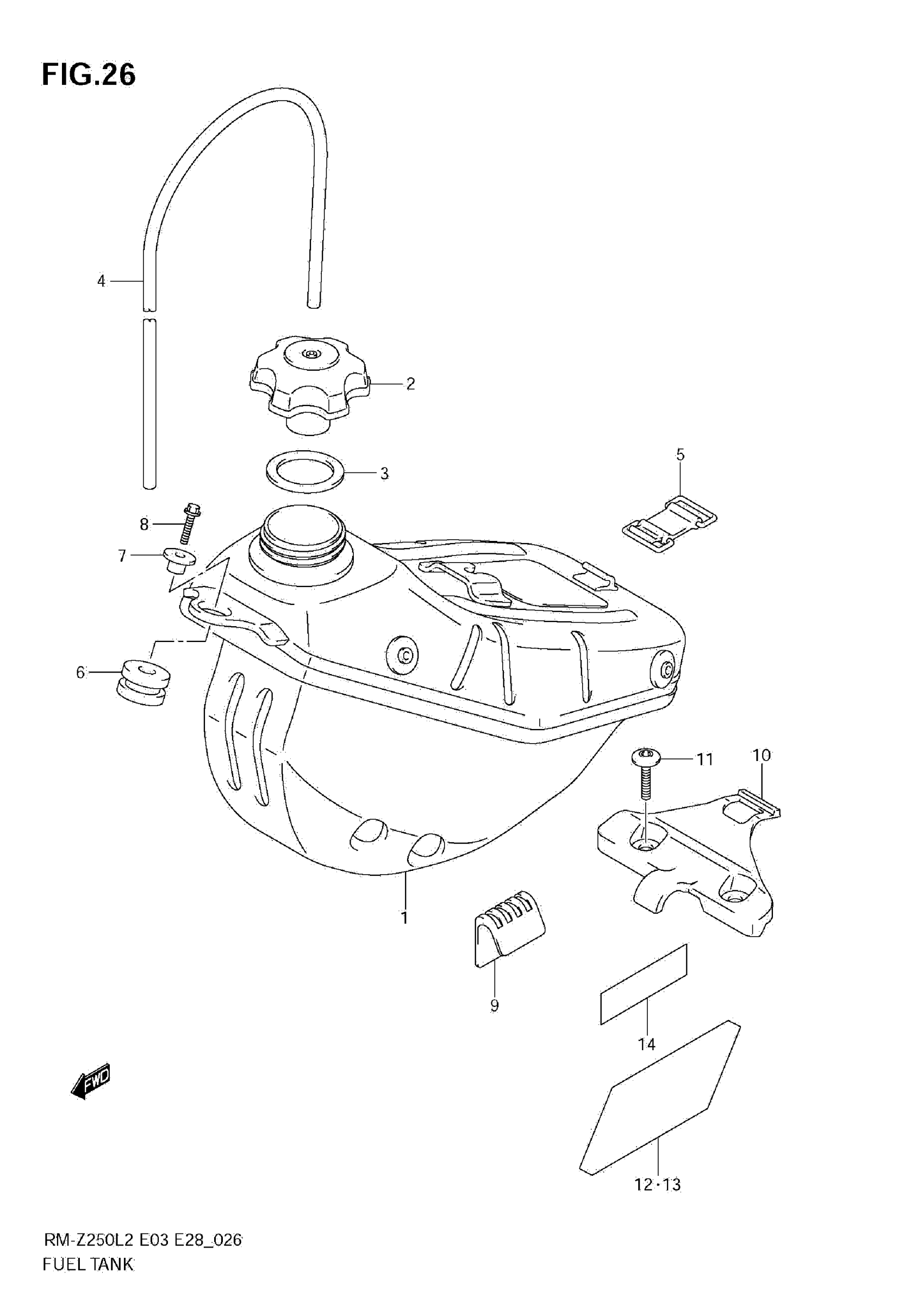

Find the part on the Fuel Tank diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM-Z250L2 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44110-49H10

1
Out of stock

2

CAP, FUEL TANK

44210-37F00

1
Out of stock

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

4

HOSE,5X10X600 | L:600->350 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

BAND, FUEL TANK

44560-49H00

1
Out of stock

6

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

1
Out of stock

7

SPACER

44134-35G02

1
Out of stock

8

BOLT (6X30)

09103-06213

1

$2.63

In stock

9

CUSHION,FUEL TA This part replaces 44543-49H00.

44543-49H01

2
Out of stock

10

CUSHION, REAR

44542-49H00

1
Out of stock

11

SCREW (6X26.5)

09139-06185

2
Out of stock

12

PROTECTOR, RH

17795-28H00

1
Out of stock

13

PROTECTOR, LH

17796-28H00

1
Out of stock

14

PROTECTOR, COVER NO.1

17797-28H00

2
Out of stock
