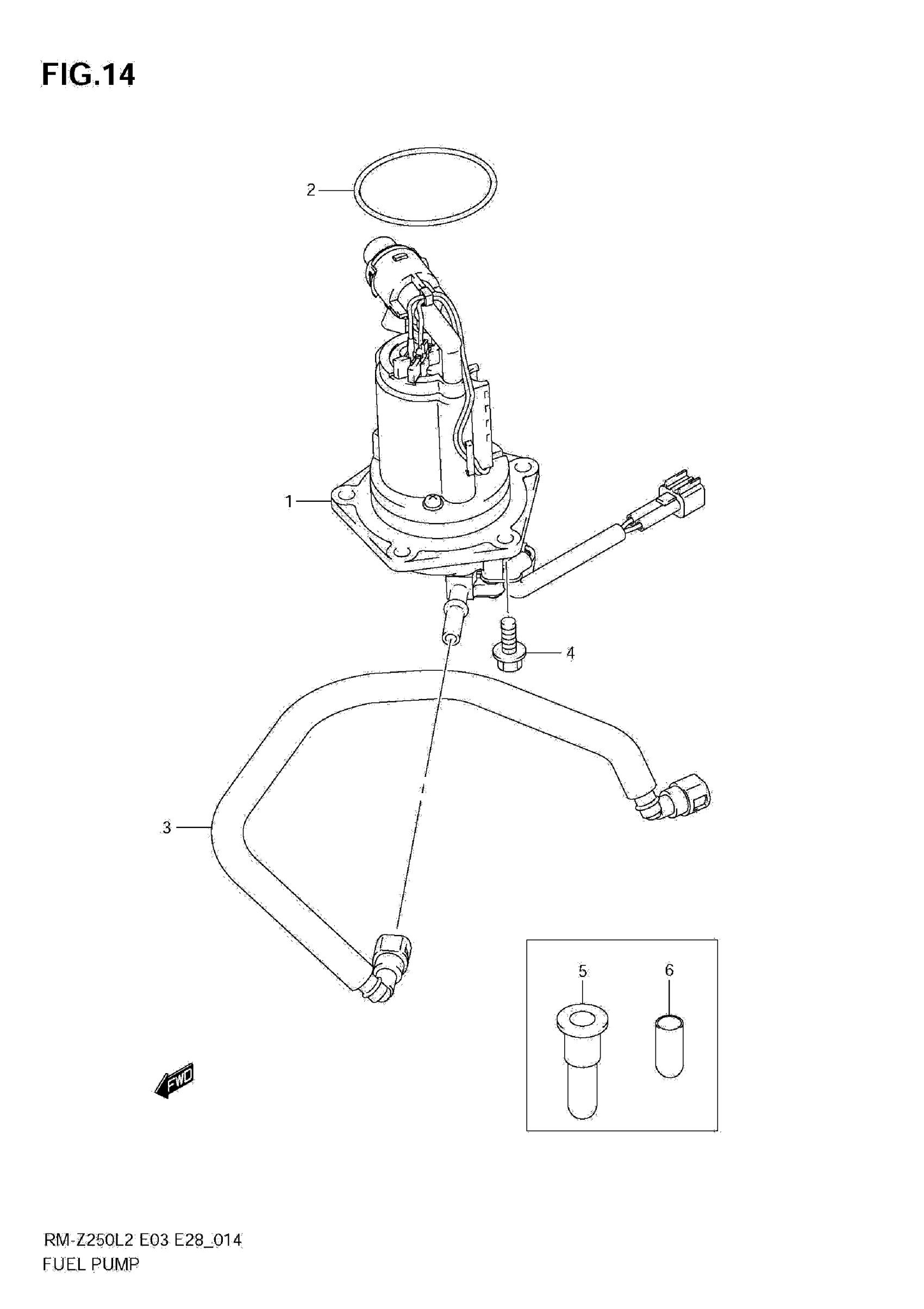

Suzuki RM-Z250L2 (2012) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY, FUEL This part replaces 15100-28H10.

15100-28H11

$381.45

2

O-RING

15111-28H00

$31.10

3

HOSE, FUEL

15810-49H10

$88.00

4

BOLT

01547-06207

$2.01

5

CAP, FUEL HOSE

15819-28H00

$5.73

6

CAP, FUEL PUMP

15114-28H00

$5.83
