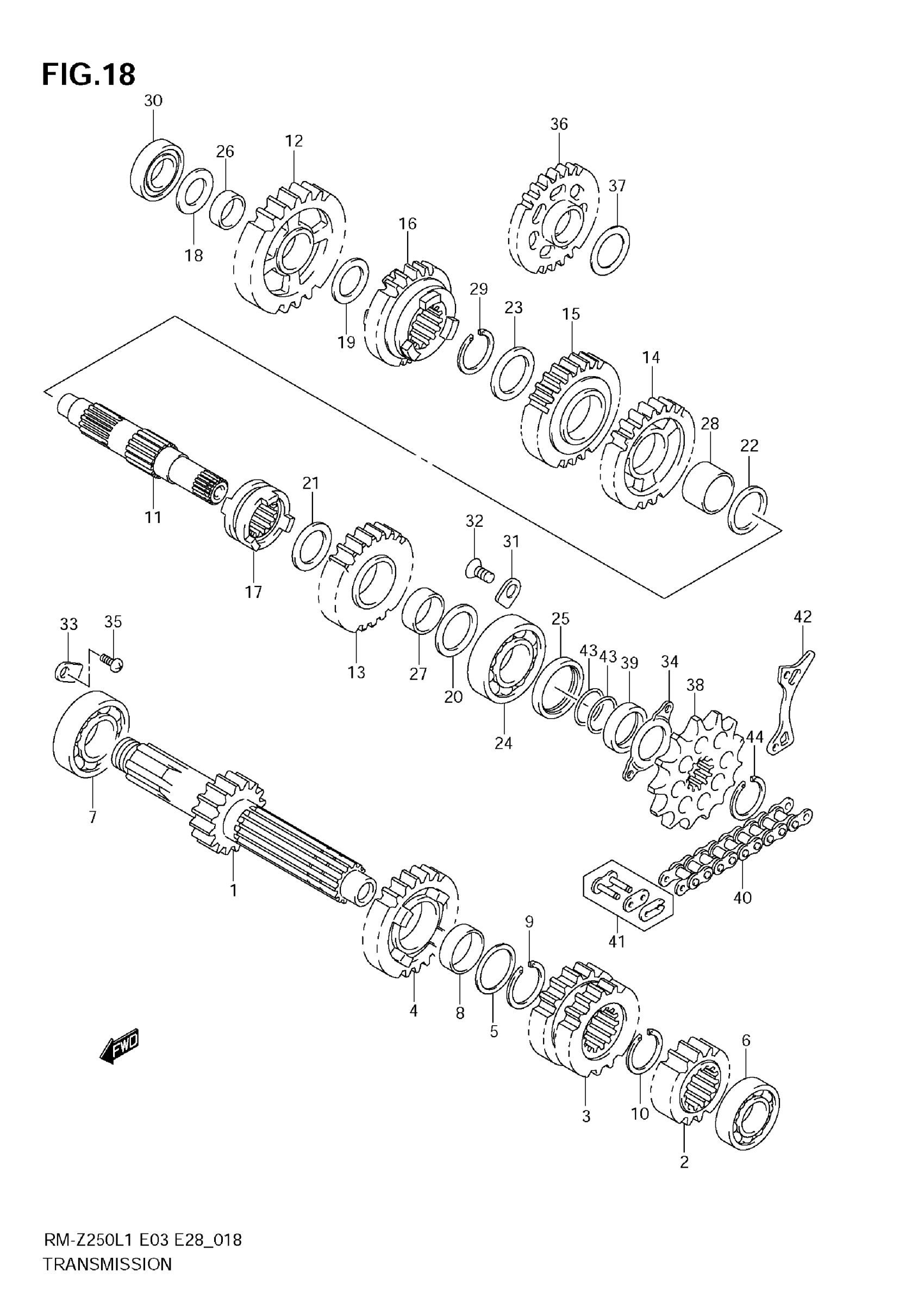

Suzuki RM-Z250L1 (2011) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER, NT:13

24120-10H01

Unavailable

2

GEAR, 2ND DRIVE, NT:17

24221-10H01

$99.86

3

GEAR, 3RD & 4TH DRIVE | NT:17/21

24231-10H10

$146.38

4

GEAR, 5TH DRIVE, NT:22

24251-10H00

$123.73

5

WASHER (24X29X1.0)

09181-24009

$4.25

6

BEARING (17X40X9.5) | LH

09262-17040

$21.21

7

BEARING (22X50X14) | RH

09262-22018

$25.60

8

BUSH (24X27X9.0)

09300-24004

Unavailable

9

CIRCLIP

09380-24007

$4.17

10

CIRCLIP

09380-24007

$4.17

11

SHAFT, DRIVE

24131-10H01

Unavailable

12

GEAR, 1ST DRIVEN, NT:28

24311-10H01

$132.73

13

GEAR, 2ND DRIVEN, NT:30

24321-10H01

$132.73

14

GEAR, 3RD DRIVEN, NT:25

24331-10H00

$132.73

15

GEAR, 4TH DRIVEN, NT:26

24341-10H00

$132.73

16

GEAR, 5TH DRIVEN, NT:24

24351-10H00

$137.57

17

DOG, SLIDING

24412-10H01

$94.35

18

WASHER (17X28X1.0) | RH

09181-17195

$3.07

19

WASHER (20X28X1.0) | LH

09181-20167

$2.62

20

WASHER, 2ND DRIVEN GEAR LH

24322-49H00

$6.47

21

WASHER (22X30X1.0) | RH

09181-22167

$2.96

22

WASHER (24X30X1.0)

09181-24008

$4.10

23

WASHER (24X30X1.0)

09181-24008

$4.10

24

BEARING (20X52X15) | LH

09262-20147

$84.28

25

OIL SEAL (28X38X7.5)

09289-28012

$9.68

26

BUSH (20X24X10)

09300-20037

$17.90

27

BUSH (22X25X12)

09300-22020

$22.15

28

BUSH (24X27X18)

09300-24003

$26.88

29

CIRCLIP

09380-24007

$4.17

30

BEARING (17X40X12) | RH

09262-17023

$16.75

31

RETAINER

24741-20A00

$2.81

32

SCREW (6X12)

09126-06011

$2.03

33

RETAINER, CNTR SHAFT

24741-21A00

$2.81

34

RETAINER, DRIVE SHAFT OIL SEAL

24751-49H00

$15.32

35

SCREW (6X12)

09125-06110

$2.12

36

GEAR, KICK STARTER IDLE

26260-49H00

$112.90

37

WASHER, KICK IDLE

26264-28H00

$7.08

38

SPROCKET, ENGINE, NT:13

27511-14121

$34.22

39

SPACER, ENGINE SPROCKET

27531-43D00

$25.29

40

CHAIN ASSY,DRIVE | DID520DMA2-SDH This part replaces 27600-43D02-114.

27600-46K00-114

$140.88

41

.JOINT SET,CHAIN | OPT This part replaces 27620-43D02.

27620-46K00

$9.57

42

PLATE, FRONT CHAIN GUIDE

27641-10H01

$11.62

43

O RING (D:1.9,ID:19.8)

09280-20006

$1.78

44

CIRCLIP

09380-20007

$2.43
