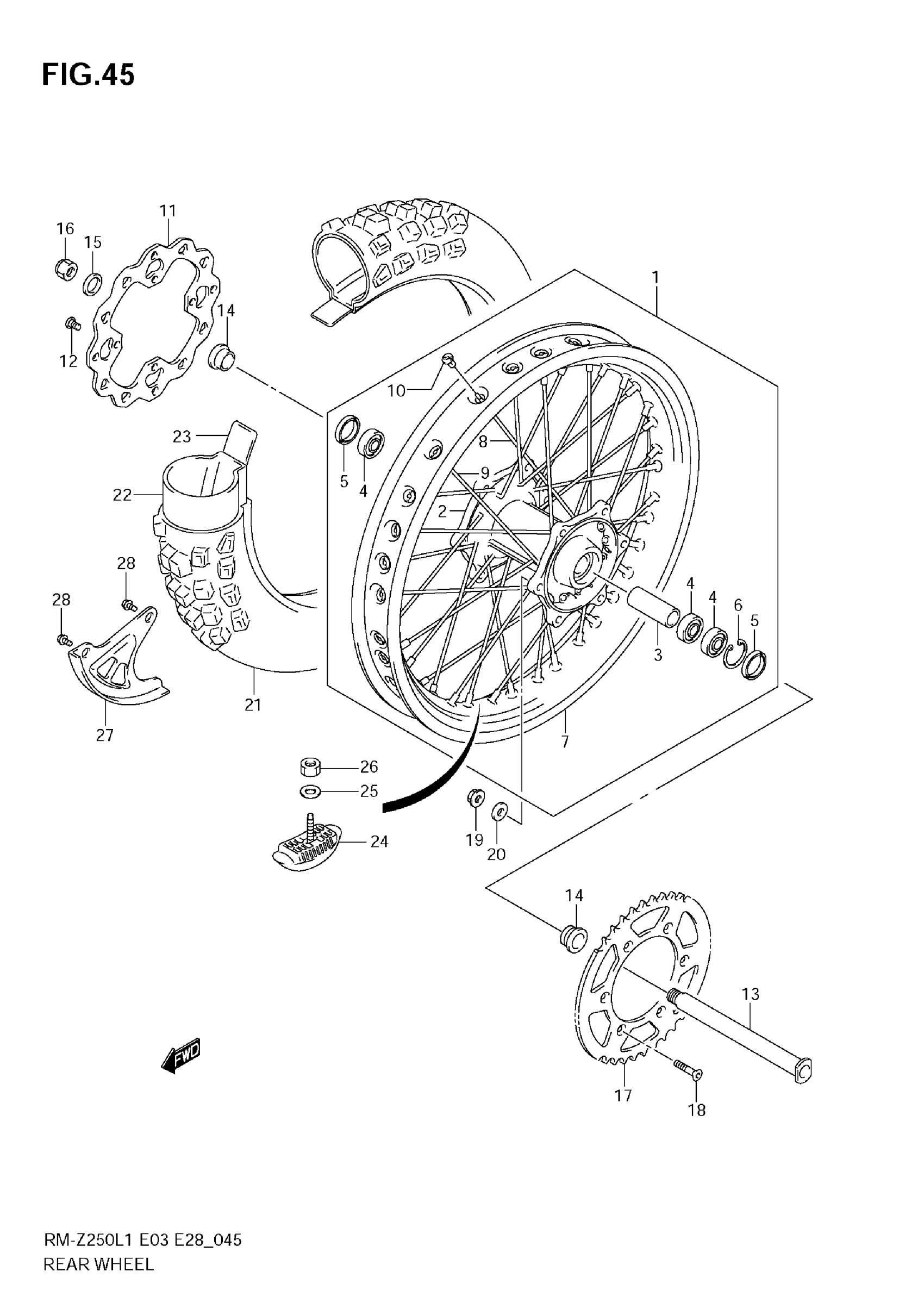

Find the part on the Rear Wheel diagram for your 2011 Suzuki RM-Z250L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki RM-Z250L1 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL ASSY,REAR This part replaces 64100-10H00.

64100-10H01

1
Out of stock

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

1
Out of stock

3

.SPACER,RR HUB BEARING

64731-35G01

1
Out of stock

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

3
Out of stock

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

2
Out of stock

6

CIRCLIP This part replaces 08331-4142A.

08331-41429

1
Out of stock

7

RIM, REAR WHEEL (1.85X19)

65311-10H00

1
Out of stock

8

.SPOKE,RR WHEEL INNER

65321-35G10

18
Out of stock

9

.SPOKE,RR WHEEL OUTER

65322-35G10

18
Out of stock

10

.NIPPLE,RR WHEEL

65325-35G10

36
Out of stock

11

DISC,RR BRAKE

69211-28H10

1
Out of stock

12

SCREW (8X15)

09139-08022

4
Out of stock

13

AXLE,RR

64711-35G10

1
Out of stock

14

SPACER

64751-35G01

2
Out of stock

15

WASHER (22X35X2)

09160-22081

1
Out of stock

16

NUT

09159-22007

1
Out of stock

17

SPROCKET,RR (NT:49)

64511-28E00

1
Out of stock

18

SCREW (8X30.5)

09120-08017

6
Out of stock

19

NUT

09159-08133

6
Out of stock

20

WASHER (8.5X16X1.2)

09160-08082

6
Out of stock

21

TIRE, REAR (110/90-19 57M) (DUNLOP)

65110-36F00

1
Out of stock

22

TUBE This part replaces 55200-44610.

55200-44611

1
Out of stock

23

PROTECTOR, INNER TUBE

65261-01B30

1
Out of stock

24

STOPPER, BEAD

65270-43D00

1
Out of stock

25

WASHER

08322-0108A

1
Out of stock

26

NUT

08310-0008A

1
Out of stock

27

COVER, REAR DISC

69231-37F12

1
Out of stock

28

BOLT (6X12)

09116-06197

2
Out of stock
