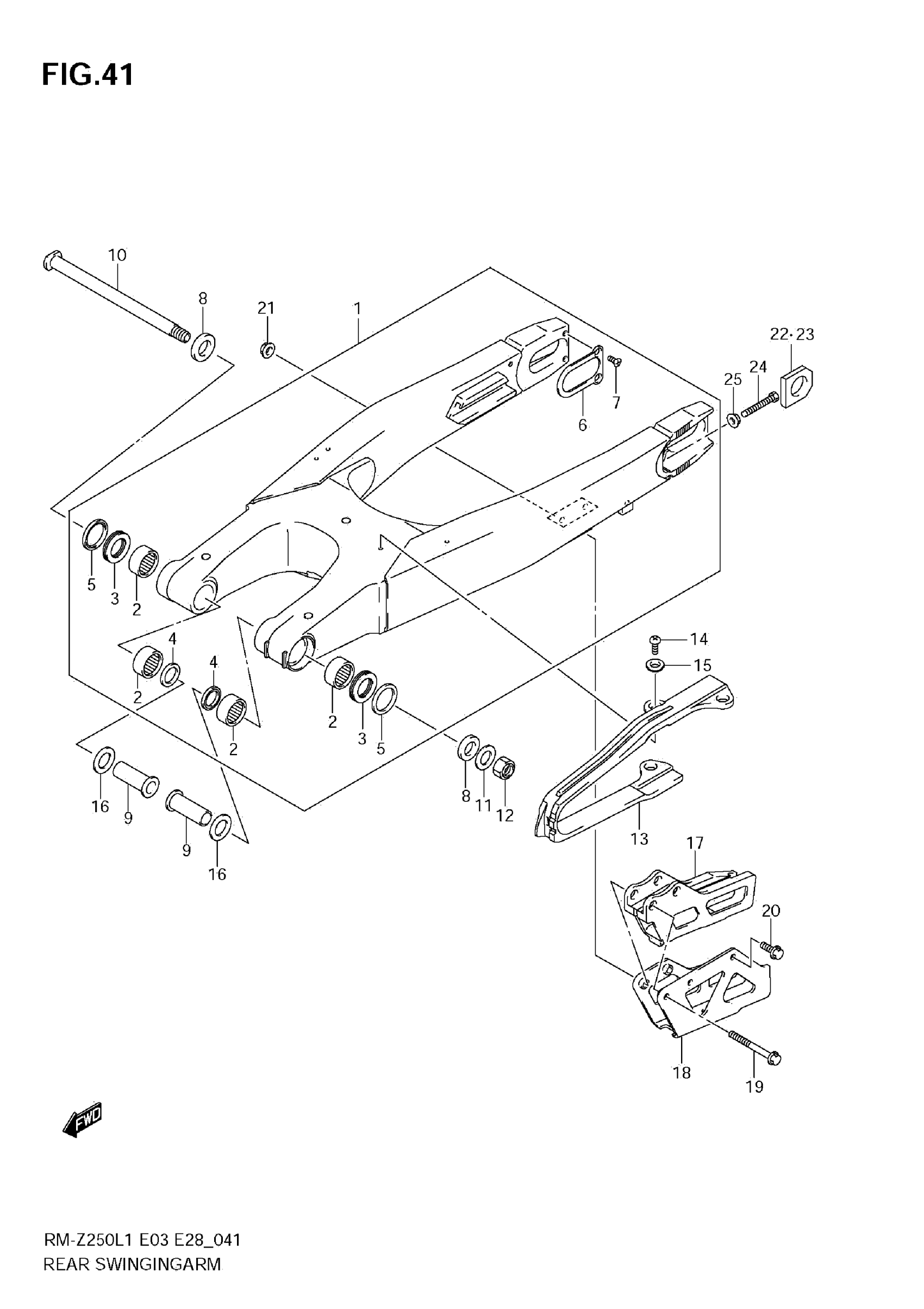

Suzuki RM-Z250L1 (2011) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGARM ASSY, REAR

61000-49H00

Unavailable

2

BEARING (22X29X30)

09263-22070

$29.17

3

BEARING (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL (29.2X37X4)

61262-36E00

$6.93

6

PLATE, SWINGARM, REAR

61128-35G00

Unavailable

7

SCREW

02122-0410B

$2.45

8

SPACER, PIVOT OUTER

61251-36E01

$13.16

9

SPACER, PIVOT INNER

61252-37F01

$44.15

10

SHAFT, PIVOT

61211-35G00

$84.50

11

WASHER

08322-0116B

$2.70

12

NUT

09159-16007

$12.61

13

BUFFER, CHAIN TOUCH DEFENSE

61273-35G10

$53.47

14

SCREW

02112-0508B

$1.86

15

WASHER

09169-05022

$3.55

16

WASHER

08211-22365

$5.97

17

GUIDE, CHAIN

61341-35G10

$57.60

18

PLATE, GUIDE OUTER

61342-37F00

$66.30

19

BOLT (6X45)

09103-06242

$2.76

20

BOLT (6X12)

09103-06233

$2.11

21

NUT

08316-1006B

$2.50

22

WASHER,CHAIN ADJUSTER RH

61445-28H11

$48.67

23

WASHER,CHAIN ADJUSTER LH

61446-35G01

$36.60

24

BOLT (8X50)

09100-08287

$3.10

25

NUT

09159-08034

$1.62
