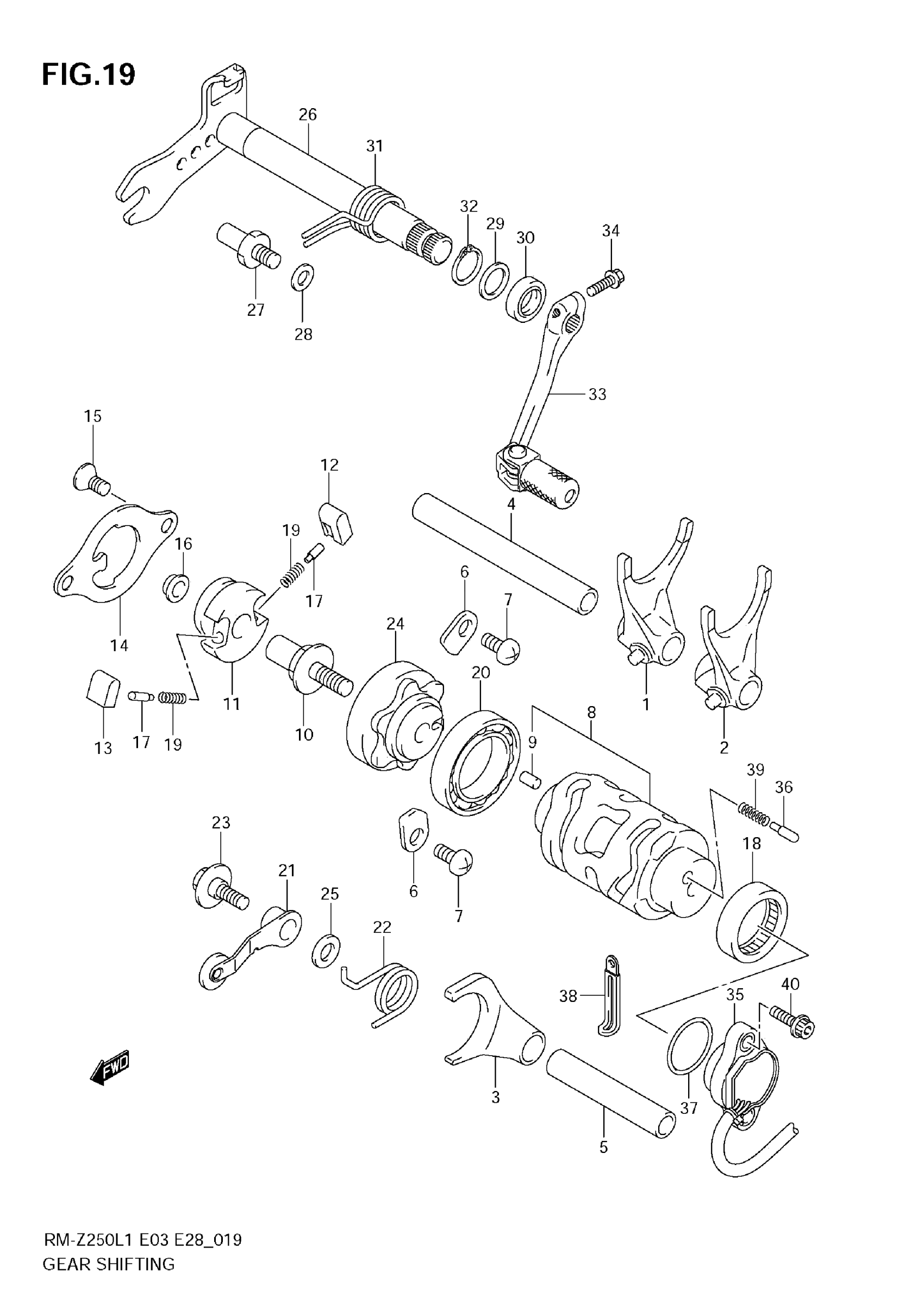

Find the part on the Gear Shifting diagram for your 2011 Suzuki RM-Z250L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki RM-Z250L1 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-10H10

1
Out of stock

2

FORK, GEAR SHIFT NO.2

25221-10H10

1
Out of stock

3

FORK, GEAR SHIFT NO.3

25231-10H10

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.1

25411-37F20

1
Out of stock

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

1
Out of stock

6

RETAINER, SHIFT CAM BEARING

24741-21A00

2
Out of stock

7

SCREW (6X12)

09125-06110

2
Out of stock

8

CAM, GEAR SHIFT

25310-49H00

1
Out of stock

9

PIN (4X13.8)

04221-04089

1
Out of stock

10

PIN, GEAR SHIFT CAM DRIVEN

25313-37F00

1
Out of stock

11

SHIFTER, GEAR SHIFT

25322-28H00

1
Out of stock

12

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

13

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

14

LIFTER, GEAR SHIFT PAWL

25331-49H00

1
Out of stock

15

SCREW (6X12)

09126-06011

2
Out of stock

16

ROLLER

09180-07014

11
Out of stock

17

PIN

09209-05023

2
Out of stock

18

BEARING (25X32X12) | LH

09263-25018

1
Out of stock

19

SPRING

09440-04003

2
Out of stock

20

BEARING | RH

08140-69050

1
Out of stock

21

STOPPER, GEAR SHIFT CAM

25350-10H00

1
Out of stock

22

SPRING, GEAR SHIFT CAM

25355-49H00

1
Out of stock

23

BOLT, STOPPER

25357-29F10

1
Out of stock

24

PLATE, GEAR SHIFT CAM STOPPER

25381-10H00

1
Out of stock

25

WASHER

08211-06121

1
Out of stock

26

SHAFT,GEAR SHIF This part replaces 25510-49H00.

25510-49H01

1
Out of stock

27

STOPPER, GEAR SHIFT ARM

25671-10H00

1
Out of stock

28

WASHER (8.8X14X1)

09181-08139

1
Out of stock

29

WASHER (14X22X6)

09181-14139

1
Out of stock

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

31

SPRING

09444-20011

1
Out of stock

32

CIRCLIP

08331-3114A

1
Out of stock

33

LEVER ASSY, GEAR SHIFT This part replaces 25600-10H20.

25600-10H21

1
Out of stock

34

BOLT

01547-06207

1
Out of stock

35

BASE ASSY,GEAR SHIFT TERM

37730-49H00

1
Out of stock

36

CONTACT

09209-05011

2
Out of stock

37

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

38

CLAMP (L:45)

09404-06429

1
Out of stock

39

SPRING

09440-04010

2
Out of stock

40

BOLT

07120-0516A

2
Out of stock
