2011 Suzuki RM-Z250L1 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2011 Suzuki RM-Z250L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

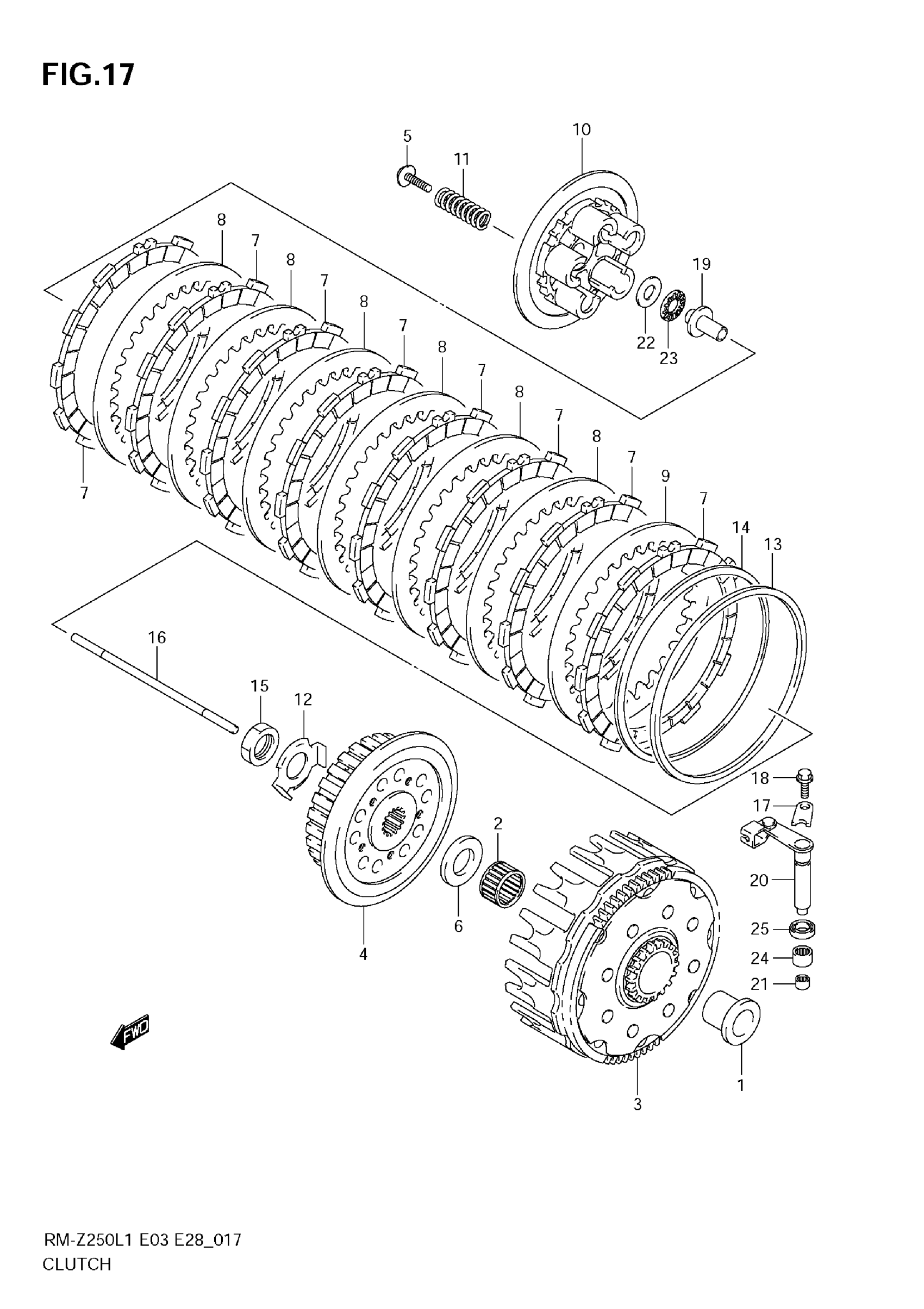

2011 Suzuki RM-Z250L1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER, PRI DRIVEN GEAR

21251-10H00

1
Out of stock

2

BEARING (27X32X21.8)

09263-27004

1
Out of stock

3

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-49H00.

21200-49H10

1
Out of stock

4

HUB, CLUTCH SLEEVE

21411-10H10

1
Out of stock

5

BOLT, CLUTCH SPRING

21412-45G00

5
Out of stock

6

WASHER (22X45X3.0)

09160-22083

1
Out of stock

7

PLATE, CLUTCH DRIVE NO.1

21441-40F10

8
Out of stock

8

PLATE, CLUTCH DRIVEN

21451-10H00

6
Out of stock

9

PLATE, CLUTCH DRIVEN

21452-10H00

1
Out of stock

10

DISC, CLUTCH PRESSURE

21462-10H00

1
Out of stock

11

SPRING, CLUTCH

21413-49H00

5
Out of stock

12

WASHER, CLUTCH SLEEVE

21416-10H00

1
Out of stock

13

SEAT, WAVE WASHER

21471-40F00

1
Out of stock

14

WASHER, CLUTH PLATE

21472-10H00

1
Out of stock

15

NUT

09140-18020

1
Out of stock

16

ROD, CLUTCH PUSH

23110-37F00

1
Out of stock

17

RETAINER, CL RELEASE

23117-10H00

1
Out of stock

18

BOLT (6X12)

09103-06233

1
Out of stock

19

PIECE, CLUTCH PUSH

23121-49H10

1
Out of stock

20

CAMSHAFT, CLUTCH RELEASE

23200-49H00

1
Out of stock

21

BEARING, CL RELEASE THRUST

23129-35G00

1
Out of stock

22

WASHER (12X26X0.8)

09181-12016

1
Out of stock

23

BEARING (12X26X2)

09263-12019

1
Out of stock

24

BEARING (10X14X10)

09263-10014

2
Out of stock

25

OIL SEAL (10X17X5)

09285-10004

1
Out of stock
