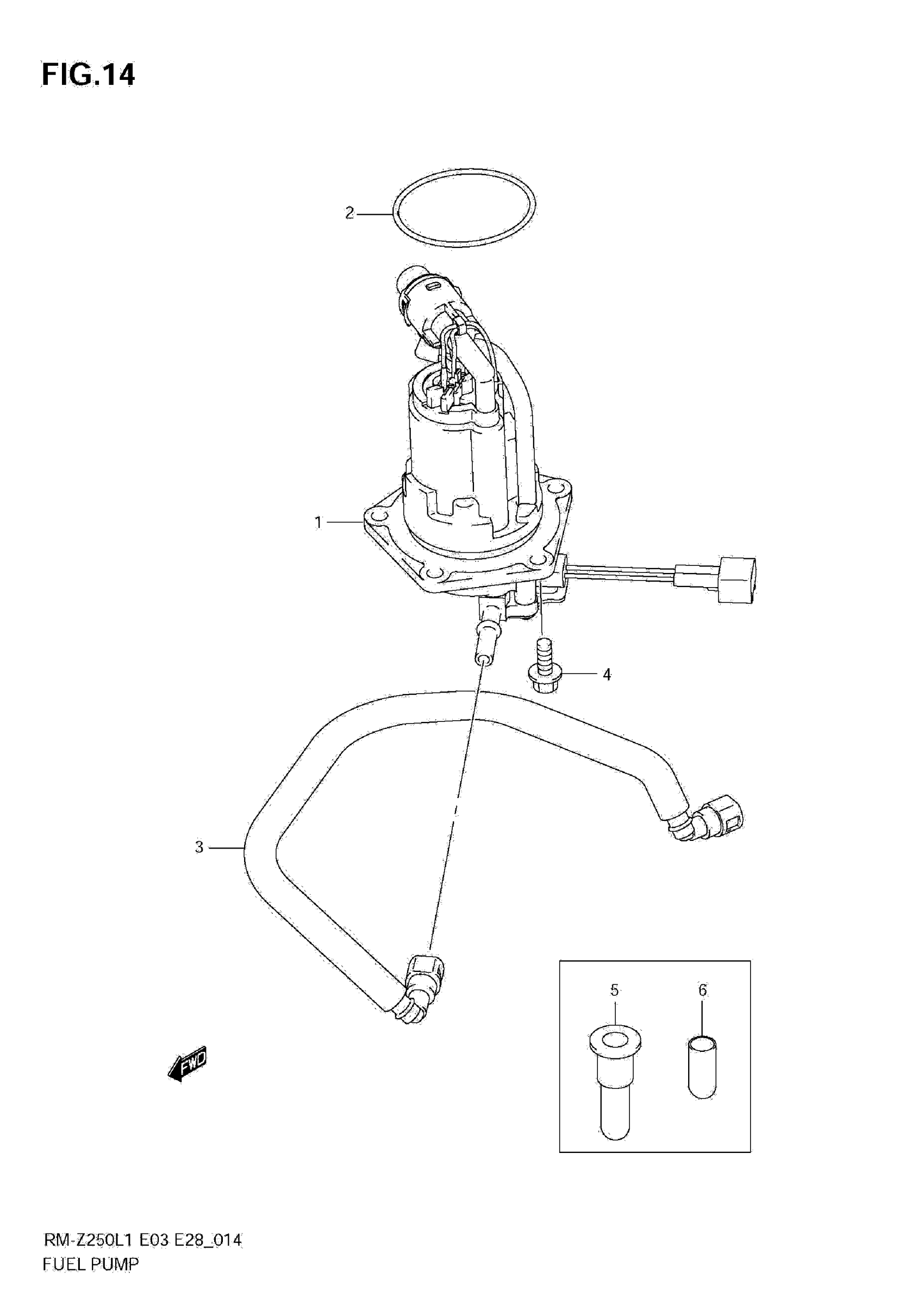

Suzuki RM-Z250L1 (2011) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY, FUEL This part replaces 15100-28H00.

15100-28H11

$416.73

2

O-RING

15111-28H00

$27.55

3

HOSE, FUEL

15810-49H10

$78.35

4

BOLT

01547-06207

$2.01

5

CAP, FULE HOSE

15819-28H00

$5.08

6

CAP, FUEL PUMP

15114-28H00

$5.17
