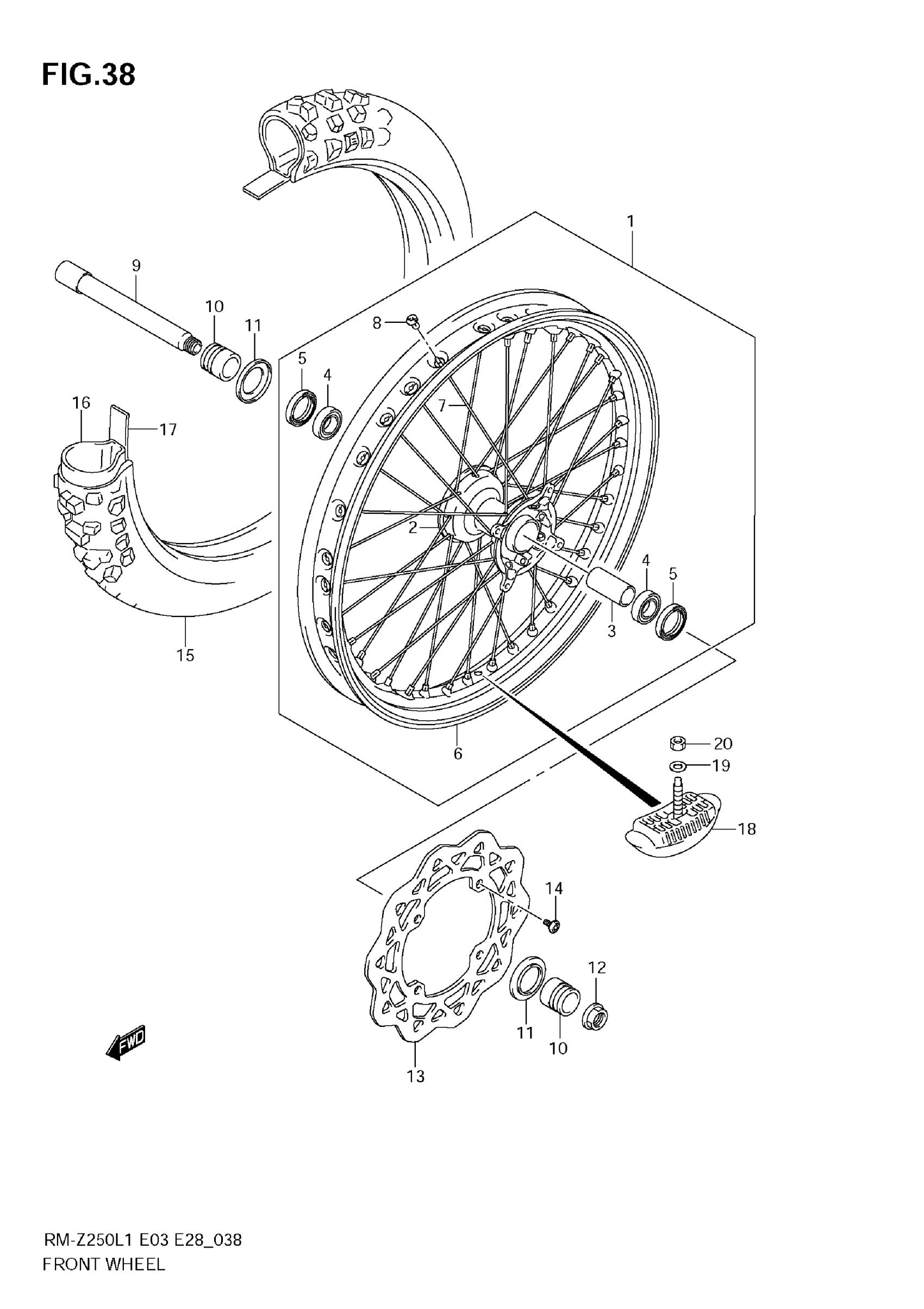

Suzuki RM-Z250L1 (2011) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL ASSY, FRONT

54100-10H00

Unavailable

2

.HUB,FR

54111-35G01

$298.30

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

$25.52

4

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

$46.03

5

.SEAL,OIL (30X40X7)

09283-30073

$17.28

6

RIM, FRONT WHEEL (1.60X21)

55311-10H00

Unavailable

7

.SPOKE,FR WHEEL

55321-35G10

$4.79

8

NIPPLE, FRONT WHEEL

55325-35G00

$5.83

9

AXLE,FR

54711-35G00

$115.85

10

SPACER,FR AXLE (L:41)

54741-35G00

$31.07

11

COVER,FR AXLE SPACER

54742-35G00

$8.98

12

NUT

09159-18016

$12.48

13

DISC, FRONT BRAKE

59221-28H10

$213.67

14

SCREW (6X13.5)

09139-06142

$3.97

15

TIRE, FRONT (80/100-21 51M) (DUNLOP)

55110-10H00

Unavailable

16

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

17

PROTECTOR, INNER TUBE

55261-44AF0

$6.88

18

STOPPER, BEAD

65270-14300

$52.73

19

WASHER

08322-0108A

$1.92

20

NUT

08310-0008A

$1.84
