Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-10H00

$43.74

2

GUIDE, CAM CHAIN NO.1

12771-49H00

$31.12

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

$11.95

4

RETAINER, CAM CHAIN GUIDE

12773-49H00

$7.27

5

.BOLT

07120-0610A

$2.30

6

TENSIONER,CAM C This part replaces 12811-10H00.

12811-10H01

$46.58

7

SPACER

12812-35G00

$15.17

8

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

9

ADJUSTER ASSY, TENSIONER

12830-10H00

$132.73

10

SPRING

12831-10H00

$6.87

11

BAR

12836-10H00

$8.42

12

PLUG

12833-10H00

$21.60

13

GASKET

12837-24F10

$4.78

14

O RING, ADJUSTER

09280-19001

$1.49

15

BOLT (6X25)

07130-0625A

$2.62

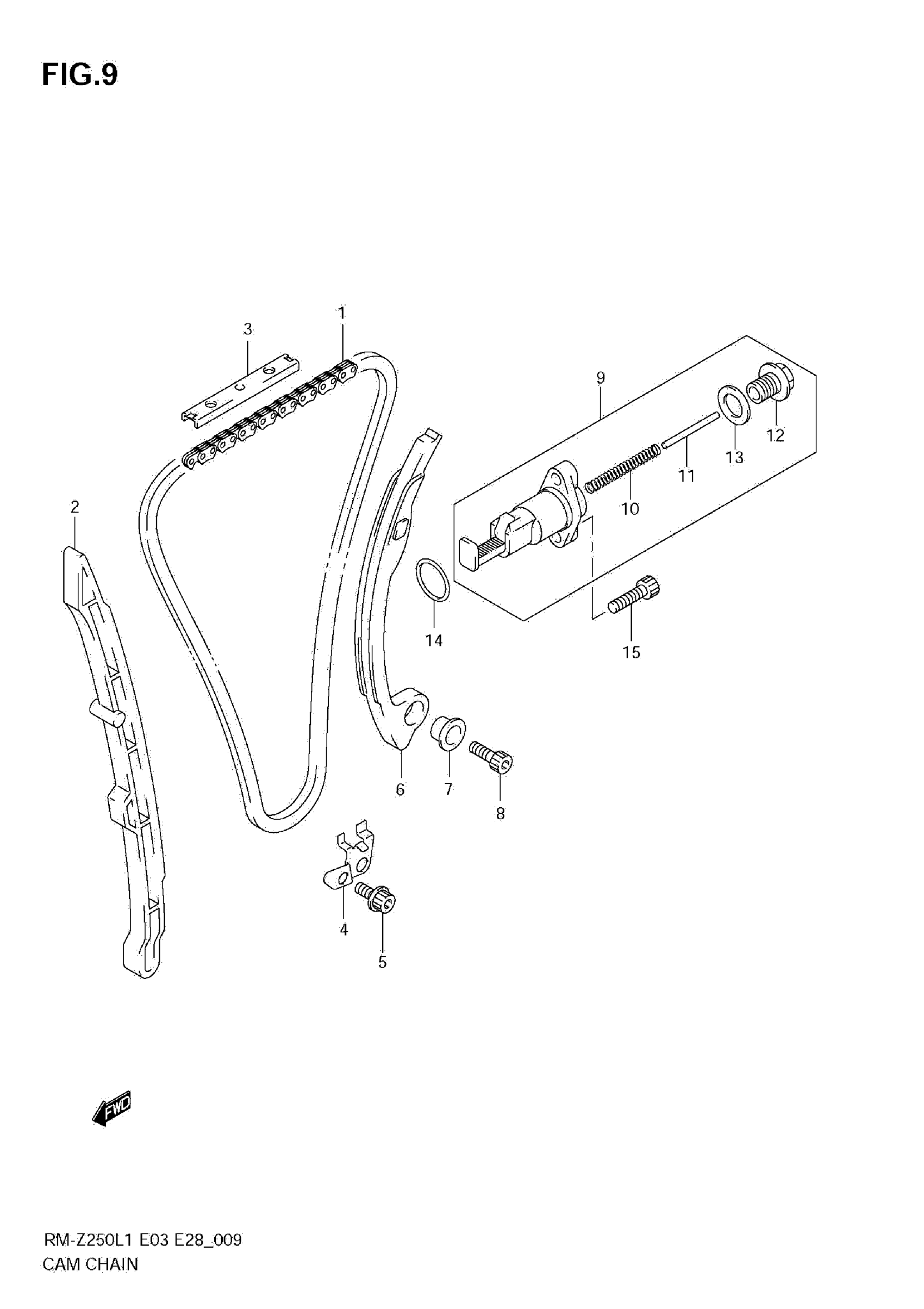

Suzuki RM-Z250L1 (2011) CAM CHAIN Diagram
