2010 Suzuki RM-Z250L0 Throttle Body Diagram

← All diagrams

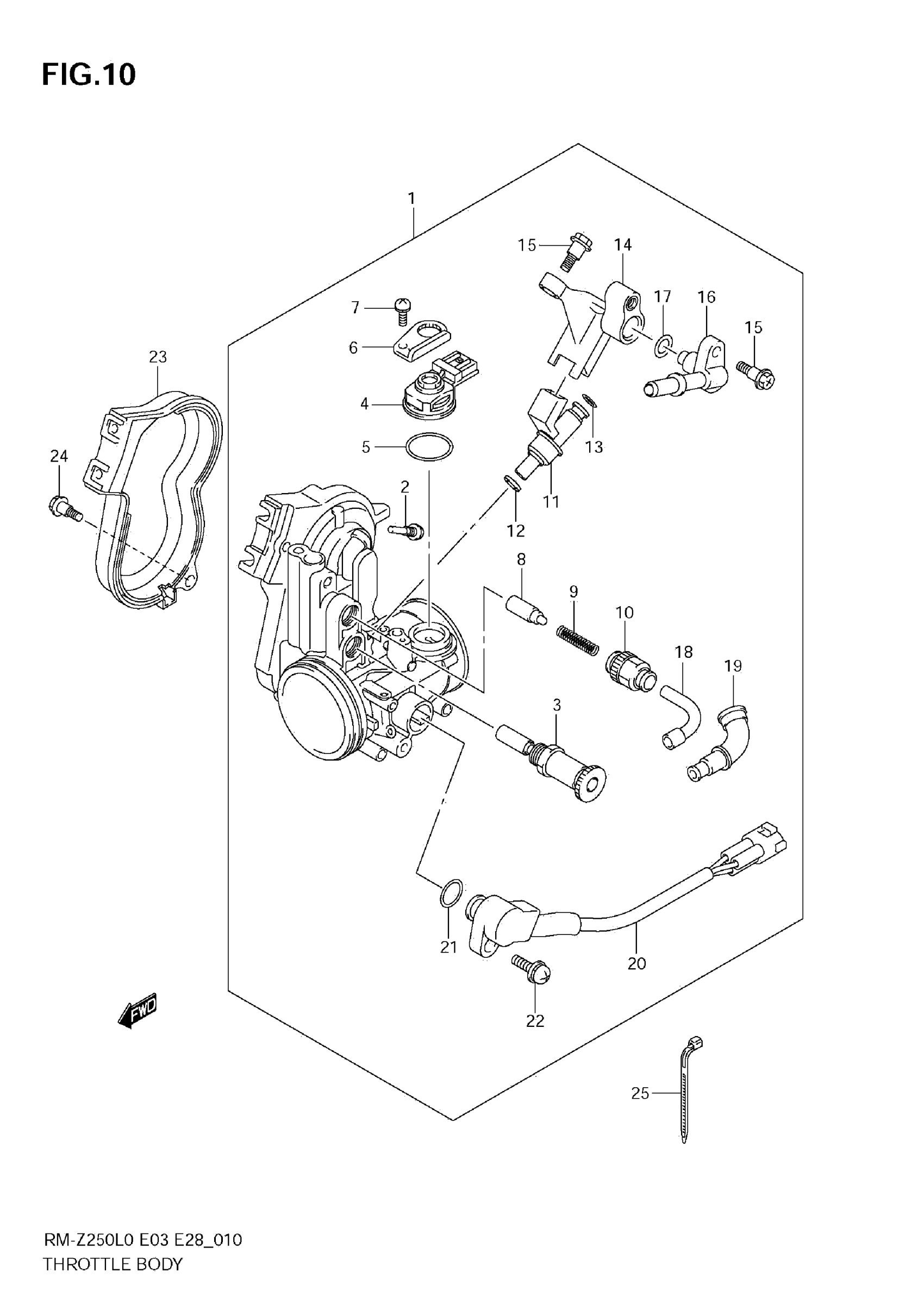

Find the part on the Throttle Body diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 13400-49H00.

13041-49H02

1
Out of stock

2

SCREW, STOP

13296-10H00

1
Out of stock

3

STARTER VALVE

13410-28H00

1
Out of stock

4

SENSOR, MAP

15620-05H00

1
Out of stock

5

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

6

PLATE, STAY

13565-28H00

1
Out of stock

7

SCREW

13601-15F20

1
Out of stock

8

STARTER VALVE

13411-28H00

1
Out of stock

9

SPRING

13271-45G00

1
Out of stock

10

HOLDER, CABLE

13581-45G00

1
Out of stock

11

INJECTOR ASSY

15710-49H00

1
Out of stock

12

.RING,SEAL

15722-21H00

1
Out of stock

13

.O-RING

15721-21H00

1
Out of stock

14

FUEL PIPE

13471-49H00

1
Out of stock

15

SCREW

13452-28H00

3
Out of stock

16

JOINT

13685-28H00

1
Out of stock

17

.O-RING

15721-24F00

1
Out of stock

18

GUIDE, CABLE

13579-28H00

1
Out of stock

19

CAP

13681-45G00

1
Out of stock

20

SENSOR ASSY, THROTTLE This part replaces 13580-28H00.

13580-28H01

1
Out of stock

21

O RING

13575-40F00

1
Out of stock

22

SCREW

13605-28H00

1
Out of stock

23

COVER

13484-49H00

1
Out of stock

24

BOLT

13601-28H00

2
Out of stock

25

CLAMP

09407-10403

1
Out of stock
