2010 Suzuki RM-Z250L0 Fuel Pump Diagram

← All diagrams

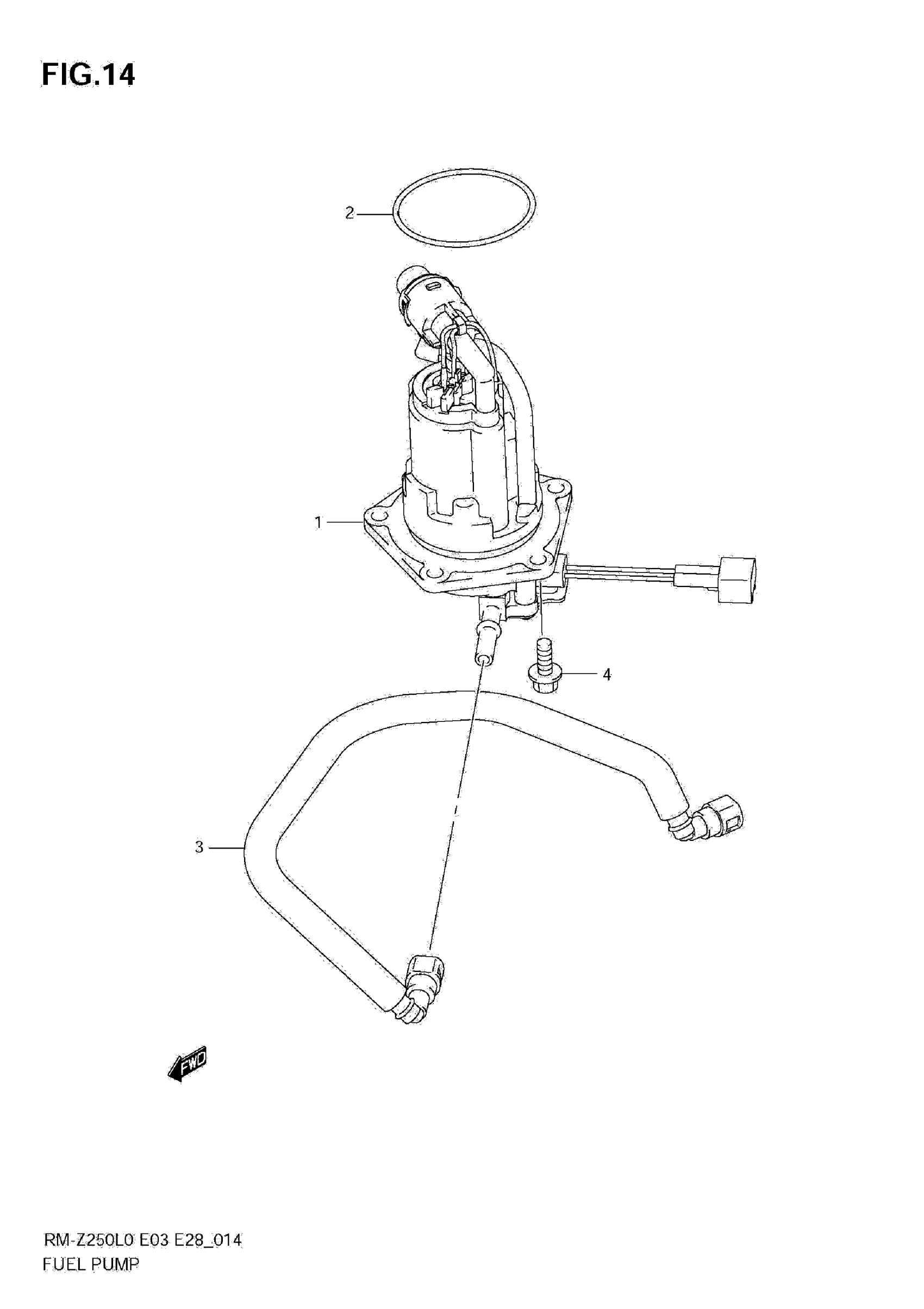

Find the part on the Fuel Pump diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL This part replaces 15100-28H00.

15100-28H11

1
Out of stock

2

O-RING

15111-28H00

1
Out of stock

3

HOSE, FUEL This part replaces 15810-49H00.

15810-49H10

1
Out of stock

4

BOLT

01547-06207

5
Out of stock
