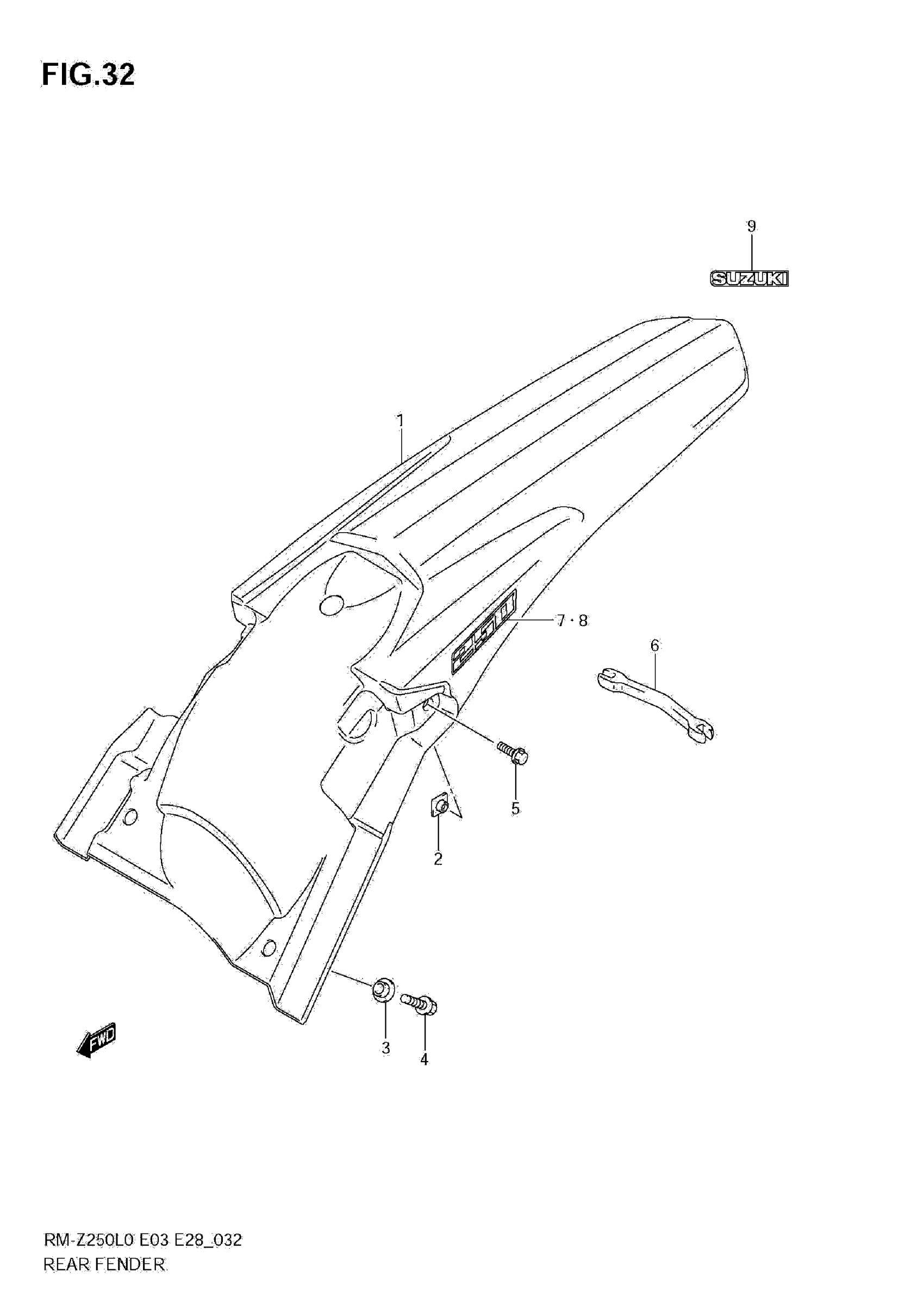

Suzuki RM-Z250L0 (2010) REAR FENDER Diagram

FENDER, REAR (YELLOW) This part replaces 63111-49H00-YU1.

63111-49H01-YU1

$72.33

NUT

09152-06024

$3.04

WASHER

63191-28H00

$9.68

BOLT This part replaces 09103-06235.

01547-06207

$2.01

BOLT, REAR

09103-06234

$2.17

SPANNER (6.4X6.8)

09813-00134

$20.67

TAPE, RH

68175-49H00-GY8

$19.60

TAPE, LH

68176-49H00-GY8

$19.60

EMBLEM,SUZUKI This part replaces 68131-21H00-019.

68131-21H01-019

$10.70
