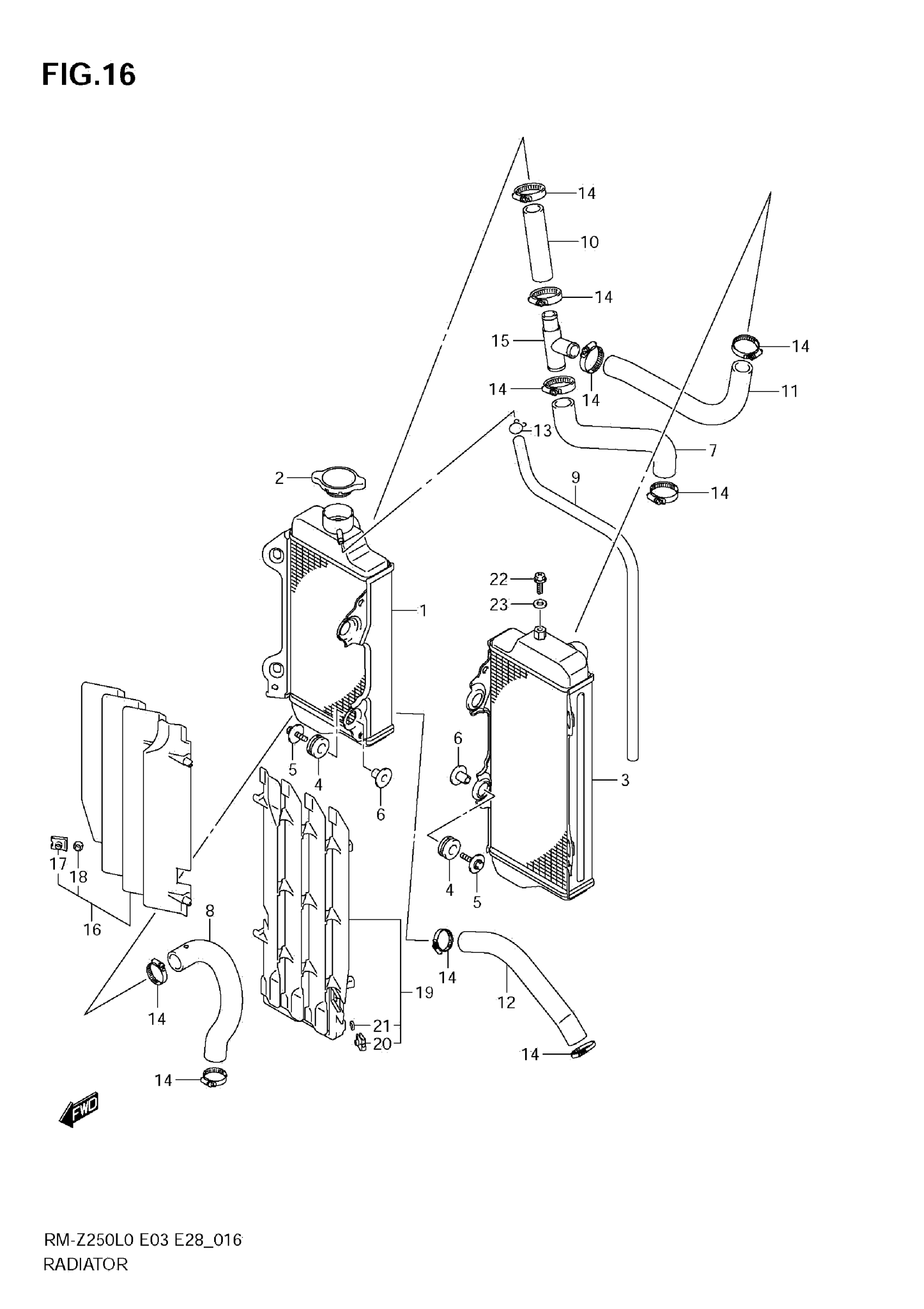

Suzuki RM-Z250L0 (2010) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH This part replaces 17710-49H00.

17710-49H02

$598.50

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

RADIATOR, LH This part replaces 17720-49H00.

17720-49H01

Unavailable

4

CUSHION, SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER

09180-06243

$5.46

7

HOSE, INLET NO.1

17851-49H00

Unavailable

8

HOSE, OUTLET

17852-49H00

$20.13

9

HOSE, OVERFLOW

09351-60801-700

Unavailable

10

HOSE, INLET NO.2

17853-49H00

Unavailable

11

HOSE, INLET NO.3

17854-49H00

Unavailable

12

HOSE, JOINT LOWER

17855-49H00

Unavailable

13

CLIP

09401-07101

Unavailable

14

CLAMP

09402-28513

$6.88

15

JOINT, RADIATOR HOSE

17857-35G10

$7.73

16

LOUVER, RADIATOR, R

17801-49H00

$34.60

17

.NUT

09148-06017

$3.20

18

.SPACER (6.2X10X2.2)

09180-06129

$2.12

19

LOUVER, RADIATOR, L

17802-49H00

$35.25

20

.NUT

09148-06017

$3.20

21

.SPACER (6.2X10X2.2)

09180-06129

$2.12

22

BOLT, AIR RELEASE

17568-50F00

$4.76

23

GASKET

09168-06026

$3.10
