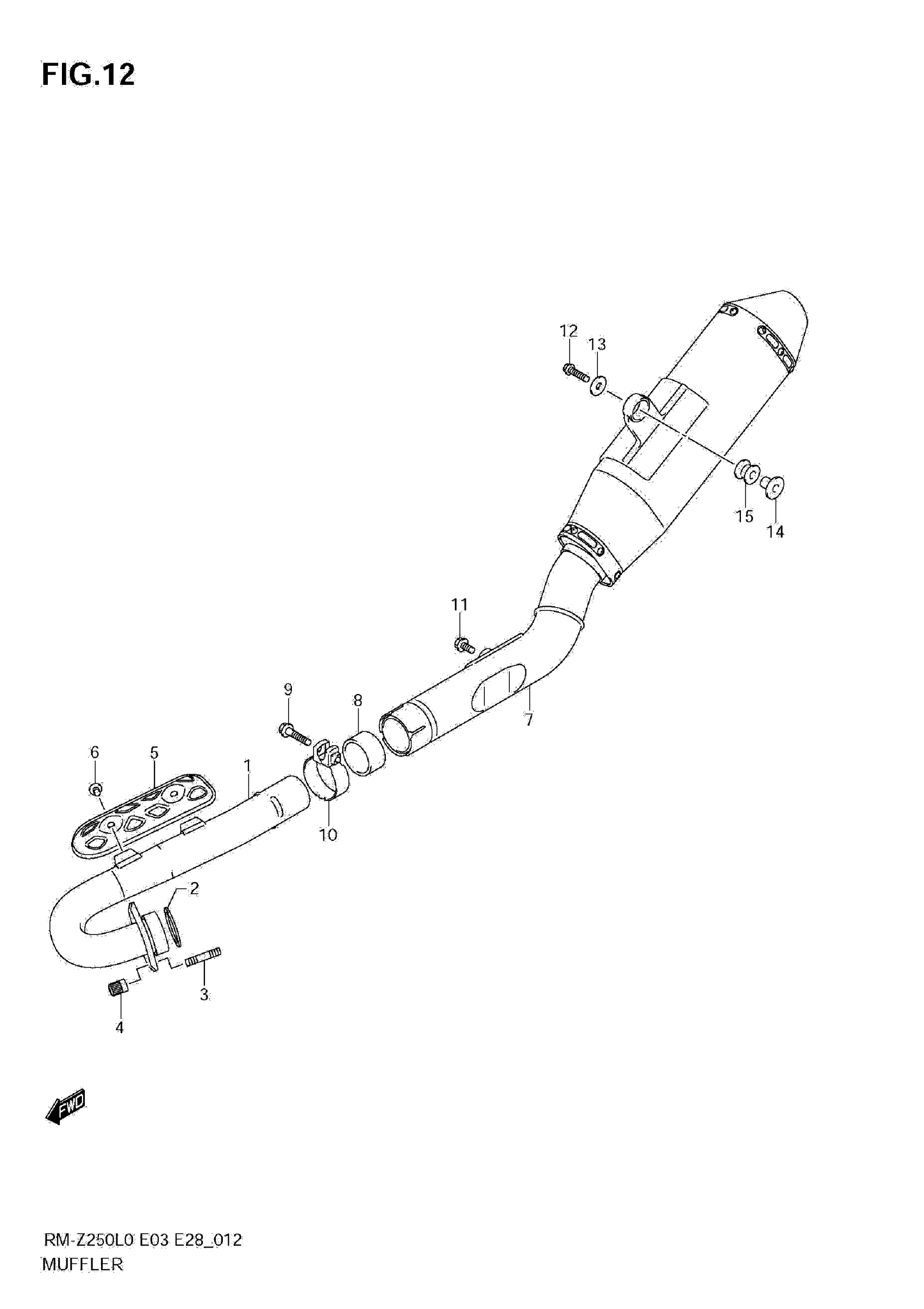

Suzuki RM-Z250L0 (2010) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-49H10

Unavailable

2

GASKET

14181-49H00

$10.98

3

BOLT, STUD

01421-0816A

$1.78

4

NUT

09159-08112

$5.83

5

COVER, EXHAUST PIPE

14186-49H00

Unavailable

6

SCREW (6X8)

09139-06178

$4.72

7

BODY, MUFFLER

14310-49H10

Unavailable

8

CONNECTOR

14771-45G00

$25.76

9

BOLT

07120-0835B

$4.58

10

CLAMP, CONNECTOR

14469-29F00

$23.40

11

BOLT (8X20)

09103-08426

$4.60

12

BOLT (8X35)

09103-08391

$2.50

13

WASHER

09160-08151

$1.99

14

SPACER

09180-08157

$7.12

15

CUSHION

09320-12043

$7.98
