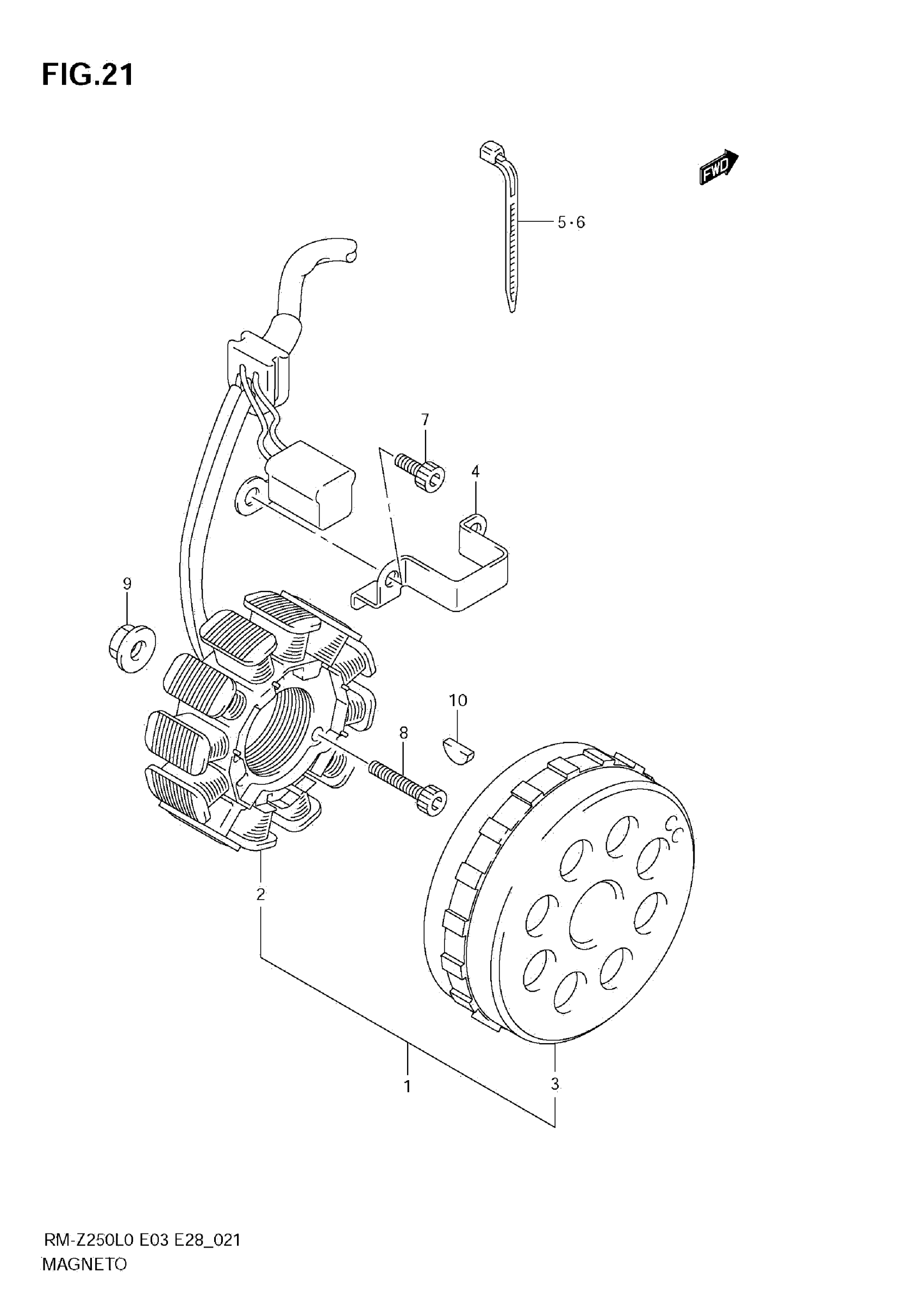

Suzuki RM-Z250L0 (2010) MAGNETO Diagram

#

Description

Price

1

MAGNETO ASSY This part replaces 32100-28H10.

32100-28H11

$924.13

2

STATOR ASSY, MAGNETO This part replaces 32101-28H10.

32101-28H11

$552.53

3

ROTOR ASSY, MAGNETO

32102-28H10

Unavailable

4

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

5

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:235)

09407-25401

$4.66

7

BOLT, SENSOR

07130-0512A

$2.19

8

BOLT, MAGNETO STATOR

07130-0525A

$2.28

9

NUT, MAGNETO ROTOR

08316-1012B

$2.76

10

KEY, MAGNETO ROTOR

08341-31039

$1.89
