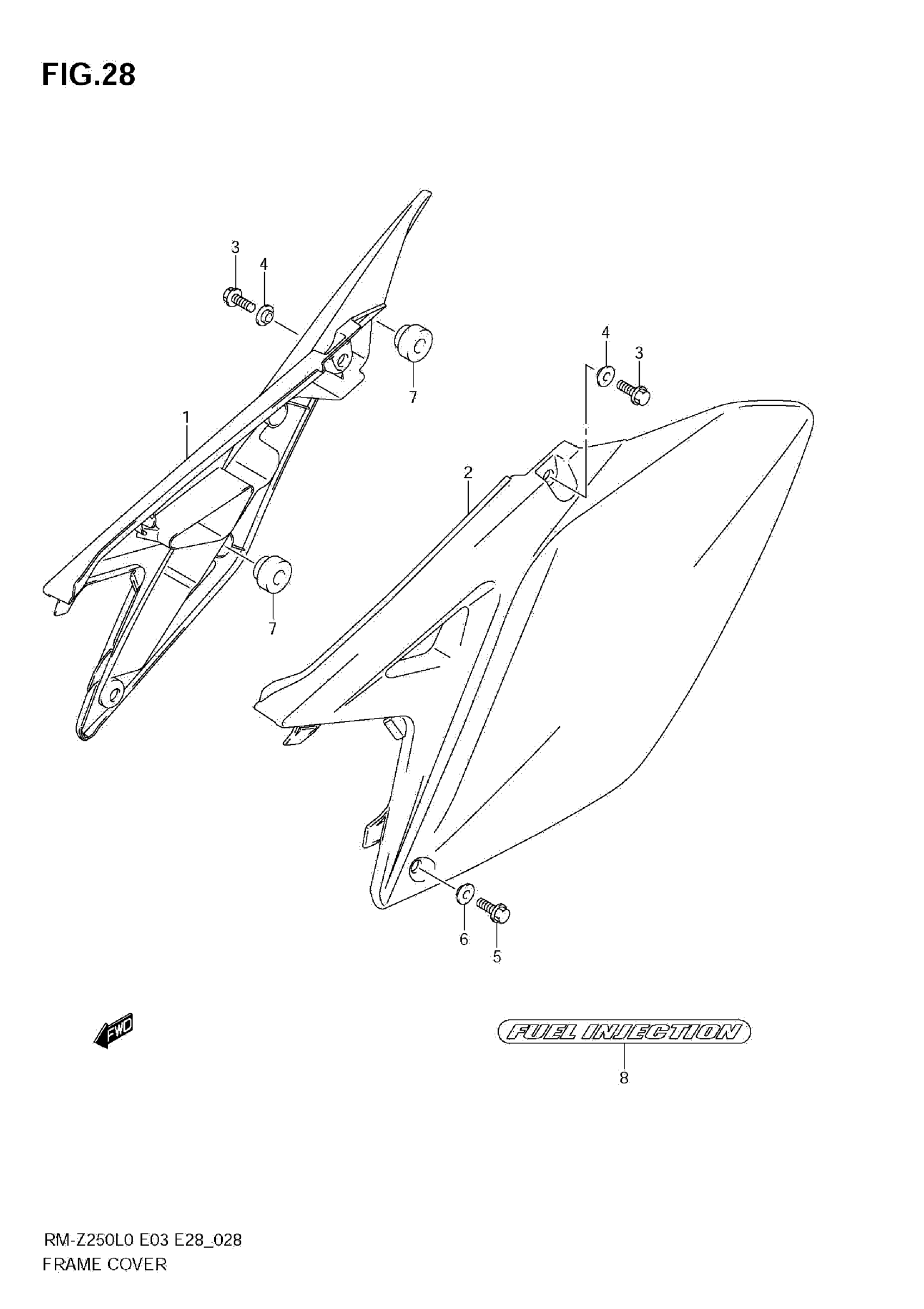

Suzuki RM-Z250L0 (2010) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH

47110-49H00-GY8

Unavailable

2

COVER, FRAME LH This part replaces 47210-49H00-GY8.

47210-49H01-GY8

Unavailable

3

BOLT, REAR

01547-06207

$2.01

4

WASHER This part replaces 47191-10H01.

47191-28H00

$9.03

5

BOLT, FRONT

09103-06234

$2.17

6

WASHER This part replaces 47191-10H01.

47191-28H00

$9.03

7

CUSHION, RH

47161-08G00

$10.88

8

EMBLEM

68131-28H00-FTY

$14.47
