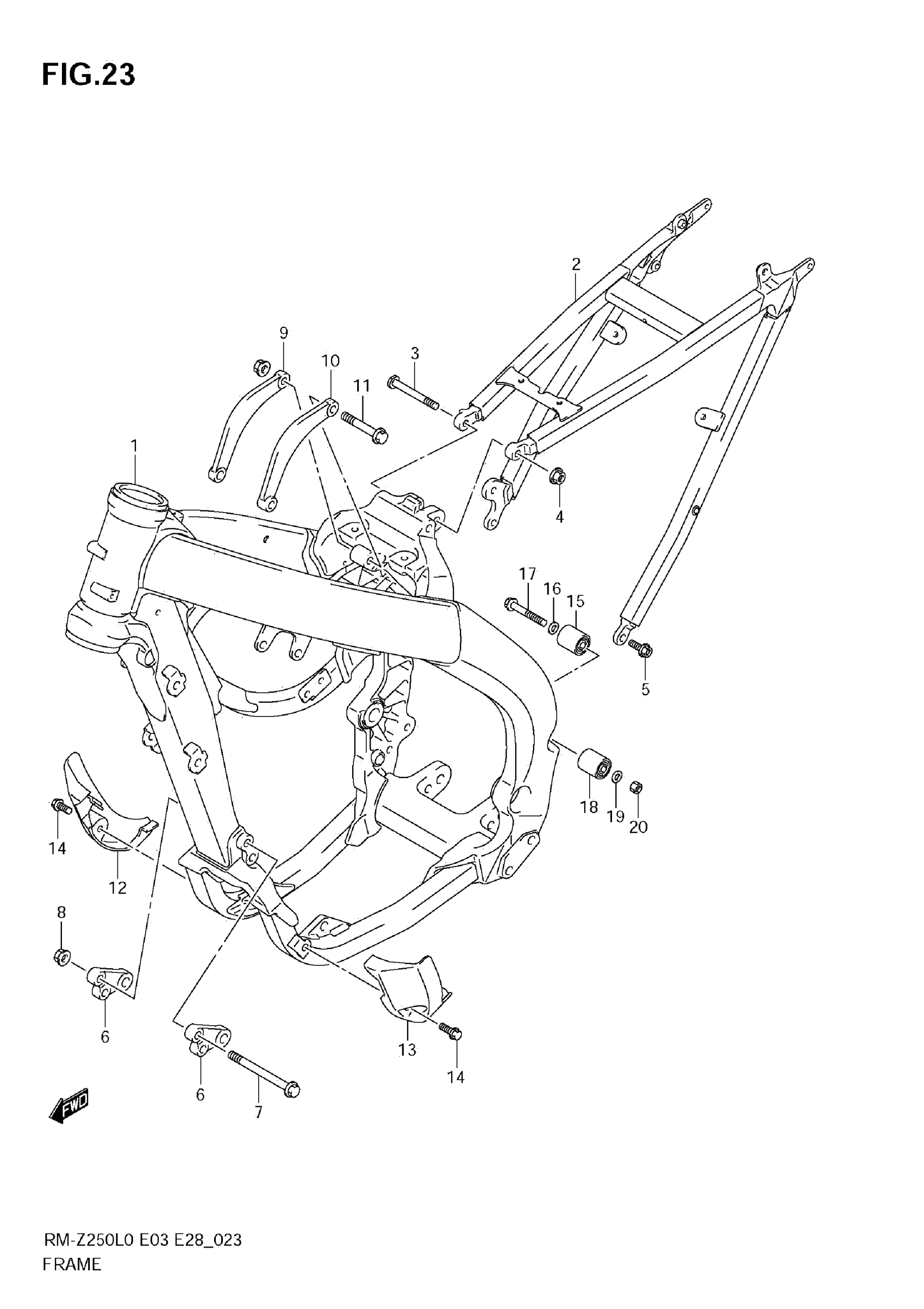

Suzuki RM-Z250L0 (2010) FRAME Diagram

#

Description
Price

1

FRAME

41100-49H00

Unavailable

2

RAIL, SEAT This part replaces 41200-49H00.

41200-49H10

Unavailable

3

BOLT, UPPER

41311-28H20

$19.12

4

NUT

08319-3108A

$2.32

5

BOLT, LOWER

09103-08506

$5.78

6

BRACKET, ENGINE MOUNT FRONT

41991-10H01

Unavailable

7

BOLT, FRONT

09103-08433

$3.93

8

NUT

09159-08067

$5.57

9

BRACKET, MOUNT UPPER RH

41994-49H00

Unavailable

10

BRACKET, MOUNT UPPER LH

41995-49H00

Unavailable

11

.BOLT (8X55)

09103-08339

$3.49

12

PROTECTOR, FRONT RH This part replaces 42520-10H00.

42520-10H02

$30.53

13

PROTECTOR, FRONT LH

42530-49H00

$27.23

14

BOLT

09116-06200

$3.16

15

ROLLER, CHAIN UPPER

43910-37F00

$70.53

16

WASHER, UPPER

09181-08167

$1.96

17

BOLT, UPPER

09103-08207

$2.51

18

ROLLER, CHAIN LOWER

43910-35G00

$65.18

19

WASHER, LOWER

09181-08111

$1.93

20

NUT, LOWER

08319-2108A

$2.12
