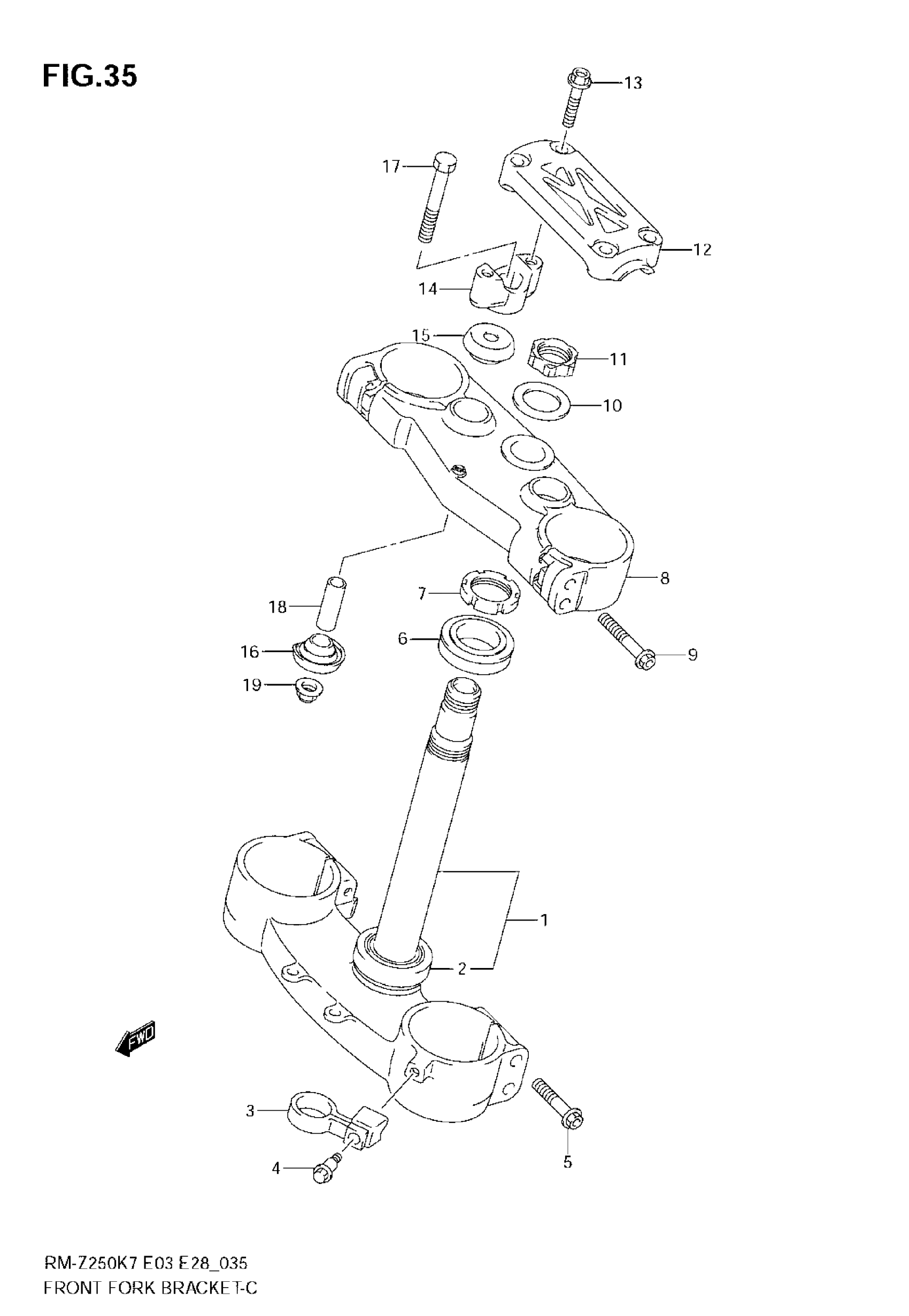

Suzuki RM-Z250 (2009) STEERING STEM (MODEL K7) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-10H00

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, BRAKE HOSE

58621-37F80

$12.16

4

BOLT, GUIDE

09111-06087

$2.71

5

BOLT

51328-37F80

$7.25

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

7

NUT, STEERING

51631-37F00

$34.15

8

HEAD, STEERING STEM

51310-10H00

Unavailable

9

BOLT

51328-37F80

$7.25

10

WASHER,STEM HEAD

51356-29E00

$15.29

11

NUT,STEM HEAD

51353-37F70

$40.35

12

HOLDER, HANDLE

56211-35G00

$34.15

13

BOLT, HANDLE HOLDER

51321-37F90

$6.19

14

HOLDER, HANDLE LOWER

56221-35G00

$58.13

15

CUSHION RUBBER UPPER This part replaces 56241-42AE0.

56241-42AE1

$29.29

16

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

17

BOLT

56321-35G00

$5.58

18

SPACER

56243-42A00

$8.03

19

NUT

08319-31107

$2.73
