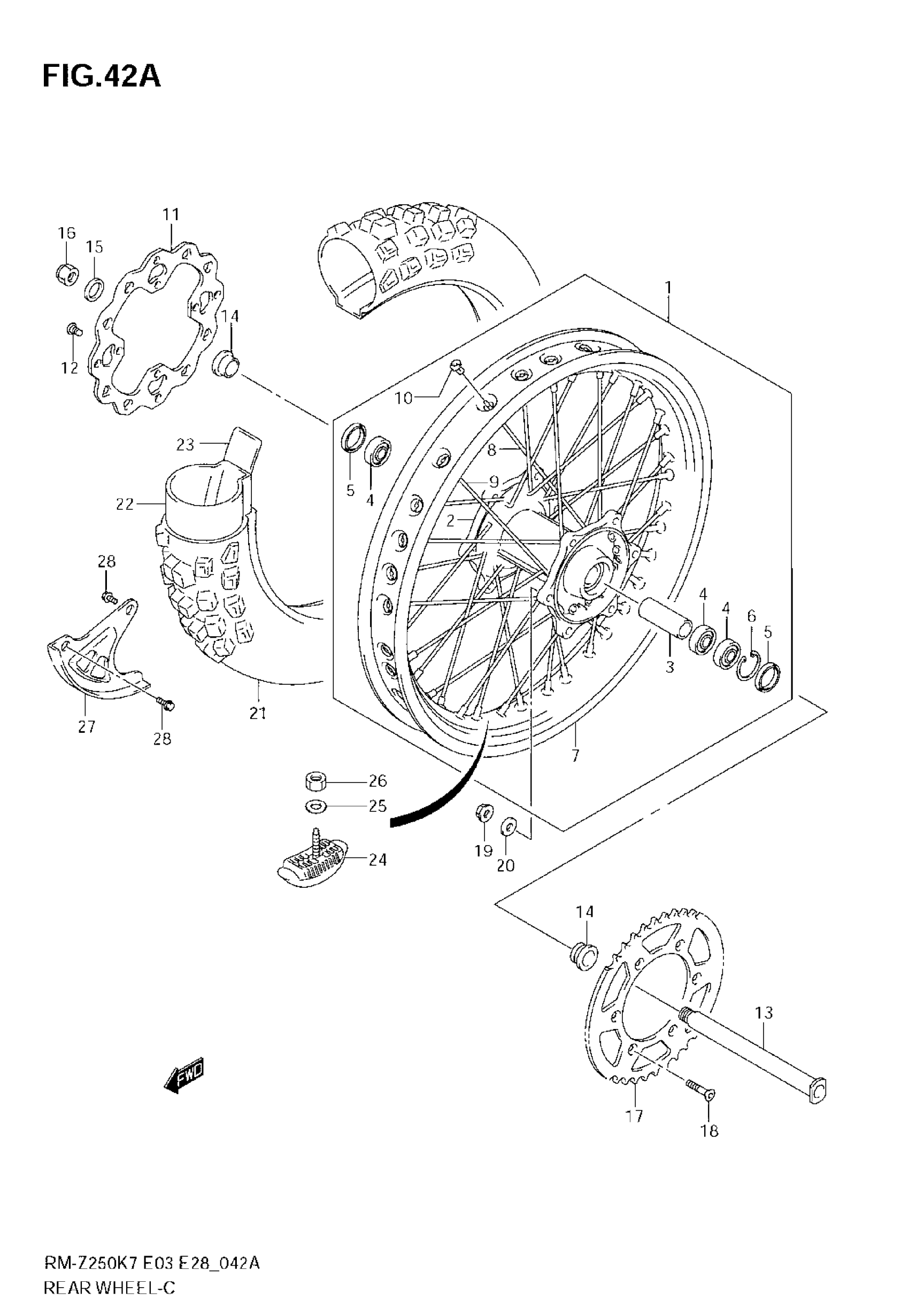

Suzuki RM-Z250 (2009) REAR WHEEL (MODEL K8/K9) Diagram

#

Description
Price

1

WHEEL ASSY,REAR This part replaces 64100-10H00.

64100-10H01

$987.72

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$273.98

3

.SPACER,RR HUB BEARING

64731-35G01

$39.55

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$46.28

5

.SEAL,OIL (32X43X7) | Includes Item(s) 6 This part replaces 09283-32045.

09283-32049

$12.32

6

CIRCLIP This part replaces 08331-4142A.

08331-41429

$2.41

7

RIM, REAR WHEEL (1.85X19) | Includes Item(s) 8 - 10

65311-10H00

Unavailable

8

.SPOKE,RR WHEEL INNER

65321-35G10

$4.79

9

.SPOKE,RR WHEEL OUTER

65322-35G10

$4.97

10

.NIPPLE,RR WHEEL

65325-35G10

$4.79

11

DISC,RR BRAKE This part replaces 69211-28H00.

69211-28H10

$211.15

12

SCREW

09139-08022

$4.45

13

AXLE,RR This part replaces 64711-35G00.

64711-35G10

$99.88

14

SPACER This part replaces 64751-35G00.

64751-35G01

$35.72

15

WASHER

09160-22081

$3.04

16

NUT

09159-22007

$19.20

17

SPROCKET,RR (NT:48)

64511-37E00

$175.05

17

SPROCKET,RR (NT:50) | OPT

64511-36E00

$126.60

17

SPROCKET, REAR (NT:51) | OPT

64511-40261

$155.22

17

SPROCKET,RR (NT:49) | OPT

64511-28E00

$120.85

17

SPROCKET, REAR (NT:47) | OPT

64511-29F00

$171.83

18

SCREW (8X30.5)

09120-08017

$2.62

19

NUT

09159-08133

$5.30

20

WASHER

09160-08082

$1.61

21

TIRE, REAR (100/90-19) (DUNLOP)

65110-36F00

Unavailable

22

TUBE This part replaces 55200-44610.

55200-44611

$33.73

23

PROTECTOR, INNER TUBE

65261-01B30

$6.97

24

STOPPER, BEAD

65270-43D00

$58.75

25

WASHER

08322-0108B

$2.34

26

NUT

08310-0008B

$2.70

27

COVER, REAR DISC This part replaces 69231-37F11.

69231-37F12

$14.65

28

BOLT

09116-06197

$2.71
