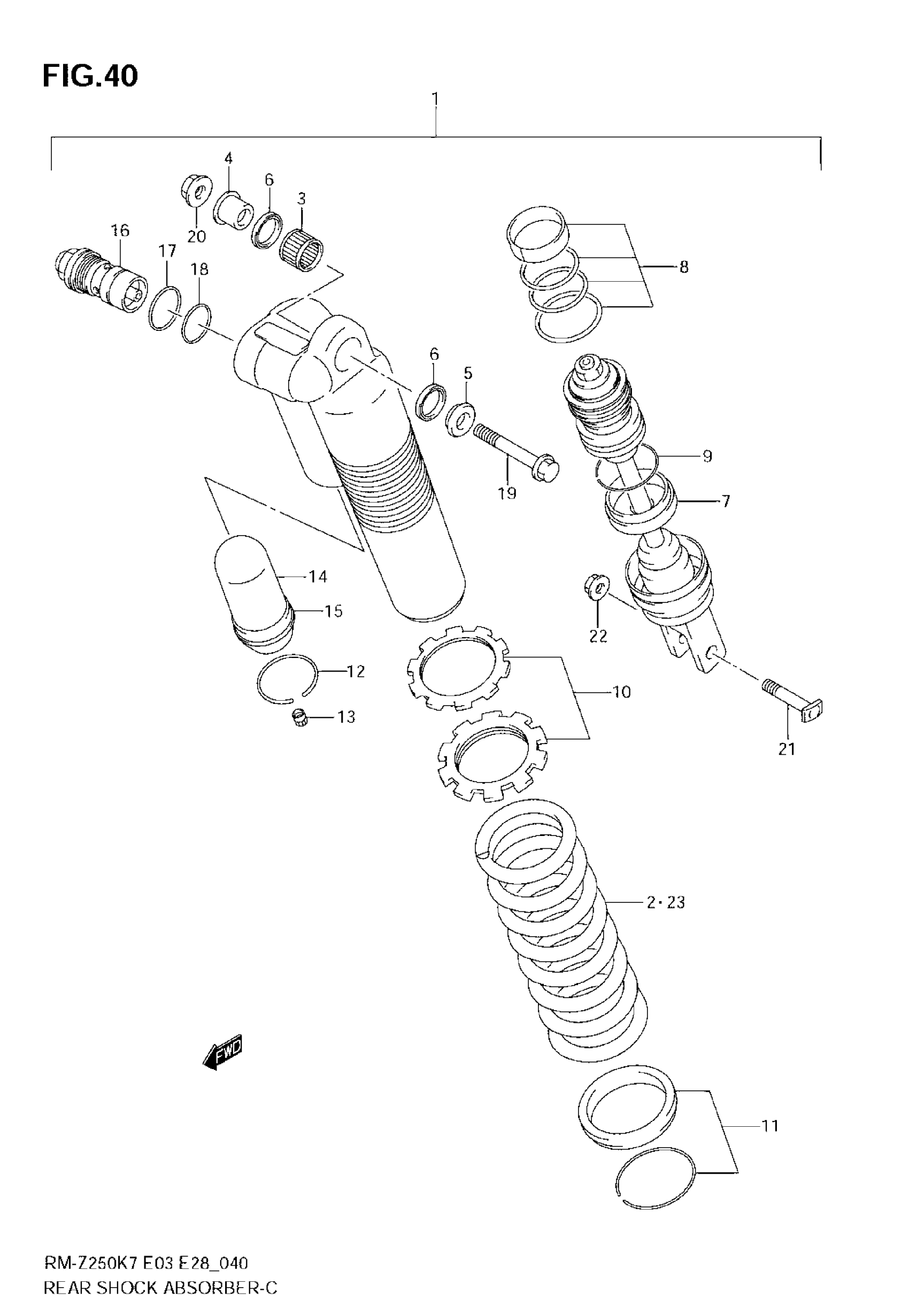

Suzuki RM-Z250 (2009) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED) | MODEL K7 E3

62100-10H20-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | MODEL K7 E28

62100-10H10-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | MODEL K8/K9 E3

62100-10H50-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | MODEL K8/K9 E28; Includes Item(s) 2 - 18

62100-10H40-YKS

Unavailable

2

SPRING (K=5.4)

62211-10H00

Unavailable

3

BEARING (16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

ROD, PISTON | MODEL K7

62120-10H00

Unavailable

7

ROD, PISTON | MODEL K8/K9

62120-10H30

Unavailable

8

O RING SET

62150-36EB0

$71.38

9

RING, STOPPER

62279-36E80

$6.85

10

ADJUSTER SET

62190-36F00

$116.65

11

SPRING SEAT SET

62220-36F00

$86.03

12

RING, STOPPER

62278-36E00

$8.60

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

BLADDER

62273-36F00

$63.97

15

CAP, CHAMBER | MODEL K7

62275-10H00

Unavailable

15

CAP, CHAMBER | MODEL K8/K9

62275-10H30

Unavailable

16

BOLT, PLUG | MODEL K7

62130-10H00

Unavailable

16

BOLT, PLUG | MODEL K8/K9

62130-10H30

Unavailable

17

O RING

62131-28E00

$5.00

18

O RING | MODEL K7

51174-43D00

$4.82

18

O RING | MODEL K8/K9

51174-36EB0

$5.33

19

BOLT

09103-10329

$5.50

20

NUT

09159-10115

$3.55

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

22

NUT

09159-10067

$6.11

23

SPRING (K=5.0) | OPT

62211-10H20

Unavailable

23

SPRING (K=5.2) | OPT

62211-10H10

Unavailable

23

SPRING (K=5.6) | OPT

62211-37FM0

Unavailable

23

SPRING (K=5.7) | OPT

62211-35G30

Unavailable
