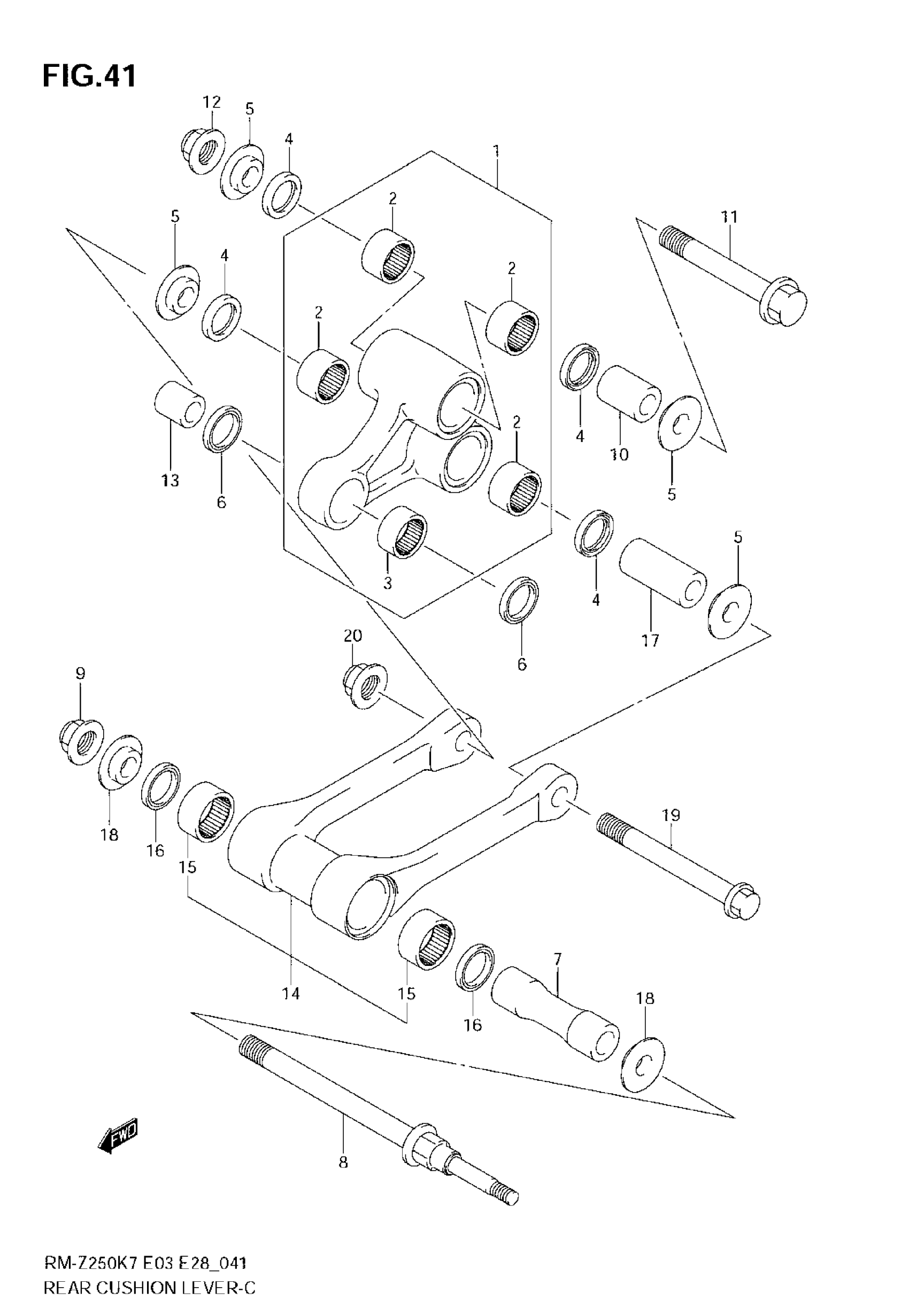

Suzuki RM-Z250 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-35850

Unavailable

2

BEARING (20X26X14)

09263-20090

$16.23

3

BEARING (20X26X12)

09263-20083

$24.56

4

SEAL, DUST (19X26X4)

09284-20003

$6.47

5

SPACER

62647-37F10

$16.15

6

SEAL, REAR (20X26X4.5)

09284-20001

$4.71

7

SPACER, RR CUSHION ROD

62317-37F10

$32.88

8

BOLT, RR CUSHION ROD | MODLE K7

62621-35G00

Unavailable

8

BOLT, RR CUSHION ROD | MODLE K8/K9

62621-28H00

$46.22

9

NUT

09159-12056

$7.37

10

SPACER, CENTER (15X20X44)

62648-37F10

$22.52

11

BOLT, CENTER

62658-37F10

$10.37

12

NUT

09159-12056

$7.37

13

SPACER, REAR CUSHION LEVER

62684-36E00

$16.57

14

ROD SET, REAR CUSHION LEVER | Includes Item(s) 15

62600-35860

Unavailable

15

BEARING

09263-20090

$16.23

16

SEAL

09284-20003

$6.47

17

SPACER,RR CUSHION LEVER LWR

62646-37F10

$26.93

18

SPACER

62647-37F10

$16.15

19

BOLT, ROD

62657-37F10

$10.65

20

NUT

09159-12056

$7.37
