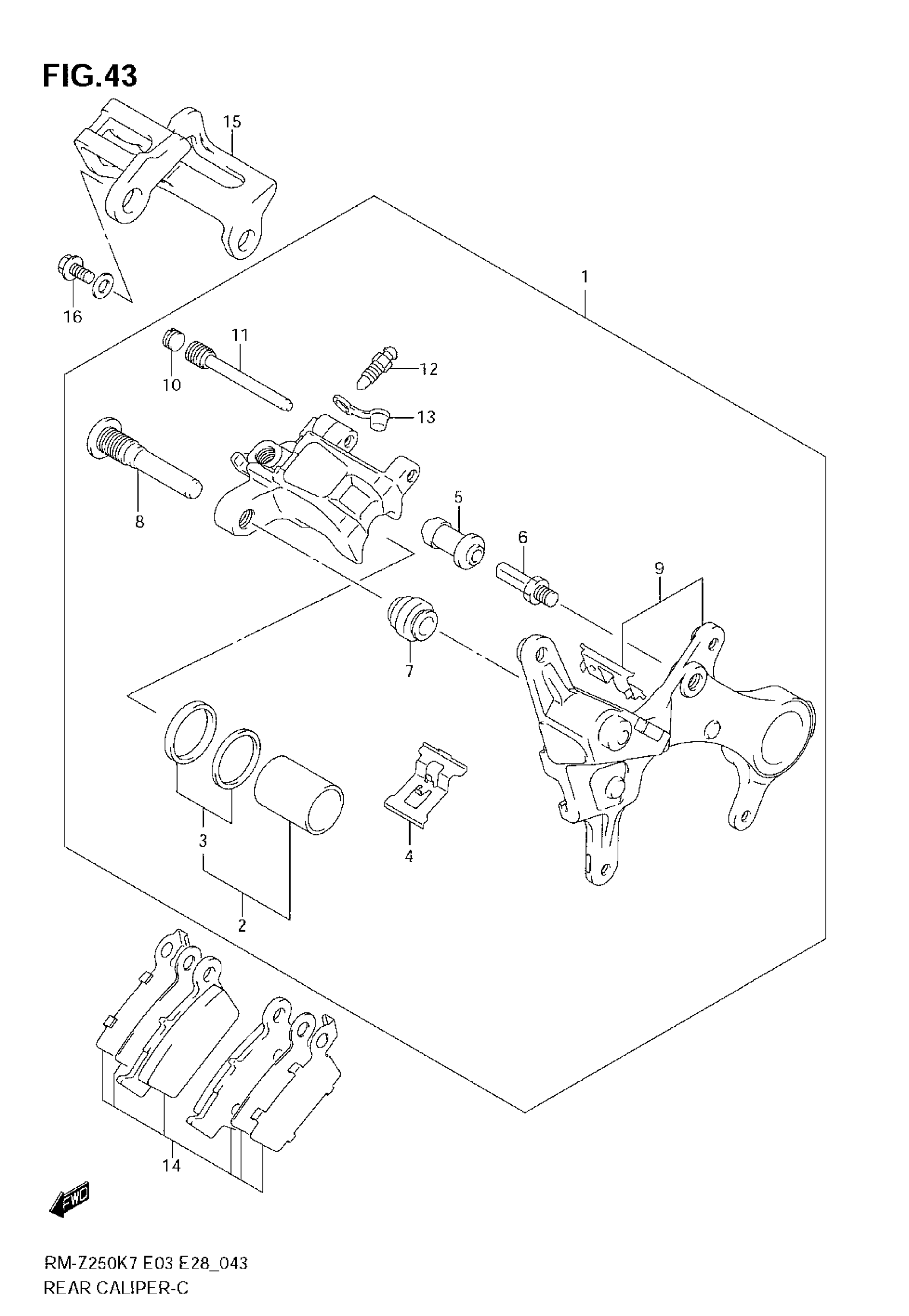

Suzuki RM-Z250 (2009) REAR CALIPER (MODEL K7) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-35G10-999

Unavailable

2

PISTON SET

69100-14820

$34.53

3

SEAL SET, PISTON

69100-21840

$13.60

4

SPRING

69315-35G00

$11.87

5

BOOT

59386-13A00

$7.95

6

PIN

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-36E00

$18.20

9

BRACKET

69350-35G01

$166.88

10

PLUG, PIN

59146-21E10

$6.15

11

.PIN HANGER

69345-43D00

$11.55

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD & SHIM SET

69100-35810

$64.77

15

GUARD, REAR CALIPER This part replaces 69725-37F00.

69725-37F01

$25.75

16

BOLT

09116-06197

$2.71
