Description

Price

1

GEAR, OIL PUMP IDLE

16321-10H00

$87.52

2

ROTOR SET, OIL PUMP NO.1

16410-10H00

$47.90

3

ROTOR SET, OIL PUMP NO.2

16420-35G00

$51.73

4

COVER, OIL PUMP NO.1 | Includes Item(s) 5

16430-10H00

$50.22

5

PIN (4X13.8)

04221-04089

$1.15

6

PLATE, OIL PUMP NO.1

16432-10H00

Unavailable

7

PIN

04211-09109

$1.70

8

BOLT

07130-0520B

$3.18

9

SHAFT, OIL PUMP DRIVEN GEAR

16440-10H00

$74.95

10

PIN, D:2.5, L:11.8

09261-02008

$1.53

11

WASHER

09181-08186

$2.06

12

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.82

13

CAP, ENG OIL FILTER OUTER

16315-35G10

$25.42

14

FILTER, ENG OIL

16510-35G00

$9.28

15

STRAINER, OIL

16520-10H00

$28.80

16

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$2.95

17

SPRING, OIL FILTER CAP

09440-10038

$2.88

18

BOLT (6X16)

09103-06234

$2.17

19

BOLT (6X35)

09103-06252

$2.92

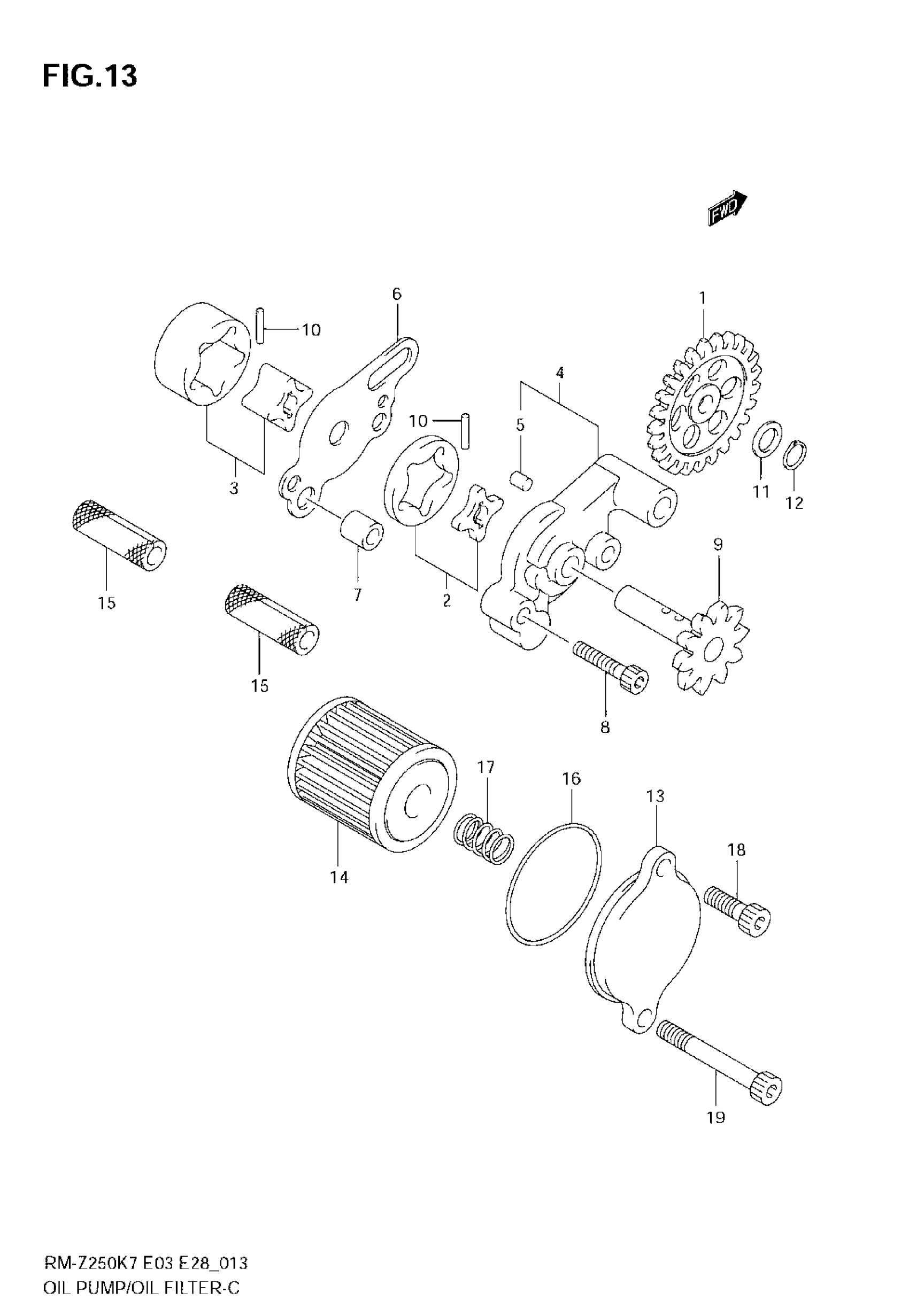

Suzuki RM-Z250 (2009) OIL PUMP/OIL FILTER Diagram
