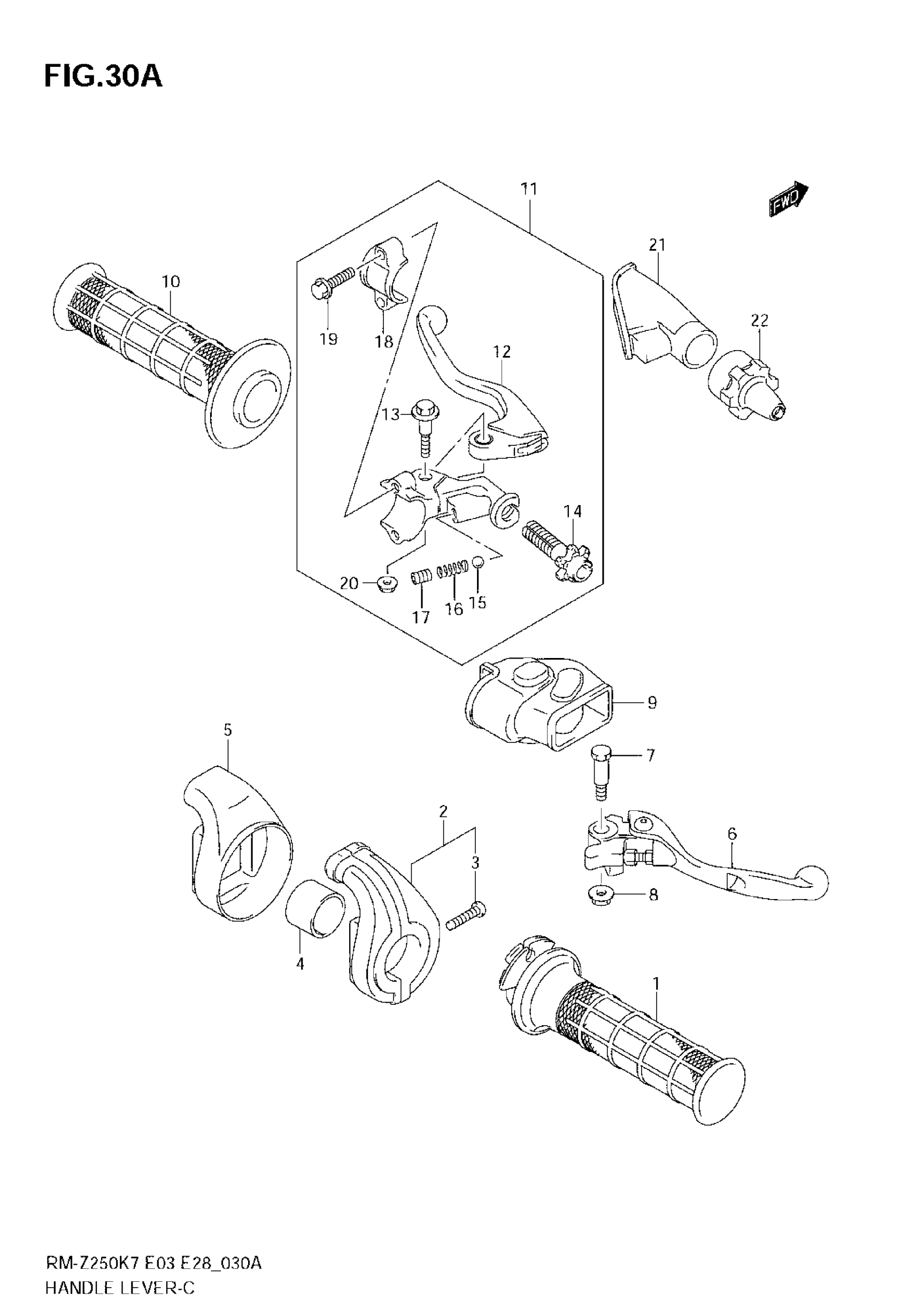

Suzuki RM-Z250 (2009) HANDLE LEVER (MODEL K8/K9) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-10H10.

57110-10H11

$55.98

2

CASE ASSY,THROTTLE | Includes Item(s) 3 This part replaces 57100-10H00.

57100-10H01

$110.77

3

SCREW

57141-35G00

$7.73

4

COLLAR

57151-35G00

$8.92

5

COVER, THROTTLE CASE

57129-35G00

$12.60

6

LEVER, BRAKE

57310-37F00

$36.54

7

BOLT, BRAKE LEVER

57431-14500

$6.28

8

NUT

08316-1006B

$2.50

9

COVER, BRAKE LEVER

57343-35G00

$19.03

10

GRIP,L

57211-28H00

$20.40

11

LEVER ASSY, CLUTCH | Includes Item(s) 12 - 20

57500-28H00

$168.03

12

LEVER, CLUTCH

57621-35G10

$22.30

13

BOLT

57431-35G00

$35.52

14

ADJUSTER, CABLE

57441-37F00

$137.02

15

BALL

06111-06003

$1.49

16

SPRING

09440-04003

$1.54

17

BOLT

09134-06009

$2.38

18

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

19

.BOLT, BRACKET

57513-29F10

$6.23

20

NUT

08310-00057

$1.84

21

COVER,CLUTCH LEVER This part replaces 57341-28H00.

57341-28H01

$10.70

22

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$7.65
