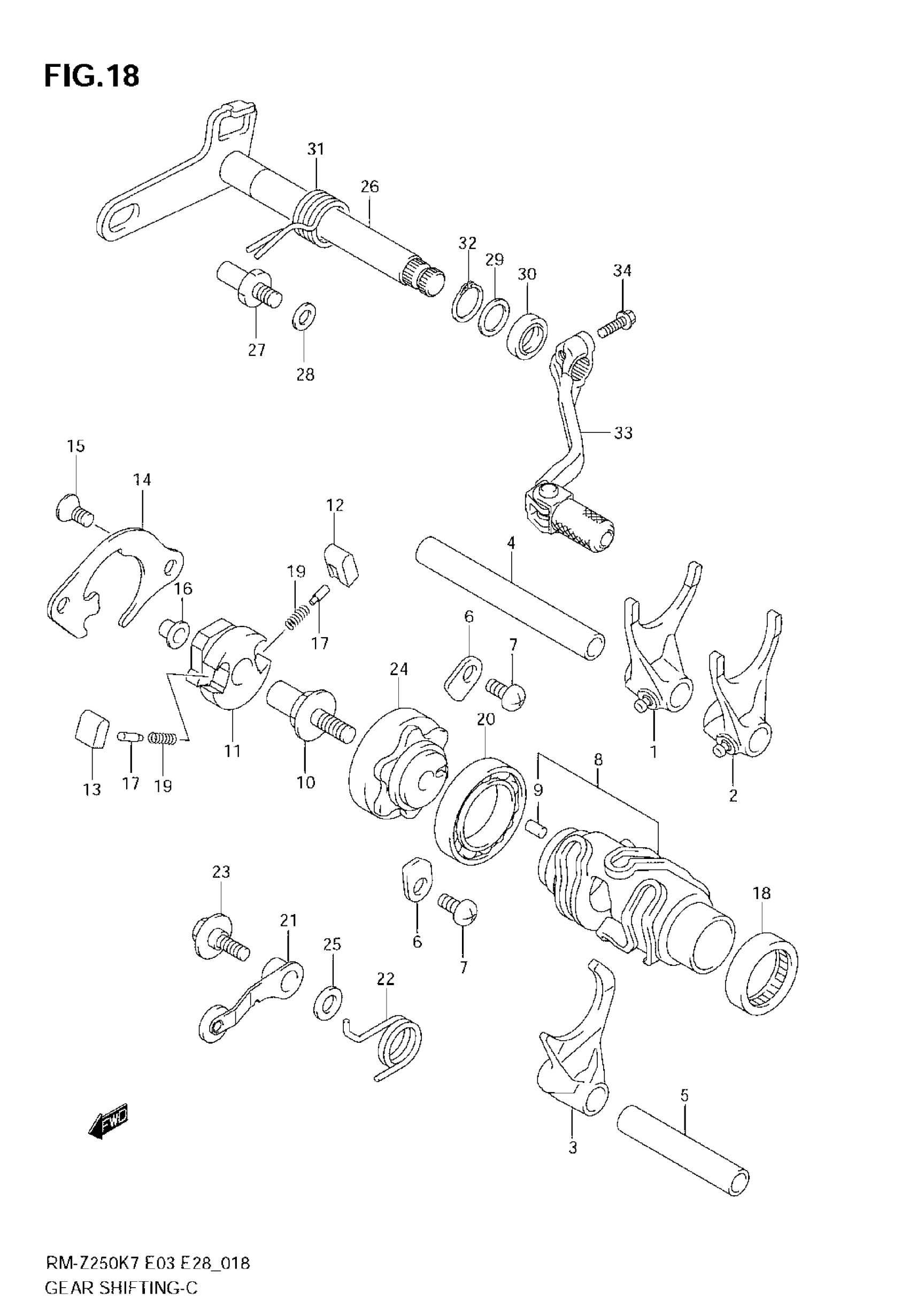

Suzuki RM-Z250 (2009) GEAR SHIFTING (MODEL K7) Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-10H00.

25211-10H10

$89.43

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-10H00.

25221-10H10

$89.43

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-10H01.

25231-10H10

$91.12

4

SHAFT, GEAR SHIFT FORK NO.1

25411-37F20

$22.22

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

$18.43

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

7

SCREW, RTNR (6X12)

09125-06110

$2.12

8

CAM, GEAR SHIFT | Includes Item(s) 9 This part replaces 25310-10H00.

25310-10H10

Unavailable

9

PIN, SHIFT CAM STOPPER

09261-04012

Unavailable

10

PIN, GEAR SHIFT CAM DRIVEN

25313-37F00

$14.77

11

SHIFTER, GEAR SHIFT

25322-36E00

$62.32

12

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

13

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

14

LIFTER, GEAR SHIFT PAWL

25331-10H00

$23.47

15

SCREW, SHIFT PAWL LIFTER | 6X12

09126-06011

$2.03

16

ROLLER, GEAR SHIFT

09180-07014

$4.11

17

PIN, SHIFT PAWL CLICK

09209-05023

$2.61

18

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$21.39

19

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

20

BEARING, GEAR SHIFT CAM, R

08140-69050

$35.66

21

STOPPER, GEAR SHIFT CAM

25350-10H00

$21.03

22

SPRING, GEAR SHIFT CAM

25355-10H01

$4.88

23

BOLT, STOPPER

25357-29F10

Unavailable

24

PLATE, GEAR SHIFT CAM STOPPER

25381-10H00

$77.75

25

WASHER, GEAR SHIFT CAM STOPPER

08211-06121

$1.54

26

SHAFT,GEAR SHIF This part replaces 25510-10H00.

25510-10H01

Unavailable

27

STOPPER, GEAR SHIFT ARM

25671-10H00

$5.98

28

WASHER, STOPPER (8.8X14X1)

09181-08139

$1.91

29

WASHER, GEAR SHIFT SHAFT | 14X22X6

09181-14139

$2.60

30

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

31

SPRING, SHIFT SHAFT RETURN

09444-20004

$8.13

32

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.91

33

LEVER ASSY, GEAR SHIFT This part replaces 25600-10H00.

25600-10H10

$128.72

34

BOLT, GEAR SHIFT LEVER

01547-06207

$2.01
