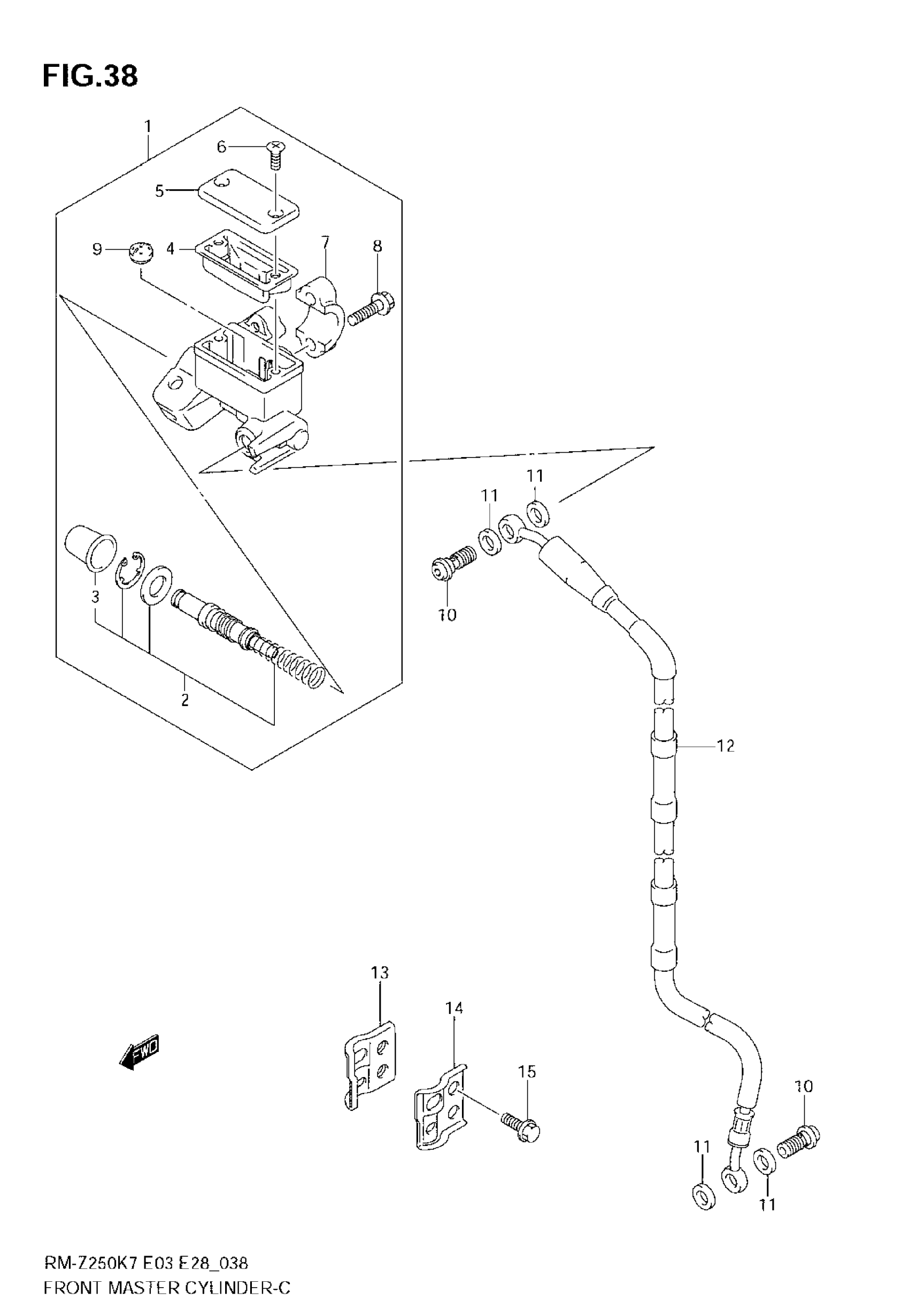

Suzuki RM-Z250 (2009) FRONT MASTER CYLINDER (MODEL K7) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-37F00.

59600-37F10

$226.62

2

PISTON & CUP SET

59600-37810

$58.68

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER (SILVER)

59671-27C00

$17.02

8

BOLT

59675-06F00

$4.73

9

SEPARATOR

59748-36E00

$9.37

10

BOLT (10X1.25X22)

09360-10065

$8.92

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE

59480-35G01

$303.80

13

CLAMP, INNER

59260-36E00

$11.55

14

CLAMP, OUTER

59271-36E00

$8.83

15

BOLT

09103-06234

$2.35
