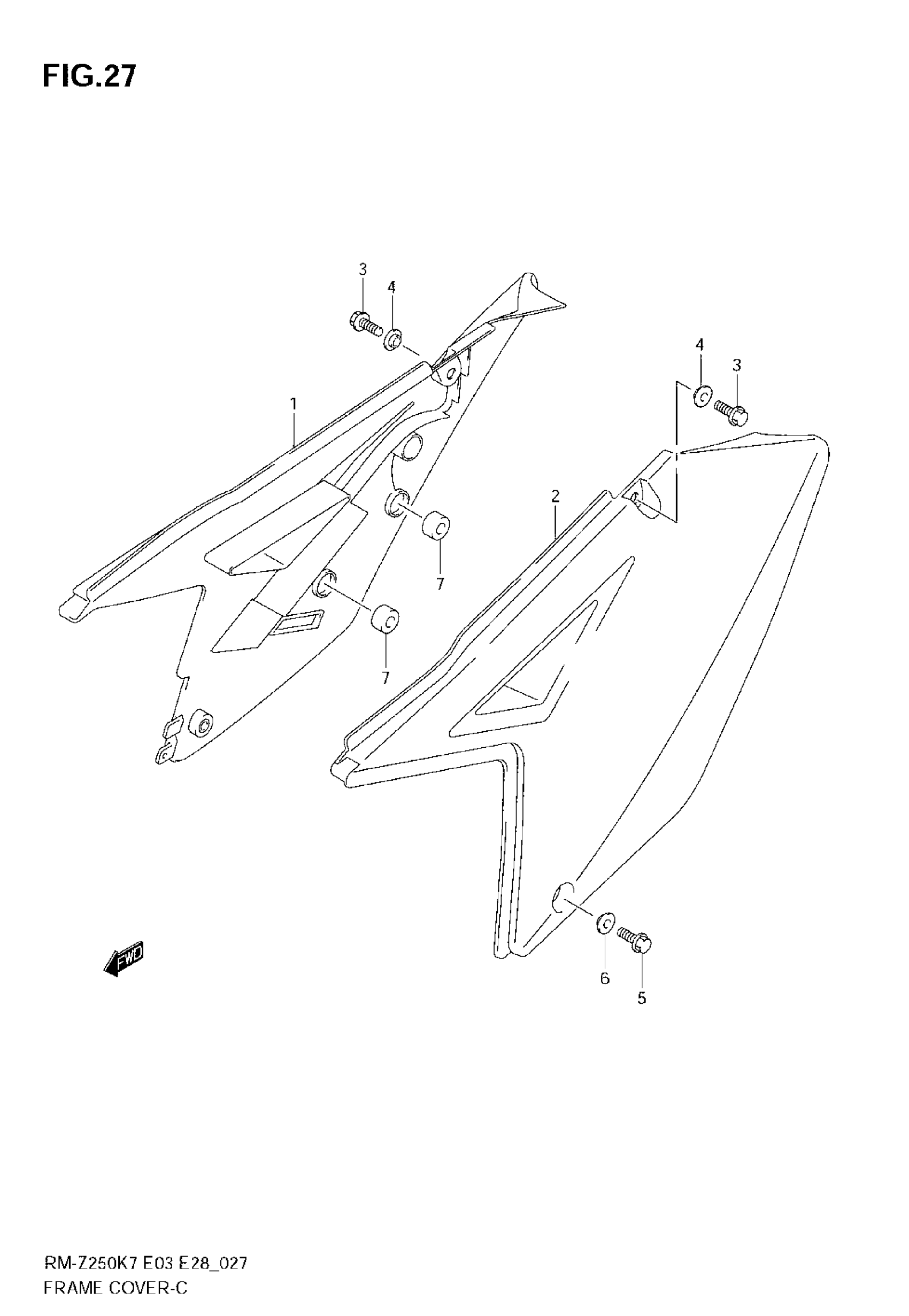

Suzuki RM-Z250 (2009) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-10H00-30H

Unavailable

2

COVER, FRAME LH (WHITE)

47211-10H00-30H

$117.28

3

BOLT, SEAT

09103-06234

$2.35

4

WASHER, SEAT

69232-37F01

$7.72

5

BOLT, FRONT

09103-06234

$2.35

6

WASHER This part replaces 47191-10H01.

47191-28H00

$9.60

7

CUSHION, RH

47161-37F00

$8.38
