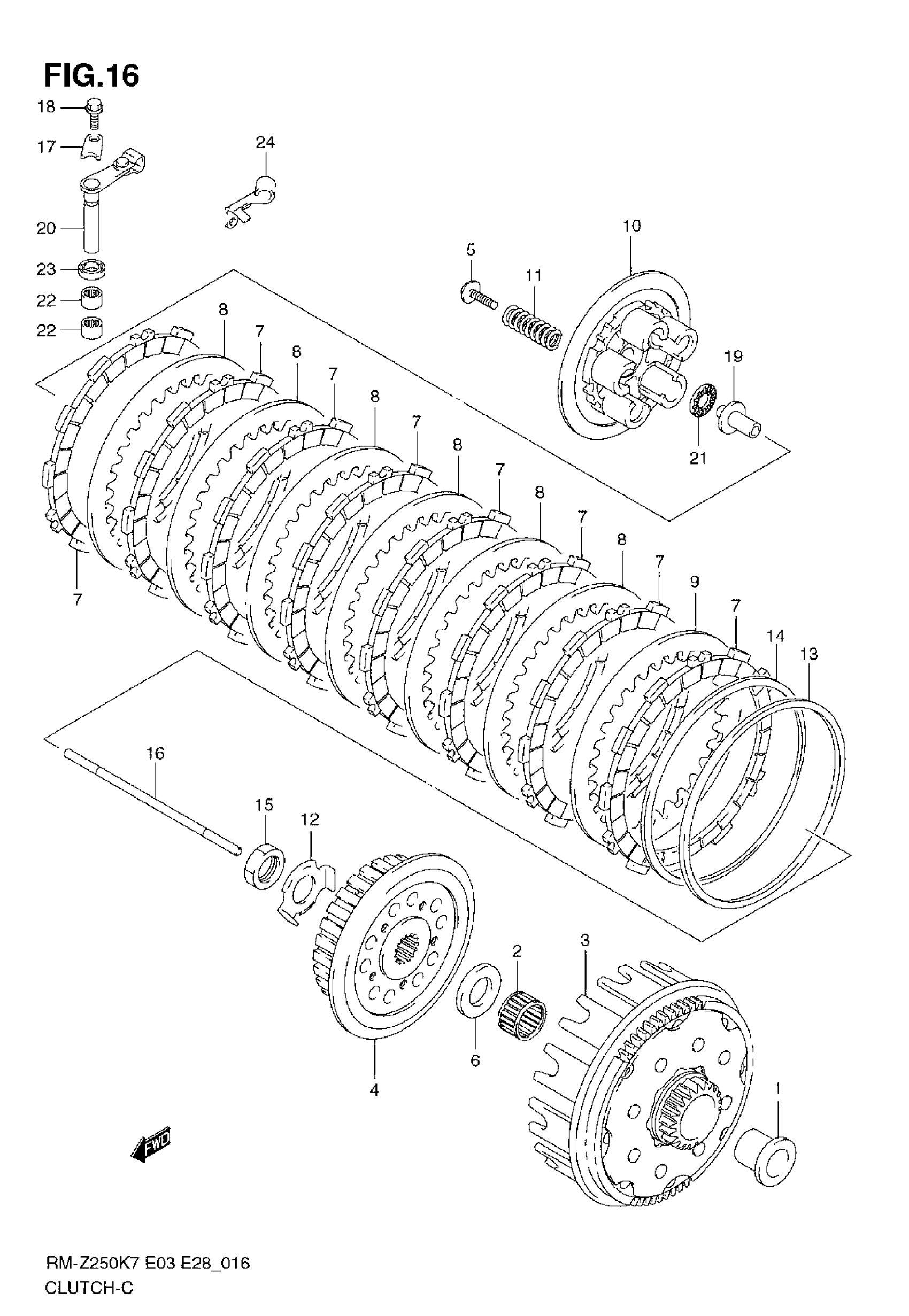

Suzuki RM-Z250 (2009) CLUTCH (MODEL K7) Diagram

#

Description
Price

1

SPACER, PRI DRIVEN GEAR | 27X32X21.8

21251-10H00

$50.30

2

BEARING, PRIMARY DRIVEN | 27X32X21.8

09263-27004

$33.15

3

GEAR ASSY, PRIMARY DRIVEN

21200-10H00

$405.63

4

HUB, CLUTCH SLEEVE

21411-10H00

$132.73

5

BOLT, CLUTCH SPRING | 6X32

21412-45G00

$3.25

6

WASHER, CLUTCH SLEEVE HUB | 22X45X3.0

09160-22083

$14.25

7

PLATE, CLUTCH DRIVE NO.1

21441-10H00

$32.47

8

PLATE, CLUTCH DRIVEN

21451-10H00

$9.89

9

PLATE, CLUTCH DRIVEN

21452-10H00

$15.73

10

DISC, CLUTCH PRESSURE

21462-10H00

$53.30

11

SPRING, CLUTCH

09440-18040

$8.02

12

WASHER, CLUTCH SLEEVE

21416-10H00

$4.72

13

SEAT, WAVE WASHER

21471-40F00

$14.34

14

WASHER, CLUTCH PLATE

21472-10H00

$21.50

15

NUT, CLUTCH SLEEVE HUB

09140-18020

$11.37

16

ROD, CLUTCH PUSH

23110-37F00

$18.15

17

RETAINER, CL RELEASE

23117-10H00

$5.10

18

BOLT, RTNR

09103-06233

$2.11

19

PIECE,CLUTCH PUSH

23121-37F00

$20.21

20

CAMSHAFT, CLUTCH RELEASE

23200-10H00

$86.92

21

BEARING, CL RELEASE THRUST | 10.1X22X2.8

09263-10002

$10.19

22

BEARING, CL RELEASE CAMSHAFT | 10X14X10

09263-10014

$13.52

23

SEAL, CL RELEASE CAMSHAFT OIL | 10X17X5

09285-10004

$3.37

24

BRACKET, CLUTCH CABLE

23911-10H00

Unavailable
