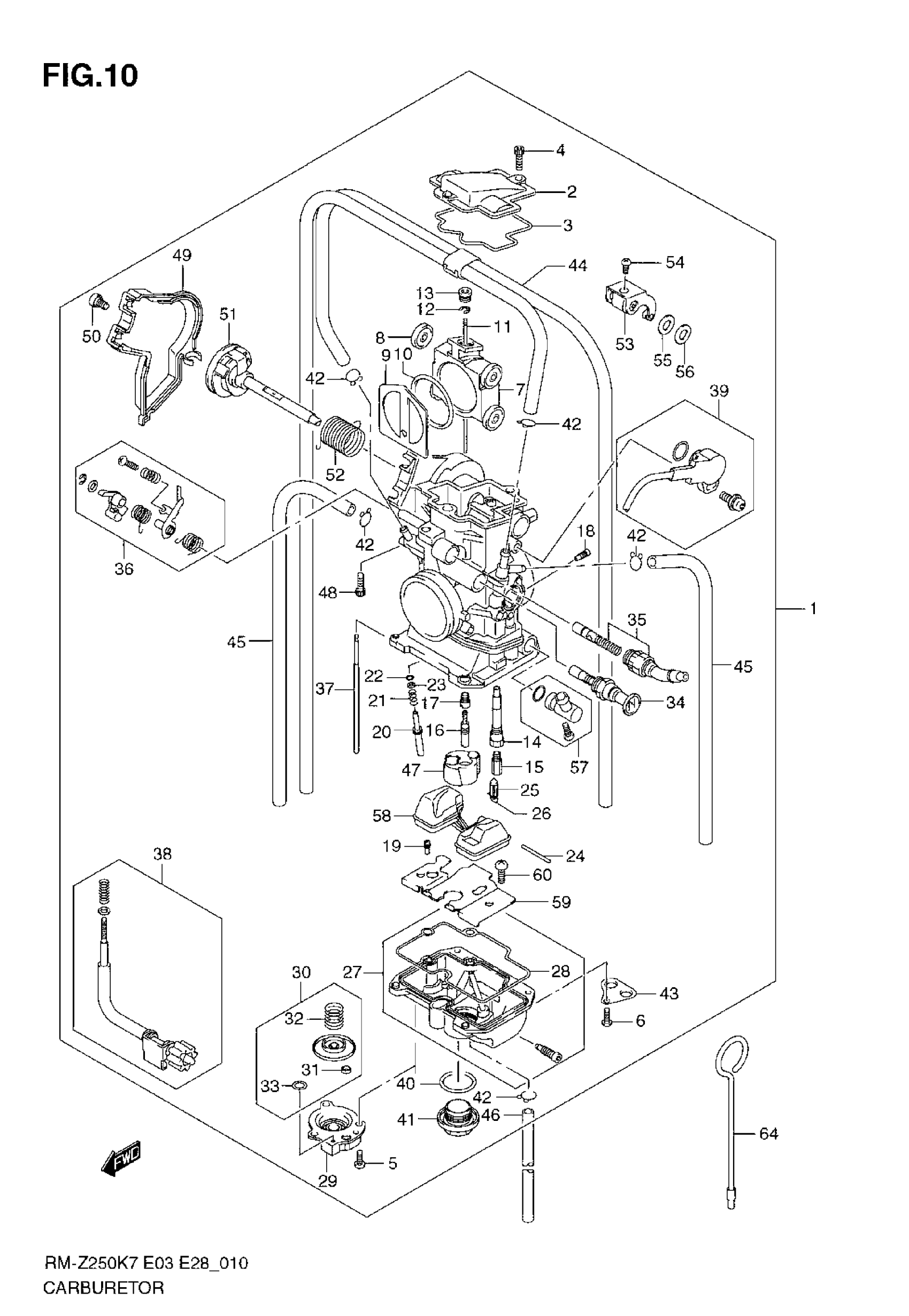

Suzuki RM-Z250 (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K7 E3

13200-10H00

Unavailable

1

CARBURETOR ASSY | MODEL K7 E28

13200-10H10

Unavailable

1

CARBURETOR ASSY | MODEL K8/K9 E3

13200-10H20

$1,580.10

1

CARBURETOR ASSY | MODEL K8/K9 E28; Includes Item(s) 2 - 60

13200-10H30

Unavailable

2

TOP

13261-35G00

Unavailable

3

O RING

13266-35G00

$24.07

4

BOLT

13612-29F10

$6.30

5

SCREW

13602-43E00

$3.05

6

SCREW

13602-35G00

$3.58

7

THROTTLE VALVE

13551-35G01

Unavailable

8

BEARING

13570-29F00

$13.47

9

FLOATING VALVE

13555-35G00

$316.32

10

LIP SEAL

13559-29F00

$23.73

11

NEEDLE, JET (NLCT) | MODEL K7 MODEL K8/K9 E3

13383-10H40

$22.75

11

NEEDLE, JET (NLDT) | MODEL K8/K9 E28

13383-10H50

$22.75

12

BAR CLIP

13394-29F00

$4.82

13

SCREW SET, JET NEEDLE

13600-35G00

Unavailable

14

MAIN, NOZZLE

13342-35G00

Unavailable

15

JET, MAIN, 162 | E3

09491-32011

$17.37

15

JET, MAIN, 170 | E28

09491-34010

$17.37

16

JET, SLOW, 45 | MODEL K7

09492-45032

$17.37

16

JET, SLOW, 42 | MODEL K8/K9

09492-42019

$14.76

17

JET, STARTER

09492-35G00

$17.37

18

JET, SLOW AIR

09492-35G10

$18.02

19

JET, ACC | MODEL K7 MODEL K8/K9 E3

09492-40025

$18.02

19

JET, ACC | MODEL K8/K9 E28

09492-45039

$18.18

20

SCREW, ADJUST | MODEL K7 MODEL K8/K9 E3

13279-29F00

$11.18

20

SCREW, ADJUST | MODEL K8/K9 E28

13279-10H00

Unavailable

21

SPRING

13271-29F00

$4.43

22

O RING This part replaces 13295-29F00.

13295-26E00

$4.34

23

WASHER This part replaces 13291-29F00.

13291-26E00

$2.93

24

PIN, FLOAT

13254-26E00

$4.43

25

VALVE, FLOAT

13370-29F00

$25.30

26

CLIP

13375-26E00

$5.44

27

FLOAT CHAMBER BODY SET

13250-10H00

$195.10

28

O RING

13251-35G00

$19.13

29

COVER

13488-29F00

$34.37

30

DIAPHRAGM SET

13480-10H00

$60.38

31

U RING This part replaces 13497-14F00.

13497-14F01

$3.32

32

SPRING

13494-15F00

$3.71

33

O RING

13673-26E10

$4.10

34

STARTER VALVE

13410-35G20

$37.52

35

STARTER VALVE

13410-10H00

$102.72

36

LEVER SET, PUMP

13490-35G10

$103.03

37

ROD

13487-35G00

Unavailable

38

SCREW SET

13270-35G00

$103.83

39

SENSOR SET, THROTTLE

13580-35G00

$228.60

40

O RING

13246-28E00

$5.17

41

BOLT, DRAIN

13247-10H00

$34.22

42

CLIP

09401-06101

$2.03

43

PLATE

13693-36E00

$6.77

44

PIPE SET, BOWL VENT

13680-35G00

$62.48

45

PIPE

13686-35G00

$13.73

46

PIPE

13684-35G00

$9.90

47

PLATE, BUFFER

13257-10H00

Unavailable

48

SCREW

13296-10H00

Unavailable

49

COVER

13311-35G00

$32.88

50

BOLT

13312-35G00

$18.87

51

THROTTLE SHAFT

13550-35G01

Unavailable

52

SPRING

13573-35G00

$15.25

53

LINK ARM

13564-35G00

Unavailable

54

SCREW

13605-35G00

$5.98

55

WASHER

13572-29F00

$3.15

56

WASHER

13574-35G00

Unavailable

57

JOINT SET

13670-35G00

$52.22

58

FLOAT

13240-35G00

$76.88

59

PLATE, BUFFER

13258-10H00

Unavailable

60

SCREW

13605-10H00

Unavailable

61

JET, MAIN (150) | OPT NOT SHOWN

09491-30018

$18.02

61

JET, MAIN (152) | OPT NOT SHOWN

09491-30019

$18.02

61

JET, MAIN (155) | OPT NOT SHOWN

09491-31012

$18.02

61

JET, MAIN (158) | OPT NOT SHOWN

09491-31013

$18.02

61

JET, MAIN (160) | OPT NOT SHOWN

09491-32010

$17.37

61

JET, MAIN (162) | OPT NOT SHOWN

09491-32011

$17.37

61

JET, MAIN (165) | OPT NOT SHOWN

09491-33009

$17.37

61

JET, MAIN (168) | OPT NOT SHOWN

09491-33010

$17.37

61

JET, MAIN (170) | OPT NOT SHOWN

09491-34010

$17.37

61

JET, MAIN (172) | OPT NOT SHOWN

09491-34011

$17.37

61

JET, MAIN (175) | OPT NOT SHOWN

09491-35009

$17.68

61

JET, MAIN (178) | OPT NOT SHOWN

09491-35010

$18.02

61

JET, MAIN (180) | OPT NOT SHOWN

09491-36008

$18.02

61

JET, MAIN (185) | OPT NOT SHOWN

09491-37008

Unavailable

61

JET, MAIN (190) | OPT NOT SHOWN

09491-38011

Unavailable

62

JET, SLOW (35) | OPT NOT SHOWN

09492-35019

$17.68

62

JET, SLOW (40) | OPT NOT SHOWN

09492-40022

$17.37

62

JET, SLOW (42) | OPT NOT SHOWN

09492-42019

$14.76

62

JET, SLOW (45) | OPT NOT SHOWN

09492-45032

$17.37

62

JET, SLOW (48) | OPT NOT SHOWN

09492-48013

$17.37

62

JET, SLOW (50) | OPT NOT SHOWN

09492-50023

$17.37

62

JET, SLOW (52) | OPT NOT SHOWN

09492-52011

$17.68

62

JET, SLOW (55) | OPT NOT SHOWN

09492-55017

$18.02

62

JET, SLOW (58) | OPT NOT SHOWN

09492-58001

$18.02

62

JET, SLOW (60) | OPT NOT SHOWN

09492-60016

Unavailable

63

NEEDLE, JET (NLCR) | OPT NOT SHOWN

13383-10H00

Unavailable

63

NEEDLE, JET (NLDR) | OPT NOT SHOWN

13383-10H10

Unavailable

63

NEEDLE, JET (NLCS) | OPT NOT SHOWN

13383-10H20

Unavailable

63

NEEDLE, JET (NLDS) | OPT NOT SHOWN

13383-10H30

Unavailable

63

NEEDLE, JET (NLCT) | OPT NOT SHOWN

13383-10H40

$22.75

63

NEEDLE, JET (NLDT) | OPT NOT SHOWN

13383-10H50

$22.75

63

NEEDLE, JET (NLCU) | OPT NOT SHOWN

13383-10H60

Unavailable

63

NEEDLE, JET (NLDU) | OPT NOT SHOWN

13383-10H70

Unavailable

63

NEEDLE, JET (NLCV) | OPT NOT SHOWN

13383-10H80

Unavailable

63

NEEDLE, JET (NLDV) | OPT NOT SHOWN

13383-10H90

Unavailable

64

HOLDER, JET NEEDLE | OPT

13220-35G00

$6.47
