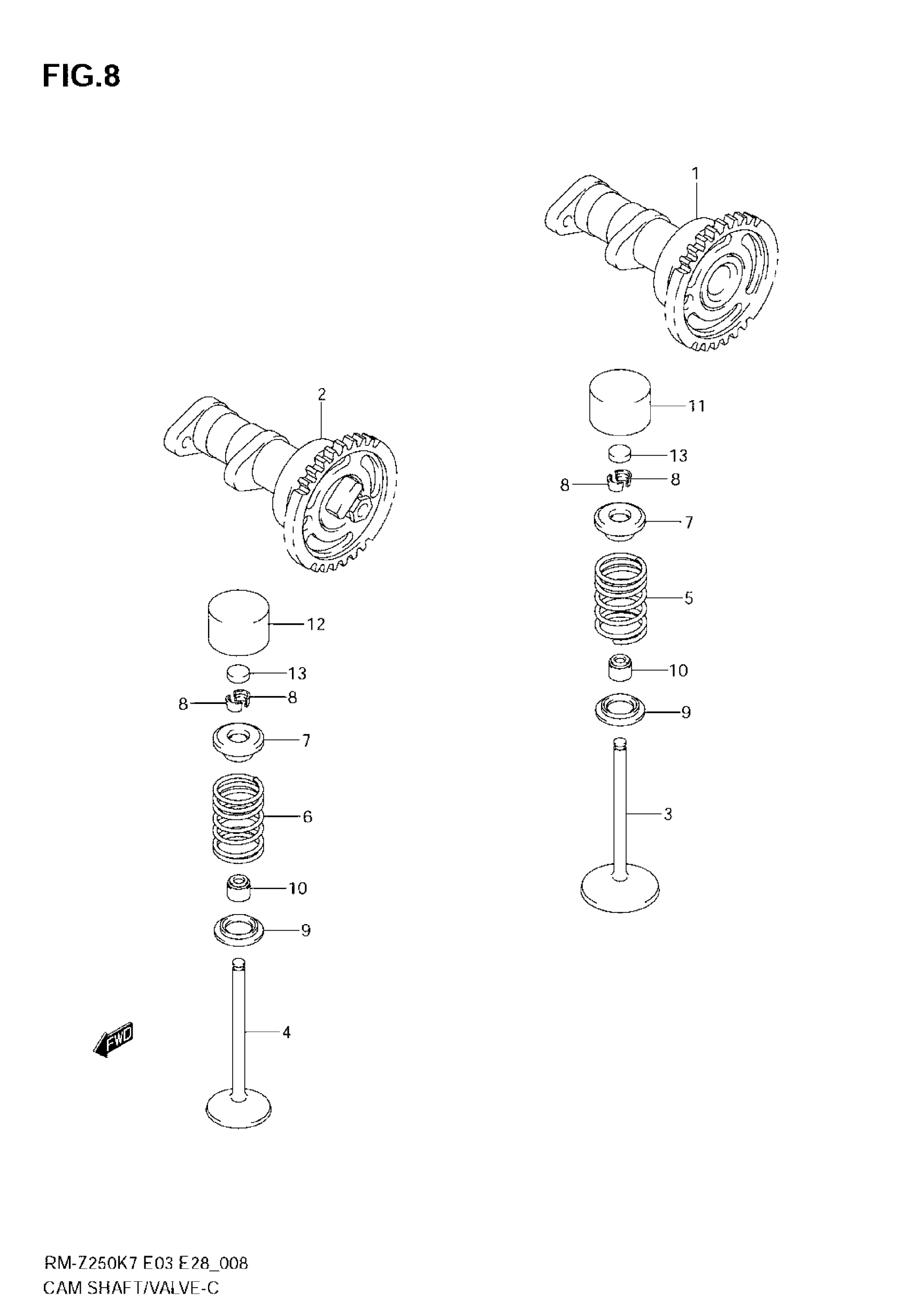

Suzuki RM-Z250 (2009) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-10H00

$560.26

2

CAMSHAFT, EXHAUST

12720-10H00

$709.06

3

VALVE, INTAKE

12911-10H00

$135.95

4

VALVE, EXHAUST

12912-10H00

$78.11

5

SPRING, INTAKE

12921-02H01

$13.69

6

SPRING, EXHAUST

12921-41G00

$13.36

7

RETAINER, SPRING INTAKE

12931-29G00

$15.16

8

COTTER, VALVE

12932-32C00

$2.03

9

SEAT, SPRING INTAKE

12933-29G00

$7.07

10

OIL SEAL (4.5X10X8)

09289-04002

$6.49

11

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

12

TAPPET, EXHAUST

12891-35F00

$61.70

13

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

13

SHIM, TAPPET (T:1.225)

12892-05C00-122

$8.88

13

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

13

SHIM, TAPPET (T:1.275)

12892-05C00-128

$8.45

13

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

13

SHIM, TAPPET (T:1.325)

12892-05C00-132

Unavailable

13

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

13

SHIM, TAPPET (T:1.375)

12892-05C00-138

Unavailable

13

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

13

SHIM, TAPPET (T:1.425)

12892-05C00-142

$11.83

13

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

13

SHIM, TAPPET (T:1.475)

12892-05C00-148

$11.83

13

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

13

SHIM, TAPPET (T:1.525)

12892-05C00-152

Unavailable

13

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

13

SHIM, TAPPET (T:1.575)

12892-05C00-158

$8.83

13

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

13

SHIM, TAPPET (T:1.625)

12892-05C00-162

$9.05

13

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

13

SHIM, TAPPET (T:1.675)

12892-05C00-168

$11.83

13

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

13

SHIM, TAPPET (T:1.725)

12892-05C00-172

$11.83

13

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

13

SHIM, TAPPET (T:1.775)

12892-05C00-178

$8.88

13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

13

SHIM, TAPPET (T:1.825)

12892-05C00-182

$9.08

13

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

13

SHIM, TAPPET (T:1.875)

12892-05C00-188

$11.83

13

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

13

SHIM, TAPPET (T:1.925)

12892-05C00-192

$11.83

13

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

13

SHIM, TAPPET (T:1.975)

12892-05C00-198

$11.83

13

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

13

SHIM, TAPPET (T:2.025)

12892-05C00-202

Unavailable

13

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

13

SHIM, TAPPET (T:2.075)

12892-05C00-208

Unavailable

13

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

13

SHIM, TAPPET (T:2.125)

12892-05C00-212

Unavailable

13

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

13

SHIM, TAPPET (T:2.175)

12892-05C00-218

$11.83

13

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET, TAPPET INC.REF.NO.13-1%13-41 (5PCS.EACH) & NO.15 | OPT NOT SHOWN; Includes Item(s) 15

12800-05850

Unavailable

15

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

Unavailable
