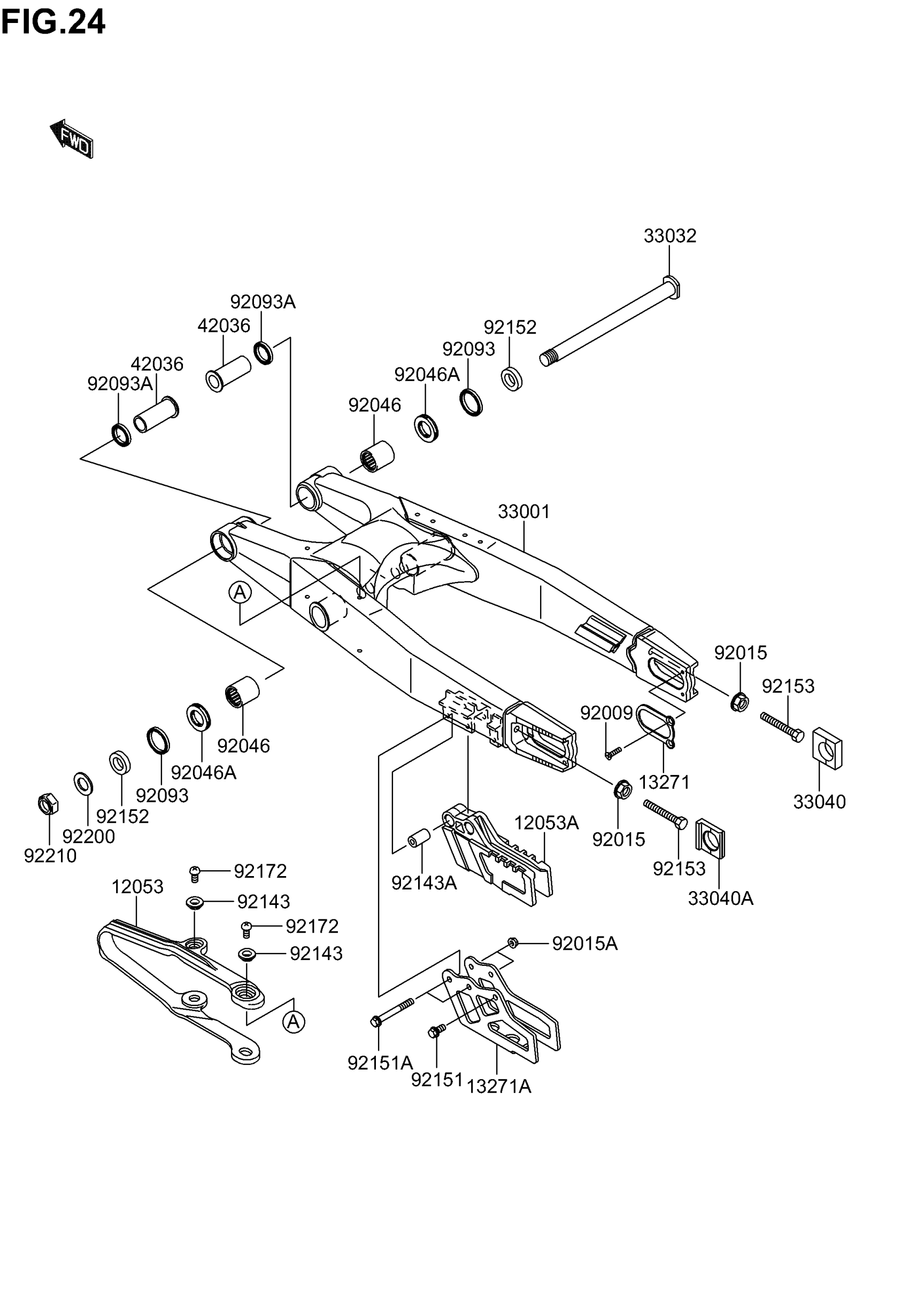

Suzuki RM-Z250 (2006) SWINGARM Diagram

#

Description
Price

12053

GUIDE-CHAIN,DRIVE,FR

K1205-30019

Unavailable

12053A

GUIDE-CHAIN

K1205-31468

$59.27

13271

PLATE,AXLE

K1327-11833

Unavailable

13271A

PLATE,CHAIN GUIDE

K1327-11834

Unavailable

33001

ARM-COMP-SWING,SILVER

KK330-01005-7CE

Unavailable

33032

SHAFT-SWING ARM

K3303-21189

Unavailable

33040

ADJUSTER,CHAIN, This part replaces K3304-00013.

K3304-00020

$12.52

33040A

ADJUSTER-CHAIN, This part replaces K3304-01189.

K3304-00075

$17.87

42036

SLEEVE,SWING ARM,L=46

K4203-60003

Unavailable

92009

SCREW,5X10

K9200-91828

Unavailable

92015

NUT,FLANGED,8MM

K9201-51014

$3.08

92015A

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.12

92046

BEARING-NEEDLE,TA2230Z

K9204-61174

Unavailable

92046A

BEARING-NEEDLE,NTBR22356E01

K9204-61240

Unavailable

92093

SEAL,SDO29X35X4.5

K9209-31434

$7.15

92093A

SEAL,SDO22X29X5

K9209-31435

$6.87

92143

COLLAR

K9214-31676

$4.73

92143A

COLLAR,6.5X14X24

K9214-31867

$5.17

92151

BOLT,6X12 This part replaces K9215-11133.

K132B-C0612

Unavailable

92151A

BOLT,6X50

K9215-11234

Unavailable

92152

COLLAR,17.1X29X7.5

K9215-21137

$5.73

92153

BOLT,8X56

K9215-30620

$2.54

92172

SCREW,5X8

K9217-20119

$1.49

92200

WASHER,17.2X30X2.3

K9220-00202

Unavailable

92210

NUT,LOCK,16MM

K9221-00179

Unavailable
