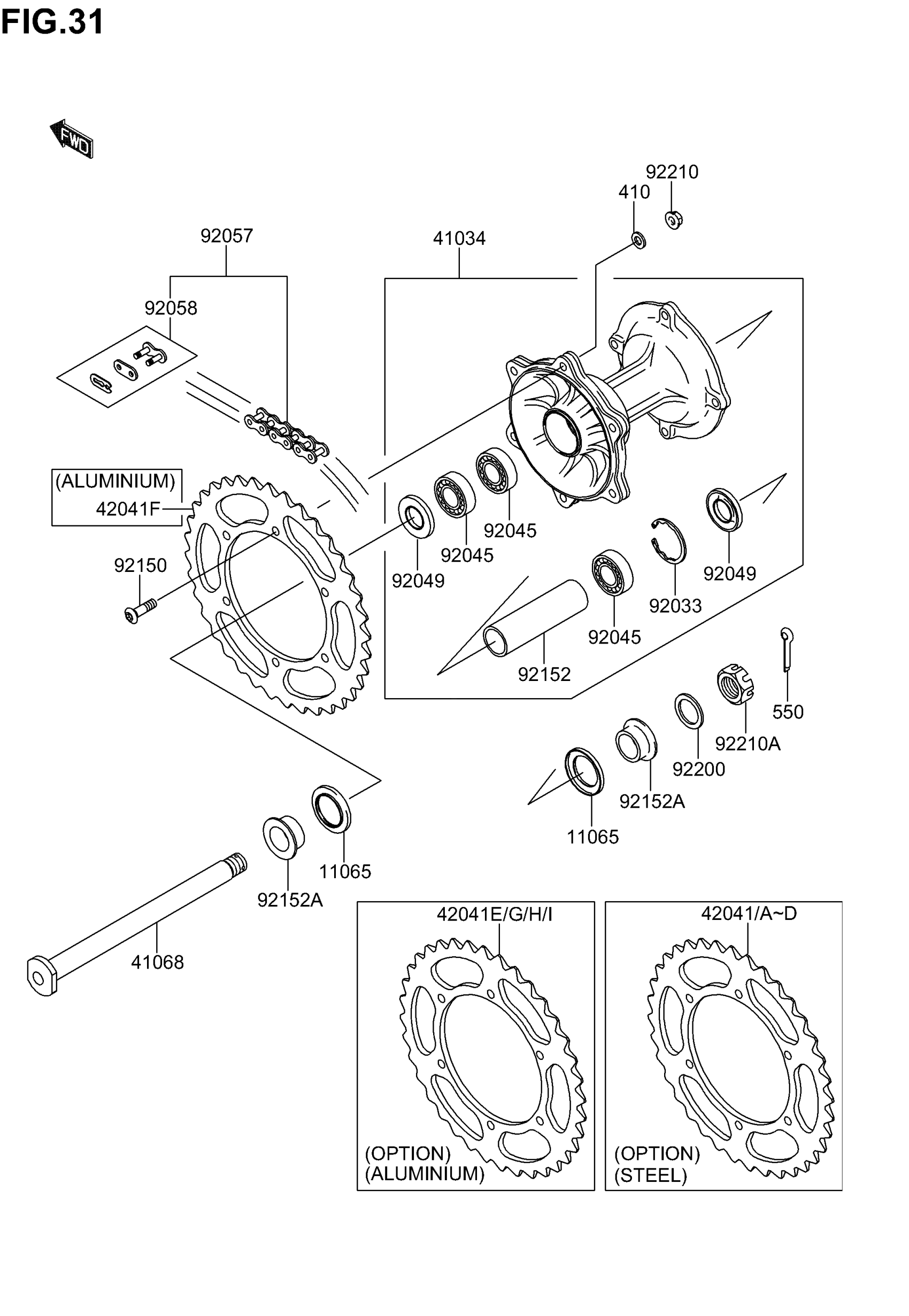

Suzuki RM-Z250 (2006) REAR HUB Diagram

#

Description
Price

11065

CAP,AXLE

K1106-51253

$5.33

41034

DRUM-ASSY,REAR BRAKE

K4103-40004

Unavailable

41068

AXLE,RR

K4106-81466

Unavailable

42041

SPROCKET-HUB,46T | OPTION

K4204-11381

Unavailable

42041A

SPROCKET-HUB,47T | OPTION

K4204-11382

Unavailable

42041B

SPROCKET-HUB,48T | OPTION

K4204-11383

Unavailable

42041C

SPROCKET-HUB,49T | OPTION

K4204-11384

Unavailable

42041D

SPROCKET-HUB,50T | OPTION

K4204-11408

Unavailable

42041E

SPROCKET-HUB,47T,AL | OPTION

K4204-11447

Unavailable

42041F

SPROCKET-HUB,48T,AL

K4204-11448

Unavailable

42041G

SPROCKET-HUB,49T,AL | OPTION

K4204-11449

Unavailable

42041H

SPROCKET-HUB,50T,AL | OPTION

K4204-11450

Unavailable

42041I

SPROCKET-HUB,46T,AL | OPTION

K4204-11501

Unavailable

92033

RING-SNAP,42MM

K9203-31041

Unavailable

92045

BEARING-BALL,69052RS

K9204-51446

$33.80

92049

SEAL-OIL

K9204-91614

$11.42

92057

NO DESCRIPTION AVAILABLE This part replaces K9205-71541.

K9205-70192

Unavailable

92058

JOINT-CHAIN,DRIVE

K9205-81074

Unavailable

92150

BOLT,SOCKET,8X28

K9215-01978

Unavailable

92152

COLLAR,REAR BRAKE DRUM,L=106.5

K9215-21427

Unavailable

92152A

COLLAR,RR AXLE, This part replaces K9215-21473.

K9215-21544

$27.50

92200

WASHER,22.5X35X2.3

K9220-01623

$1.49

92210

NUT,FLANGED,LOCK,8MM

K9221-00159

Unavailable

92210A

NUT,CASTLE,22MM

K9221-01411

$9.18

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

$1.49

550

PIN-COTTER,3.0X This part replaces KK550-D3035.

K550A-A3035

Unavailable
