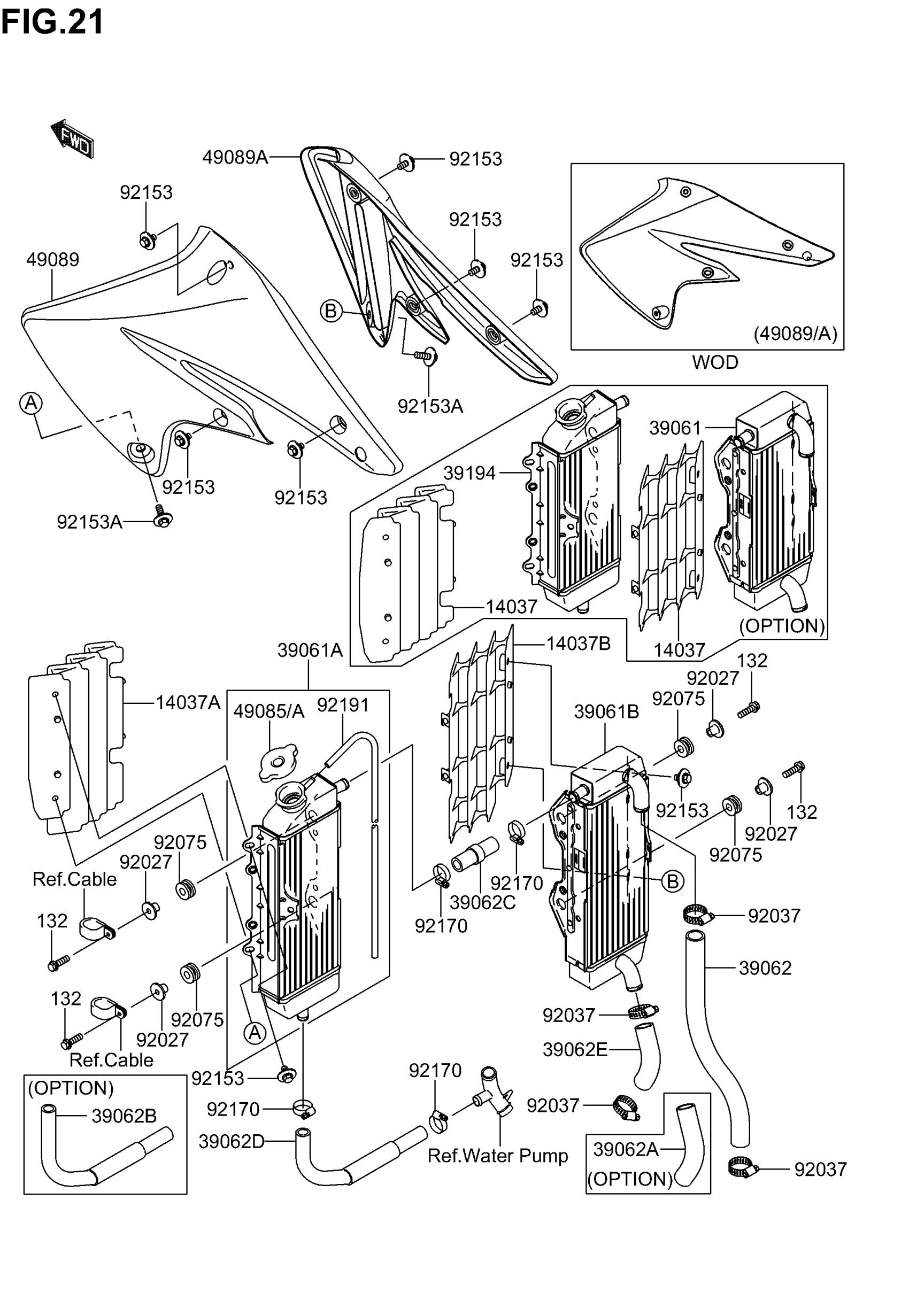

Suzuki RM-Z250 (2006) RADIATOR Diagram

SCREEN,WHITE | OPTION

KK140-37001-2RZ

$18.90

SCREEN,LH,WHITE

KK140-37002-9RZ

Unavailable

SCREEN,RH,WHITE

KK140-37003-0RZ

$23.17

RADIATOR-ASSY,RH,CORE:220MM | OPTION

K3906-10004

Unavailable

RADIATOR-ASSY,LH,CORE:260MM

K3906-10044

Unavailable

RADIATOR-ASSY,RH,CORE:260MM

K3906-10045

Unavailable

HOSE-COOLING,HEAD-RADIATOR RH

K3906-20012

Unavailable

HOSE-COOLING,CORE:220MM | OPTION

K3906-20040

Unavailable

HOSE-COOLING,CORE:220MM | OPTION

K3906-20041

$25.50

HOSE-COOLING,RADIATOR L-R HIGH

K3906-20044

Unavailable

HOSE-COOLING,RADIATOR LH-P/W

K3906-20076

Unavailable

HOSE-COOLING,RADIATOR RH-P/W

K3906-20082

Unavailable

RADIATOR-ASSY,LH,CORE:220MM | OPTION

K3919-40006

Unavailable

CAP-ASSY-PRESSURE,P1.1

K4908-51070

Unavailable

CAP-ASSY-PRESSURE,P1.6 | OPTION

K4908-51073

$46.88

SHROUD-ENGINE,LH,C.YELLOW

K4908-90022-267

Unavailable

SHROUD-ENGINE,RH,C.YELLOW

K4908-90023-267

Unavailable

COLLAR,L=11.1

KK920-27194

Unavailable

CLAMP,COOLING HOSE

K9203-71589

Unavailable

DAMPER

KK920-75209

$3.67

BOLT,6X12

K9215-30503

$2.45

BOLT,6X20

K9215-30864

$6.55

CLAMP

K9217-01283

Unavailable

TUBE,6X9X700

K9219-11211

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK132-L0620.

K132B-B0620

Unavailable
