2006 Suzuki RM-Z250 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2006 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

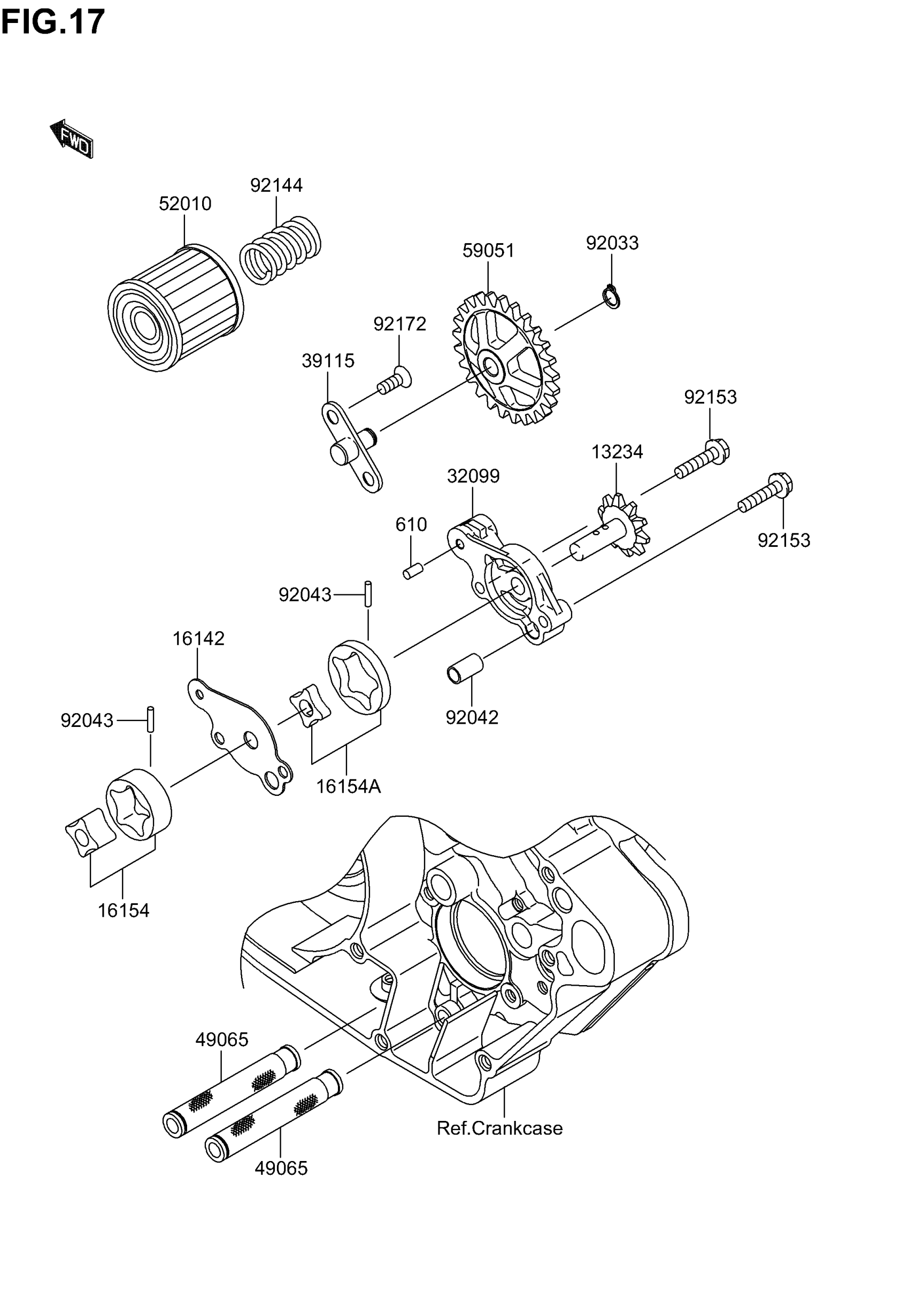

2006 Suzuki RM-Z250 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13234

SHAFT-COMP,OIL PUMP

K1323-40005

1
Out of stock

16142

COVER-PUMP

K1614-20003

1
Out of stock

16154

ROTOR-PUMP,SCAVENGE

K1615-40035

1
Out of stock

16154A

ROTOR-PUMP,FEED

K1615-40036

1
Out of stock

32099

CASE,OIL PUMP

K3209-90018

1
Out of stock

39115

SHAFT-IDLER,OIL PUMP

K3911-50007

1
Out of stock

49065

FILTER,OIL This part replaces K4906-50009.

K4906-50017

2
Out of stock

52010

ELEMENT-OIL FILTER

K5201-00001

1
Out of stock

59051

GEAR-SPUR,PUMP IDLER

K5905-10009

1
Out of stock

92033

RING-SNAP,8MM

K9203-31039

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

KK920-42007

1
Out of stock

92043

PIN,2.5X11.8

K9204-30018

2
Out of stock

92144

SPRING

K9214-41761

1
Out of stock

92153

BOLT,5X22

K9215-30749

2
Out of stock

92172

SCREW,6X14

K9217-20087

2
Out of stock

610

ROLLER,4X8

KK610-A0408

1
Out of stock
