2006 Suzuki RM-Z250 Crankshaft Diagram

← All diagrams

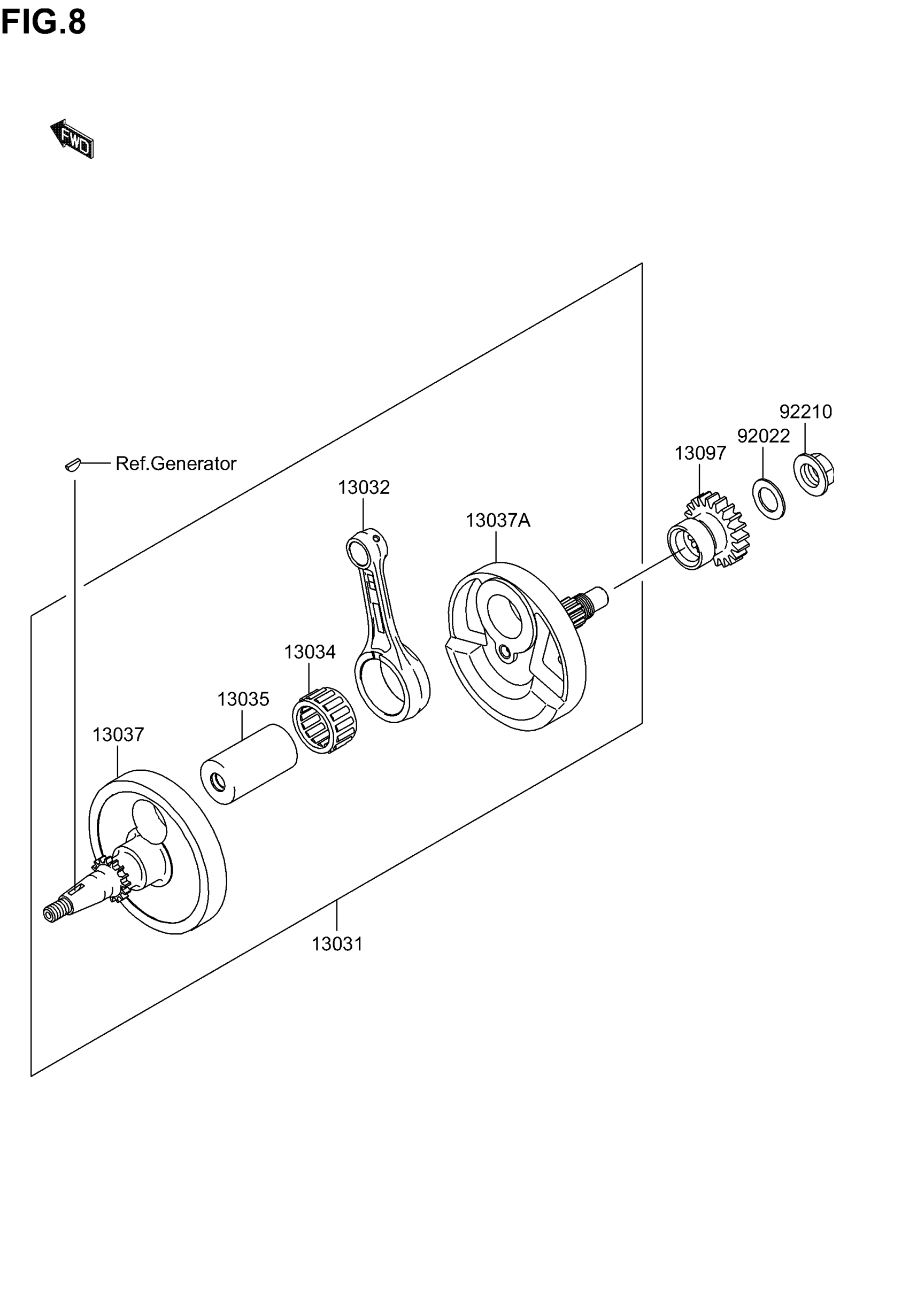

Find the part on the Crankshaft diagram for your 2006 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM-Z250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT COMP This part replaces K1303-10051.

K1303-10074

1
Out of stock

13032

ROD,CONNECTING This part replaces K1303-20003.

K1303-20047

1
Out of stock

13034

BEARING,BIG END This part replaces K1303-40007.

K1303-40014

1
Out of stock

13035

PIN,CRANK This part replaces K1303-50001.

K1303-50015

1
Out of stock

13037

NO DESCRIPTION AVAILABLE This part replaces K1303-70064.

K1303-75095

1
Out of stock

13037A

CRANKSHAFT,RH

K1303-70065

1
Out of stock

13097

GEAR,PRIMARY SP This part replaces K1309-70008.

K1309-70117

1
Out of stock

92022

WASHER,16.5X27X1.4

KK920-22054

1
Out of stock

92210

NUT,16MM

K9221-00069

1
Out of stock
