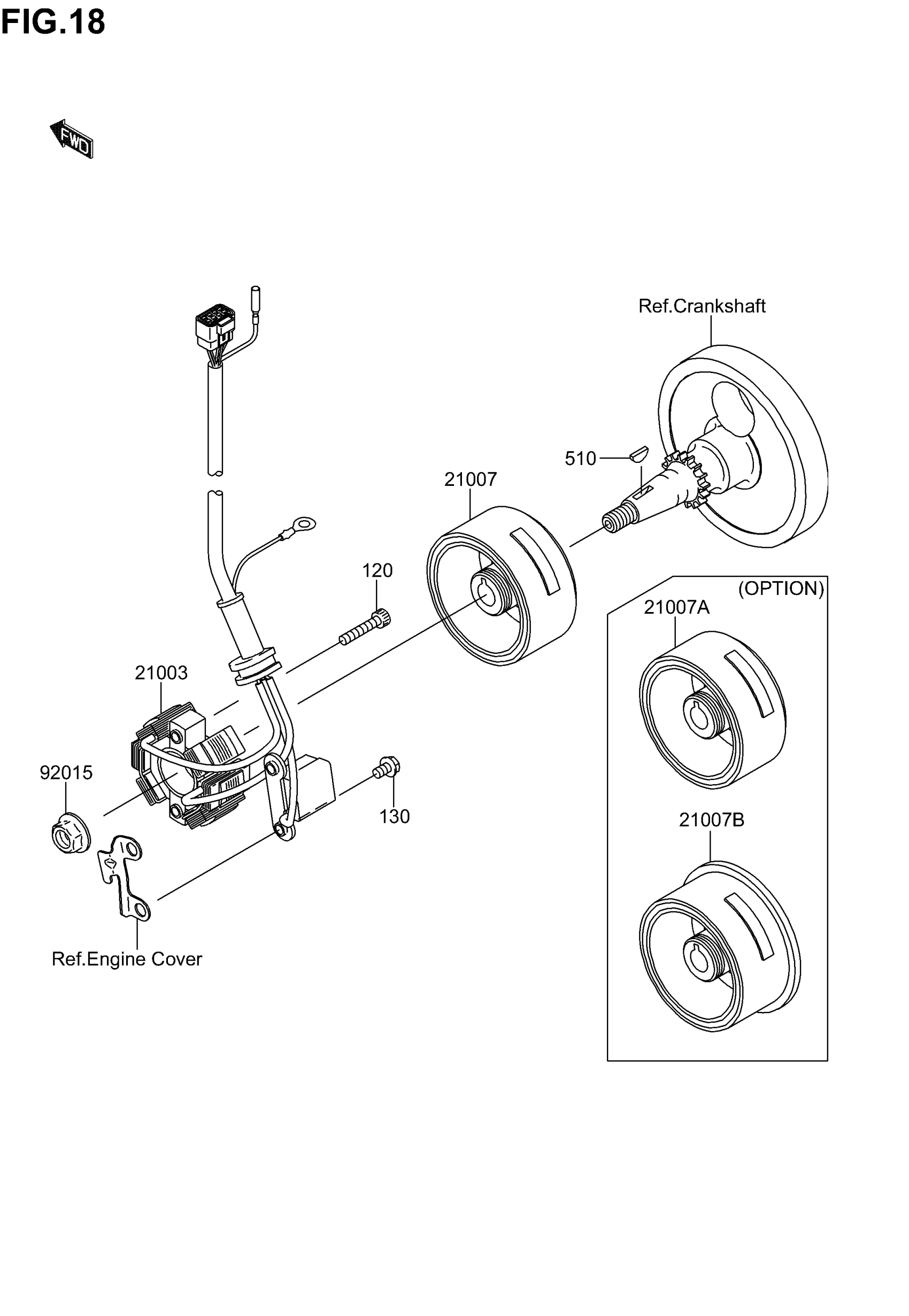

Suzuki RM-Z250 (2006) GENERATOR Diagram

#

Description

Price

21003

STATOR This part replaces K2100-30027.

K2100-30048

$493.12

21007

ROTOR,I=4.1

K2100-70070

Unavailable

21007A

ROTOR,I=3.6 | OPTION

K2100-70071

Unavailable

21007B

ROTOR,I=4.8 | OPTION

K2100-70072

Unavailable

92015

NUT,FLANGED,10MM

K9201-51428

$4.22

120

BOLT-SOCKET This part replaces KK120-P0525.

K120C-A0525

Unavailable

130

BOLT-FLANGED This part replaces KK130-P0510.

K130C-A0510

Unavailable

510

KEY-WOODRUFF

KK510-A3200

$4.82
