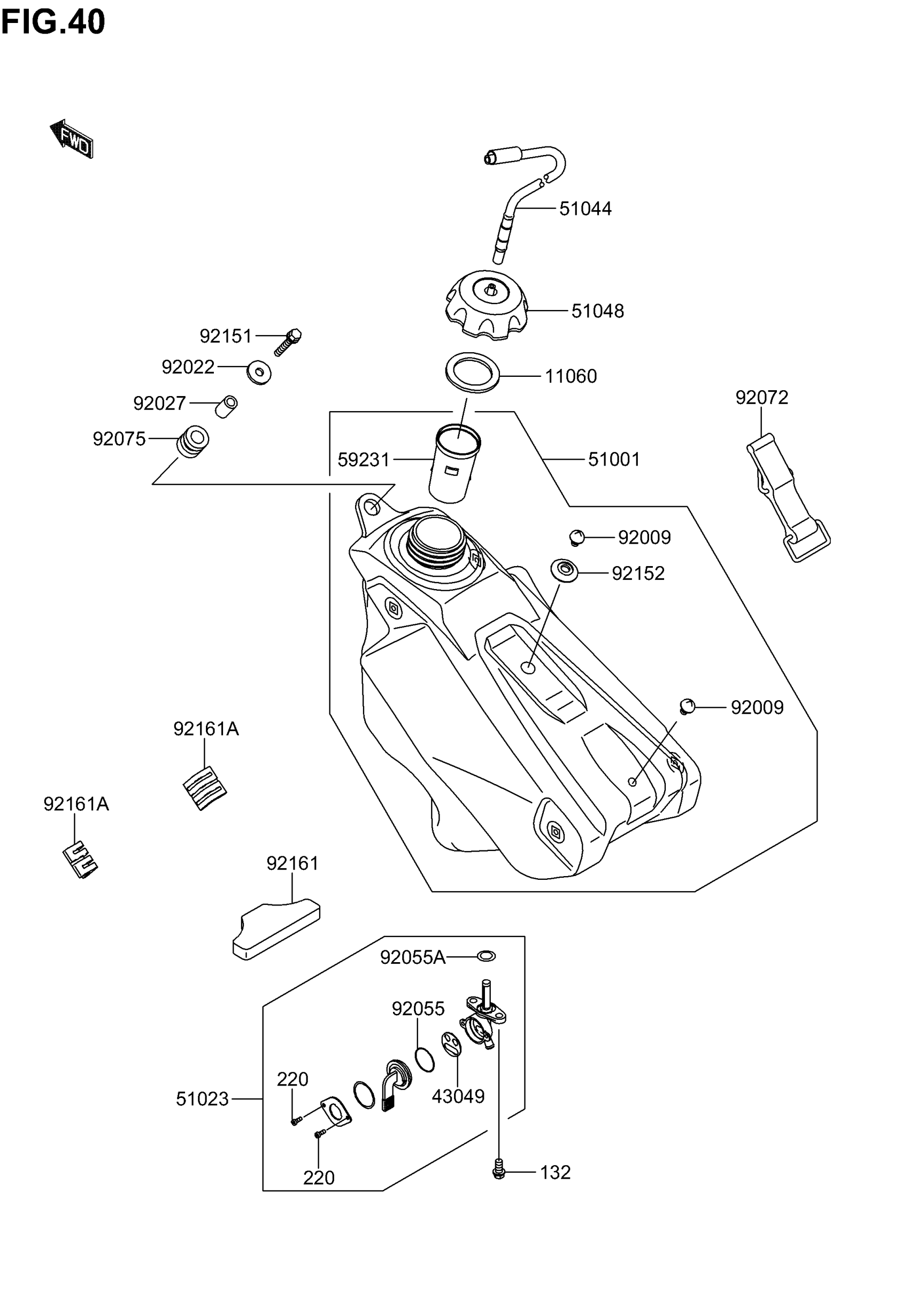

Suzuki RM-Z250 (2006) FUEL TANK Diagram

GASKET,FUEL TANK CAP

K1106-01340

$5.92

PACKING,TAP VALVE

K4304-91091

Unavailable

TANK-COMP-FUEL,F.BLACK

KK510-01002-06Z

Unavailable

TAP-ASSY,FUEL

K5102-30009

Unavailable

TUBE-ASSY,TANK CAP

K5104-40023

Unavailable

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

$47.02

FILLER

K5923-11096

$4.62

SCREW,6MM

K9200-91971

Unavailable

WASHER,6.5X24X2

K9202-21690

$3.15

COLLAR,6.8X10X14

K9202-71966

Unavailable

RING-O,TAP LEVER

K9205-51419

$4.00

RING-O,FUEL TAP PACKING

K9205-51700

Unavailable

BAND,FUEL TANK

K9207-21229

$8.59

DAMPER

K9207-51787

Unavailable

BOLT,FLANGED-SMALL,6X25

K9215-11930

$2.23

COLLAR

K9215-21346

Unavailable

DAMPER

K9216-10335

Unavailable

DAMPER,FUEL TANK,SIDE

K9216-11291

$4.62

BOLT,FLANGED,SM This part replaces KK132-L0612.

K132B-B0612

Unavailable

SCREW-PAN-CROS,3X8

KK220-B0308

Unavailable
