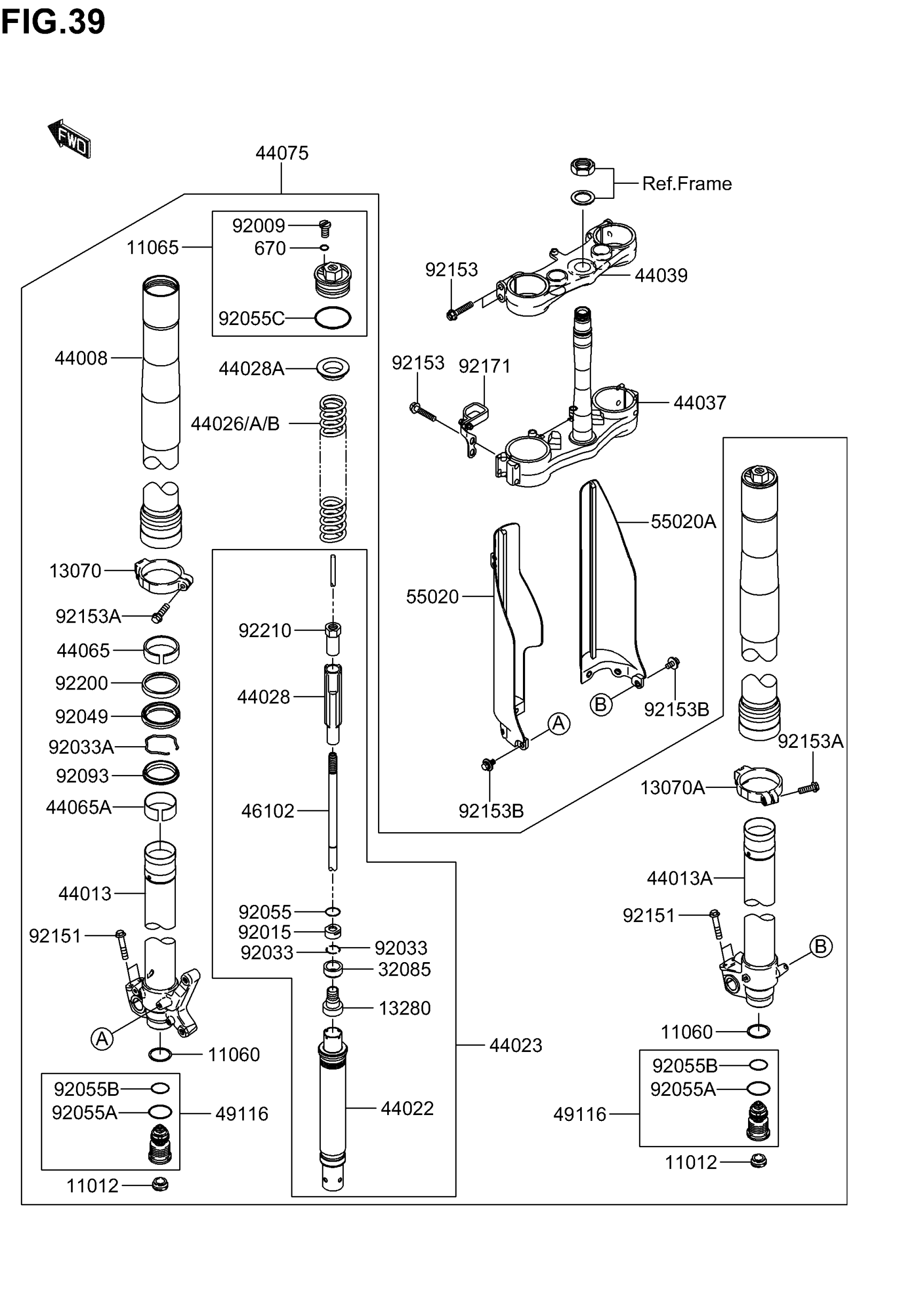

Suzuki RM-Z250 (2006) FRONT FORK Diagram

CAP

K1101-21692

Unavailable

GASKET

K1106-01707

Unavailable

CAP,FORK,TOP

K1106-51241

Unavailable

GUIDE,FORK,LH

K1307-00025

$22.03

GUIDE,FORK,RH

K1307-00027

$22.03

HOLDER

K1328-01127

Unavailable

STOPPER

K3208-51323

Unavailable

PIPE-FORK OUTER,BRONZE

KK440-08001-0JS

Unavailable

PIPE-FORK INNER,LH

K4401-30030

Unavailable

PIPE-FORK INNER,RH

K4401-30031

Unavailable

CYLINDER-FORK

K4402-20006

Unavailable

CYLINDER-SET-FORK

K4402-30025

Unavailable

SPRING-FRONT FORK,K=4.3N/MM | OPTION

K4402-60012

Unavailable

SPRING-FRONT FORK,K=4.4N/MM

K4402-60058

Unavailable

SPRING-FRONT FORK,K=4.5N/MM | OPTION

K4402-60059

Unavailable

GUIDE-FORK SPRING

K4402-80001

Unavailable

GUIDE-FORK SPRING

K4402-81104

Unavailable

HOLDER-FORK UNDER

K4403-70017

Unavailable

HOLDER-FORK UPPER,SILVER

KK440-39001-7X3

Unavailable

BUSHING-FRONT FORK

K4406-50006

$16.52

BUSHING-FRONT FORK

K4406-51140

$16.52

DAMPER-SET-FORK,BRONZE

KK440-75007-3JS

Unavailable

ROD,PISTON,ASSY

K4610-20064

Unavailable

VALVE-ASSY,FORK

K4911-60012

Unavailable

GUARD,FORK,LH,WHITE

KK550-20006-0RZ

$50.12

GUARD,FORK,RH,WHITE

KK550-20014-2RZ

Unavailable

SCREW

K9200-91884

$5.42

NUT

K9201-51805

Unavailable

RING-SNAP

K9203-31271

Unavailable

RING-SNAP

K9203-31329

Unavailable

SEAL-OIL

K9204-90056

$21.42

RING-O

K9205-51442

Unavailable

RING-O,FORK VALVE

K9205-51547

Unavailable

RING-O,FORK VALVE

K9205-51548

Unavailable

RING-O

K9205-51677

Unavailable

SEAL,FORK OUTER TUBE

K9209-31566

$15.67

BOLT,FLANGED,8X40

K9215-11877

Unavailable

BOLT,FLANGED,8X40

K9215-30484

Unavailable

BOLT,FLANGED,6X20

K9215-30689

Unavailable

BOLT,FLANGED,6X14

K9215-30936

$2.45

CLAMP,HOSE

K9217-10414

$20.52

WASHER

K9220-00067

Unavailable

NUT

K9221-01177

Unavailable

O RING,3MM

KK670-B1503

$3.22
