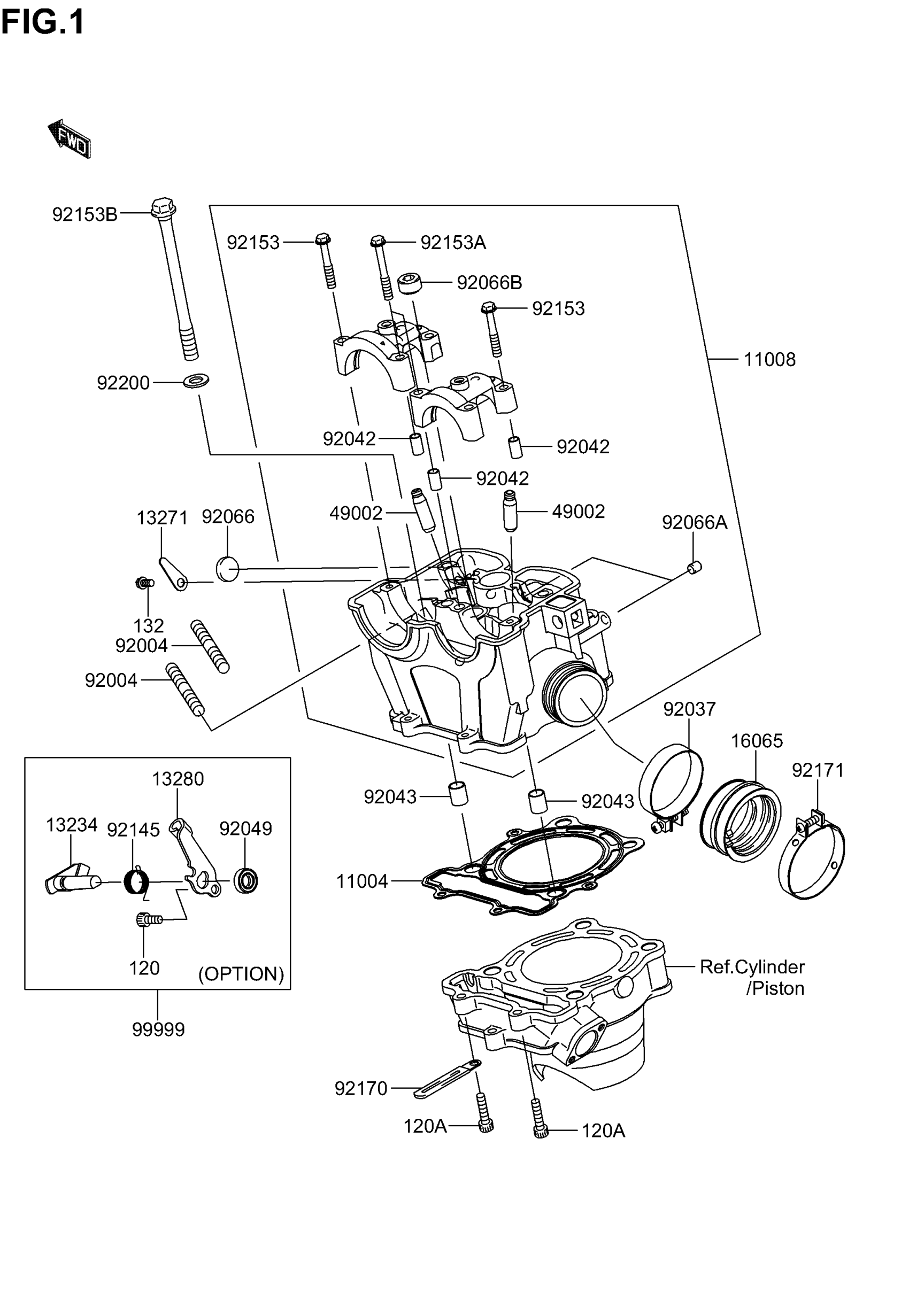

Suzuki RM-Z250 (2006) CYLINDER HEAD Diagram

GASKET,HEAD This part replaces K1100-40003.

K1100-40090

$36.25

HEAD-COMP-CYLINDER

K1100-80080

$894.83

SHAFT-COMP,DECOMP | OPTION

K1323-40009

Unavailable

PLATE

K1327-10675

$2.70

HOLDER,DECOMP | OPTION

K1328-00038

Unavailable

HOLDER-CARBURETOR

K1606-50012

$13.70

GUIDE-VALVE

K4900-20003

$14.78

STUD,8X22 This part replaces K9200-41249.

K9200-40025

$2.77

CLAMP

K9203-71523

$10.18

PIN,DOWEL,6.3X8X14

KK920-42007

$4.03

PIN,10.1X12X14

K9204-34009

$4.25

SEAL-OIL | OPTION

K9204-91196

Unavailable

PLUG,4X18

K9206-60024

$3.23

PLUG,OIL LINE,7.2X8

K9206-61012

Unavailable

PLUG,10X16.6

K9206-63777

Unavailable

SPRING | OPTION

K9214-50048

Unavailable

BOLT,6X38

K9215-30338

$2.23

BOLT,6X45

K9215-30339

$2.23

BOLT,10X122

K9215-30341

$11.00

CLAMP

K9217-01514

$3.75

CLAMP

K9217-10314

$2.70

WASHER,10.5X19X2.3

K9220-01339

$3.33

KIT.,MANUAL DECOMP | OPTION

K9999-90023

$51.32

BOLT-SOCKET,6X1 | OPTION This part replaces KK120-P0612.

K120C-A0612

$1.78

BOLT-SOCKET,6X2 This part replaces KK120-P0625.

K120C-A0625

$1.97

BOLT,FLANGED,SM This part replaces KK132-L0612.

K132B-B0612

Unavailable
