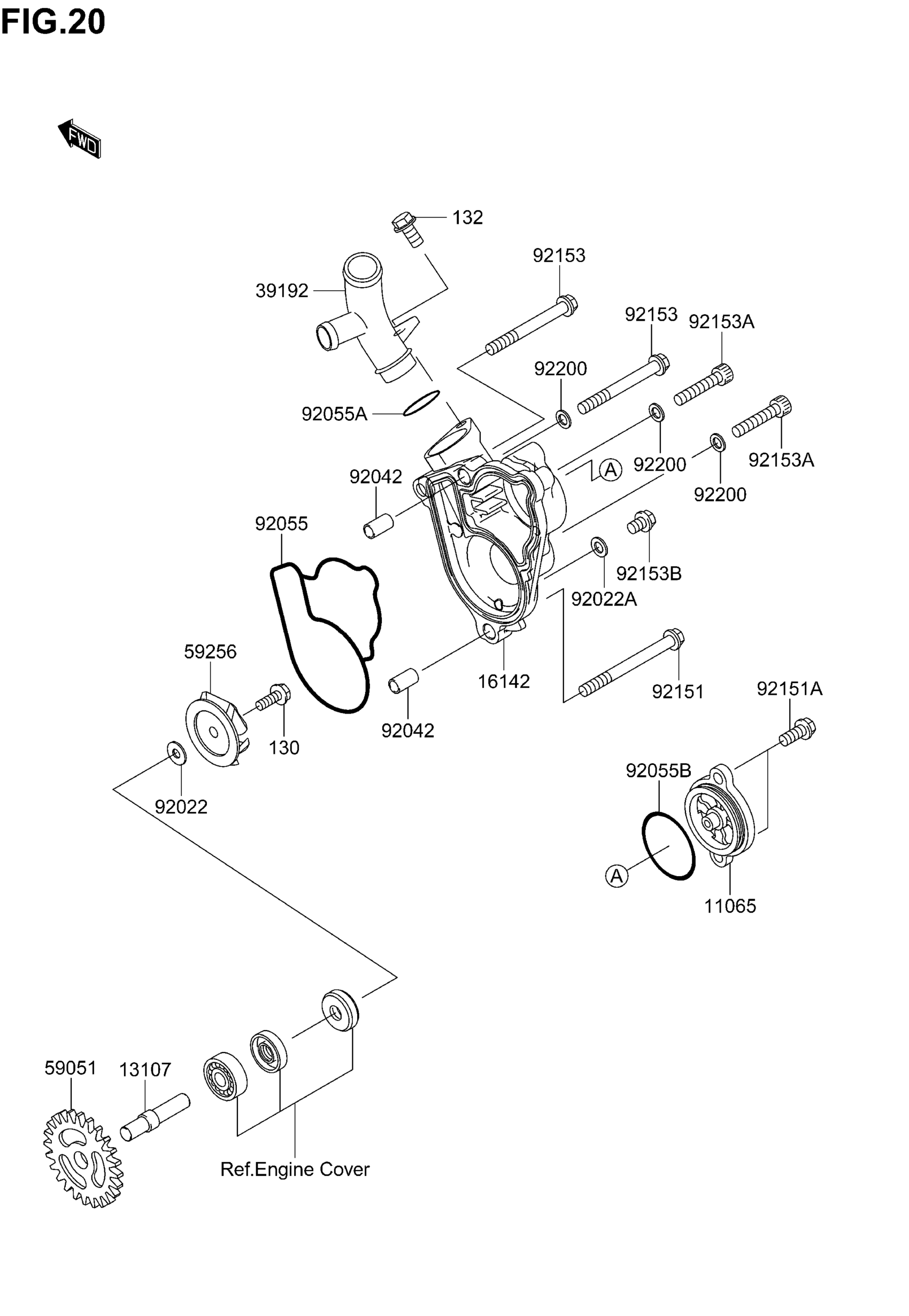

Suzuki RM-Z250 (2005) WATER PUMP Diagram

CAP

K1106-50087

Unavailable

SHAFT,WATER PUMP

K1310-70032

Unavailable

COVER-PUMP,WATER

K1614-20020

$152.73

PIPE-WATER

K3919-20037

$24.15

GEAR-SPUR,WATER PUMP

K5905-10010

Unavailable

IMPELLER

K5925-61065

$28.20

WASHER,5.2X13X1

K9202-21380

$3.33

WASHER,6.2X11X1

KK920-22304

$2.76

PIN,DOWEL,6.3X8X14

KK920-42007

$4.03

RING-O,WATER PUMP

K9205-50010

$5.33

RING-O,19MM

K9205-51308

$4.12

RING-O

KK920-55520

$5.38

BOLT,6X65 This part replaces K9215-11199.

K9215-30697

Unavailable

BOLT,6X14 This part replaces K9215-11423.

K132B-C0614

$1.49

BOLT,6X55

K9215-30696

$2.82

BOLT,6X30 This part replaces K9215-30844.

K120C-C0630

Unavailable

BOLT,6X8

K9215-30860

Unavailable

WASHER,6.1X10.0X1.0

K9220-00190

$2.15

BOLT-FLANGED This part replaces KK130-Z0514.

K130C-D0514

$1.49

BOLT,FLANGED,SM This part replaces KK132-L0612.

K132B-B0612

Unavailable
