2005 Suzuki RM-Z250 Rear Suspension Diagram

← All diagrams

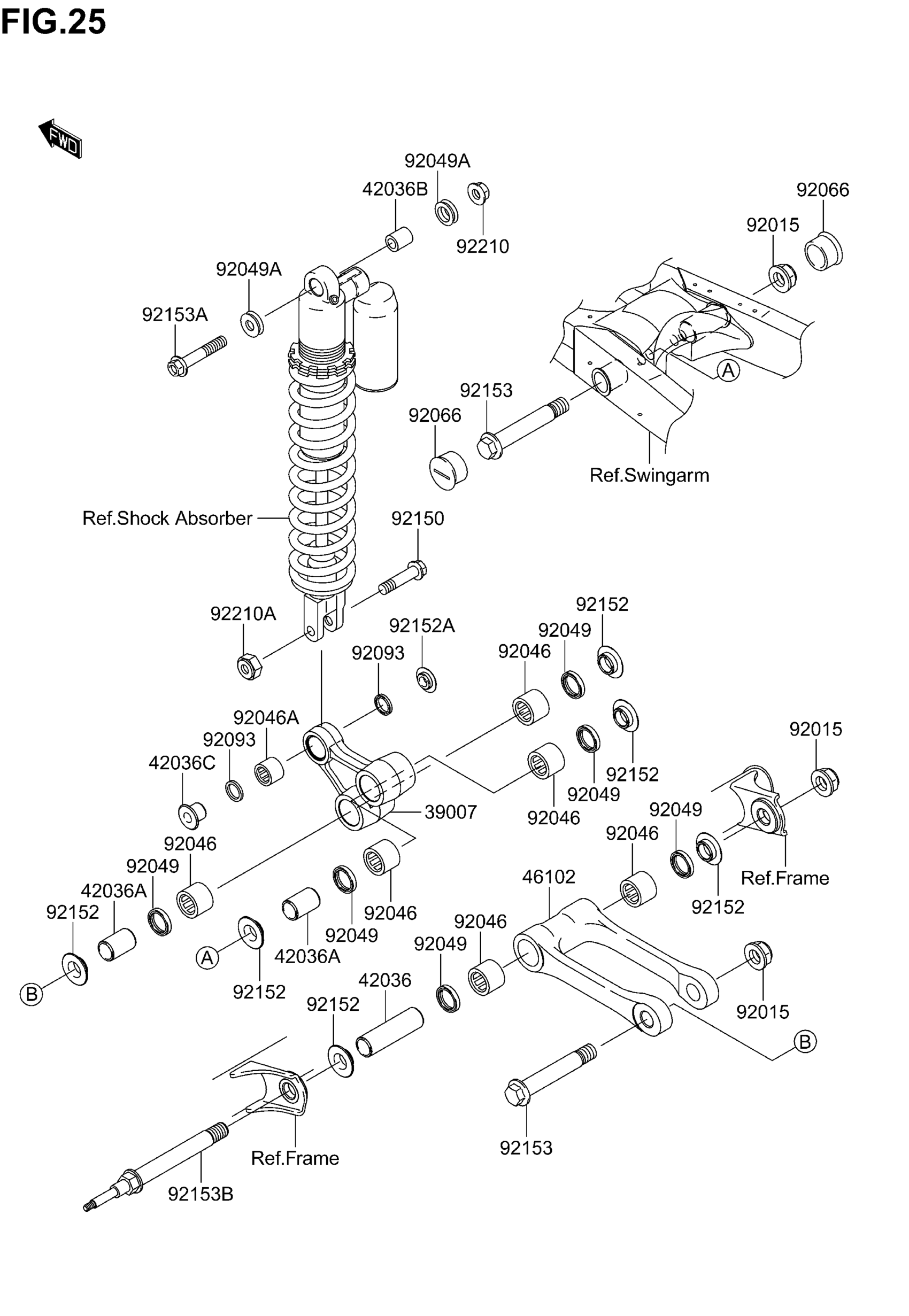

Find the part on the Rear Suspension diagram for your 2005 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki RM-Z250 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

K3900-70001

1
Out of stock

42036

SLEEVE,15X20X80

K4203-60014

1
Out of stock

42036A

SLEEVE,15X20X41.8

K4203-60015

2
Out of stock

42036B

SLEEVE,10X16X19

K4203-61248

1
Out of stock

42036C

SLEEVE

K4203-61351

1
Out of stock

46102

ROD,SUSPENSION

K4610-20044

1
Out of stock

92015

NUT,FLANGED,14MM

K9201-51401

3
Out of stock

92046

BEARING-NEEDLE,F-2016

K9204-61151

6
Out of stock

92046A

BEARING-NEEDLE,7E-HVS16X22X12

K9204-61301

1
Out of stock

92049

SEAL-OIL,HF020N3-A

K9204-90027

6
Out of stock

92049A

SEAL-OIL This part replaces K9204-91330.

K9204-90069

2
Out of stock

92066

PLUG,SWING ARM,F.BLACK

KK920-66002-66Z

2
Out of stock

92093

SEAL

K9209-31436

2
Out of stock

92150

BOLT,FLANGED,10X42

K9215-01571

1
Out of stock

92152

COLLAR

K9215-20108

6
Out of stock

92152A

COLLAR

K9215-21139

1
Out of stock

92153

BOLT,14MM,L=92

K9215-30429

2
Out of stock

92153A

BOLT,FLANGED,10X56

K9215-30828

1
Out of stock

92153B

BOLT,14MM,L=116

K9215-30874

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

K9221-01080

1
Out of stock

92210A

NUT,LOCK,10MM

K9221-01184

1
Out of stock
